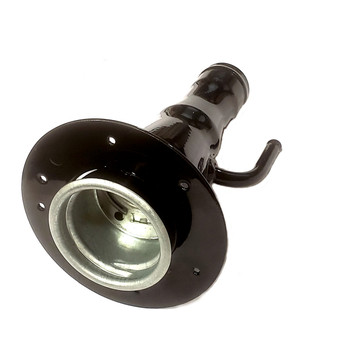

1-1/8" W/5/16" Vent) Bed Delete / Flatbed Retrofit Filler Neck GAS ENGINE

1-1/8″ W/5/16″ Vent) Bed Delete / Flatbed Retrofit Filler Neck GAS ENGINE

Original price was: $69.70.Current price is: $20.91.

SKU: GM181B Category:

Description

These are our house version of our GM181 previously sold. These are American made with thicker metal and powder coated body for long lasting service life. For gas engines and applications that utilize a 1-1/8″ main gas tank hose and 5/16″ vent.
Uses Cap:  Non Locking PN 31833 and Locking PN 31870 (Click Here = new window pops up)
Coating:  Powder Coat (Black)
Main Pipe Diameter:  1-1/8″ (OD)
Vent Line Diameter   5/16″ (OD)
Fuel Type:  Gasoline
Length From Back Of Flange:  5-5/8″ At Main Pipe) X (4-1/2″ At Vent Pipe.
Bolt Hole Pattern:  Standard GM, Ford, Dodge (Is mountable Upside Down Or Right Side Up to place vent on ether side!
 Applications:  Bed Delete, Cab & Chassis, Work Truck, Flat Bed, Utility Body, Box Truck, Custom
Flange Max Diameter:  4″ At Max (Round)
NOTE:  Can Also Be Used On Ford And Dodge Applications With Light Modifications To Mounting Flange .
NOTE:  Holes may need to be drilled in flange or housing to adapt to your custom application.
RELATED REDUCER:  B07 Reducer (Allows You To Use 1-1/4″ I.D. Hose All The Way To The Fuel Tank) Click Here
RELATED ITEMS:  SEE OTHER RELATED ITEMS AT BOTTOM OF THIS WEB PAGE.
