Description

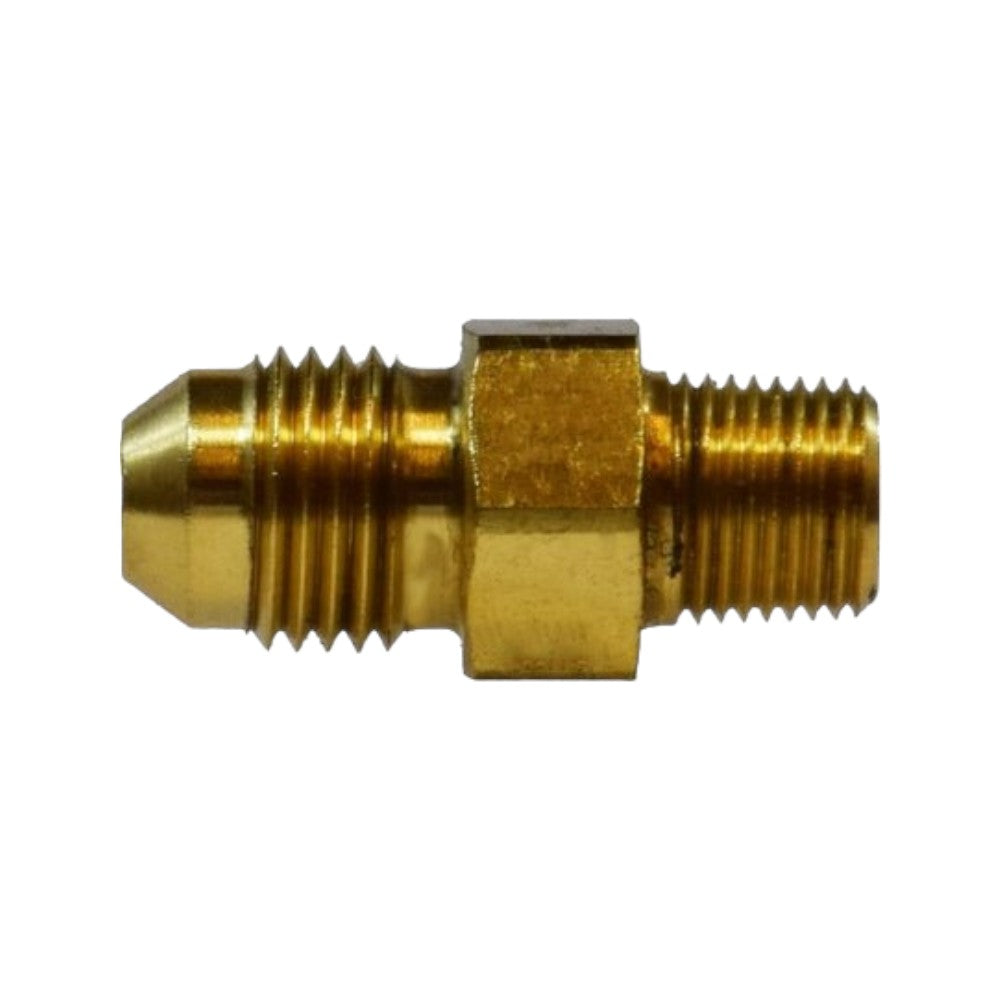

Brass straight adapter that joins a -5 male JIC 37° flare end (1/2-20 UNF, 5/16″ tube) to a 1/4″ male NPT pipe thread. The Midland Industries 28705 lets a 5/16″ hydraulic / gauge tube terminate into a 1/4″ NPT port on truck wet-kits, fuel-pump test ports, and pneumatic-to-hydraulic manifold transitions.
Specifications
| Manufacturer | Midland Industries |
|---|---|
| Part Number | 28705 |
| Part Type | JIC to NPT Male-Male Adapter (Straight) |
| JIC End | -5 male, 1/2-20 UNF, 37° flare seat (5/16″ tube) |
| Pipe End | 1/4″ Male NPT |
| Hex | 0.56 in |
| Length (L) | 1.42 in |
| Material | Brass |
| Working Pressure | 3,250 PSI |
| Standards | SAE J514 (JIC 37°) / SAE J476 (NPT) |
Applications
Used as a JIC-to-pipe transition on:
- Heavy-truck hydraulic gauge and tap lines
- Wet-kit, dump-body, and PTO pump test ports
- Brass pneumatic and low-pressure fluid manifolds
Use a thread sealant rated for the working fluid on the NPT end; the JIC end seals on the metal flare and requires no sealant.
