Description

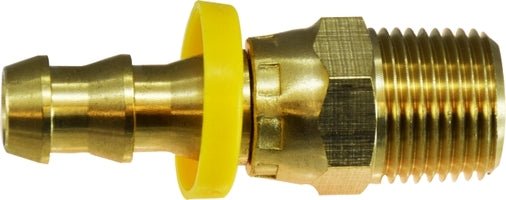

Midland Industries MM-30389 is a brass push-on hose barb x male npt (mip) swivel adapter that mates 1/2″ hose ID push-on (SAE 100R6 style) hose to a 1/2″ MNPT swivel connection. Replaces AMC 07202-0808 and is used on auxiliary air, oil-return, fuel-return, coolant-overflow, and other low- to medium-pressure hose lines throughout heavy-duty Class 6–8 trucks and trailers.
Specifications
| Manufacturer | Midland Industries |
|---|---|
| Part Number | MM-30389 |
| Part Type | Brass Push-On Hose Barb x Male NPT (MIP) Swivel Adapter |
| Thread | 1/2″ MNPT swivel |
| Tube/Hose Size | 1/2″ hose ID |
| Configuration | straight swivel adapter |
| Material | Brass |
Cross References
This part replaces or is equivalent to the following part numbers:
- Anderson Metals (AMC): 07202-0808
- McMaster-Carr: 91465K57
- Also known as: 29PO9-88, 301S-88, 725SW-8D, 725SW8D, PMS-8-8
Applications
Light- to medium-pressure pneumatic, vacuum, and low-pressure fluid-transfer hose assemblies — auxiliary air, oil drain, coolant overflow, fuel return, and DEF lines on heavy-duty trucks and equipment.
Representative platforms:
Universal fitment for any heavy-duty truck, trailer, or off-highway equipment using SAE 100R6 push-on style hose with matching ID. Common on Freightliner, Kenworth, Peterbilt, Mack, Volvo, International, and Western Star Class 8 platforms.
Verify your fitting size, thread type, and application pressure rating before ordering to confirm fitment.
