Description
| Name | Part Number |
|---|---|
| Parker | PMRT-4-2 |
| Tectran | 0402-RT |
| Phillips | MRT0402 |
| Velvac | 032270 |
| World American | WA01-6235 |
| Attribute | Value |
|---|---|
| Product Type | Pneumatic Push-to-Connect Fitting |

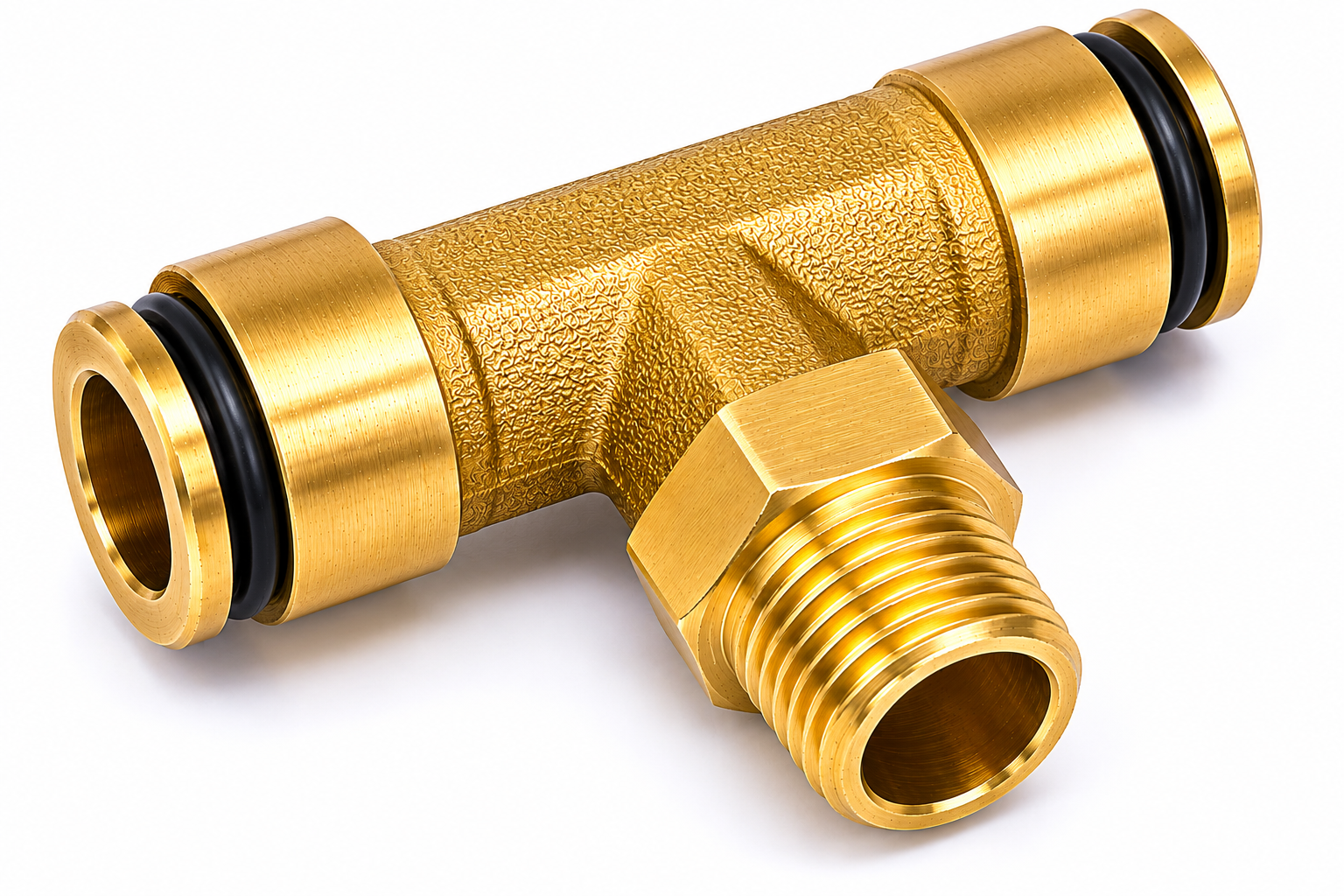

| Fitting Style | Male Run Tee |
| Configuration | Tee Connector |
| Tube Outer Diameter | 1/4 Inch |
| Male Thread Size | 1/8 Inch |
| Thread Type | Male NPT |
| Connection Style | Push Lock Connect |
| Body Material | High-Grade Brass |
| Seal Material | Nitrile Rubber |
| Operating Media | Compressed Air |
| Working Pressure Range | Up to 150 PSI |
| Operating Temperature Range | -40°F to 200°F |
| Corrosion Resistance | Excellent |
| Vibration Resistance | High |
| Leak Protection | Leak-Resistant Design |
| Installation Type | Tool-Free Push-to-Connect |
| Flow Configuration | Multi-Directional Flow |
| Reusable | Yes |
| Application Type | Pneumatic & Air Brake Systems |
| Compatible Tubing | Nylon & Polyurethane Tubing |
| Industrial Standards | DOT Compliant |
| Finish | Natural Brass Finish |
| Maintenance Requirement | Low Maintenance |
| Weight | 0.12 LB |
