Description
| Name | Part Number |
|---|---|
| Parker | 66NBH86 |
| Euclid | E8623 |
| Automann | 177.4026 |
| Velvac | 017098 |
| Sloan | S608 |
| Attribute | Value |
|---|---|

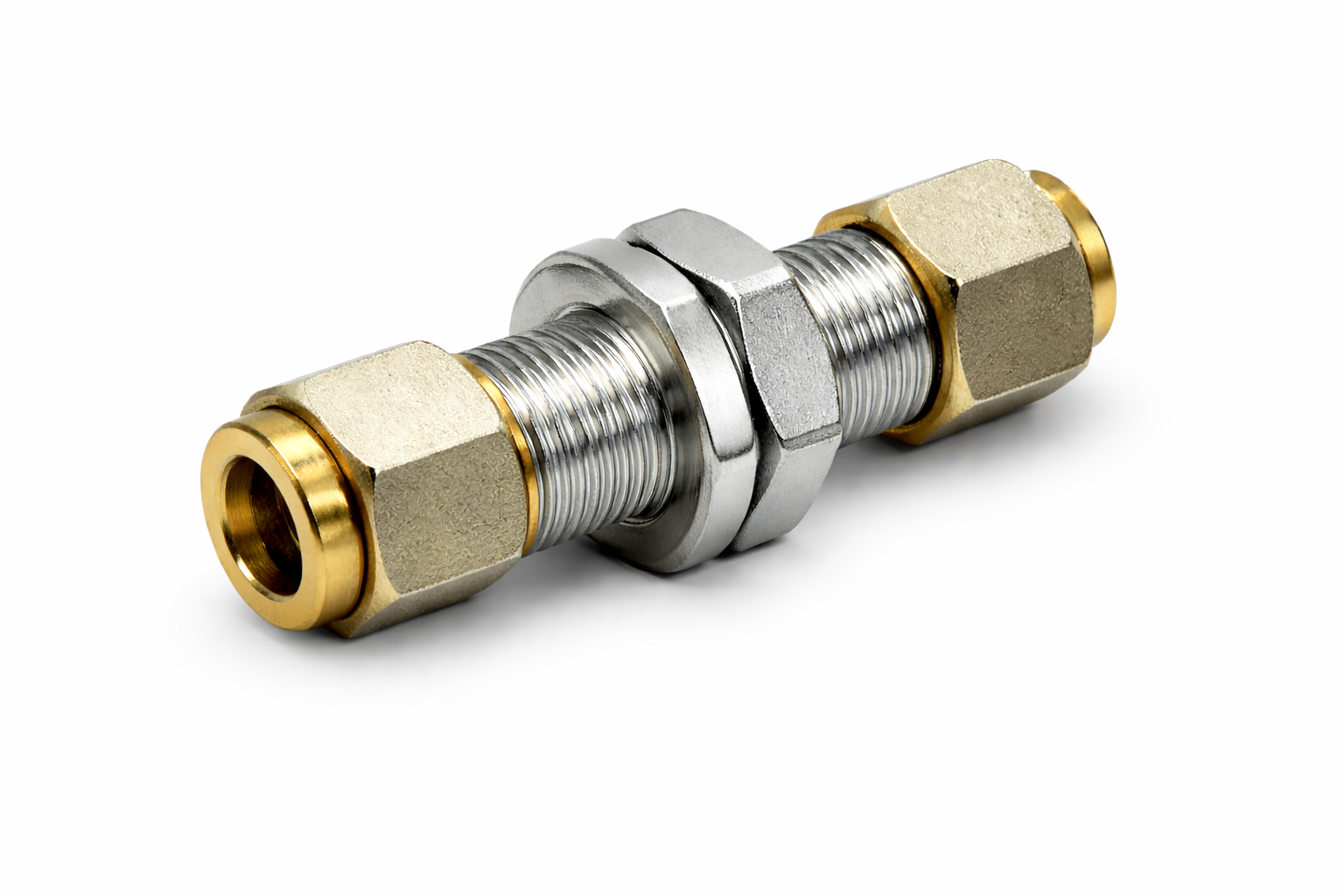

| Fitting Type | Bulkhead Compression Union |
| Tube Size (OD) | 1/2 Inch |
| Inner Pipe Size | 3/8 Inch |
| Thread Size | 7/8″-20 UNF |
| Overall Length | 1-15/16 Inch |
| Mounting Type | Panel / Bulkhead Mount |
| Connection Type | Compression (Double Ferrule) |
| Material | Zinc-Plated Steel / Brass |
| Finish | Corrosion Resistant Coating |
| Pressure Rating | Up to 300 PSI (Typical Air Systems) |
| Temperature Range | -40°F to +212°F |
| Compatibility | Nylon Air Brake Tubing |
| Seal Type | Compression Ferrule Seal |
| Installation | Through-panel mounting with locknut |
| Application | Air brake systems, pneumatic lines |
| Standards | SAE Air Brake Compatible |
| Vibration Resistance | High |
| Weight | 0.6 LB |
