Description
| Name | Part Number |
|---|---|
| Automann | 179.1039 |
| Phillips | 16-724 |
| Phillips | 16724 |
| Tramec | 38298 |
| Tectran | 670P75 |
| Tectran | 670P-75 |
| Phillips | PHI16-724 |
| Phillips | PHM16-724 |
| Phillips | PHL16-724 |
| PDC | PHI16-724 |
| Haldex | BE23709M1D |
| Haldex | 421121 |
| Attribute | Value |
|---|---|

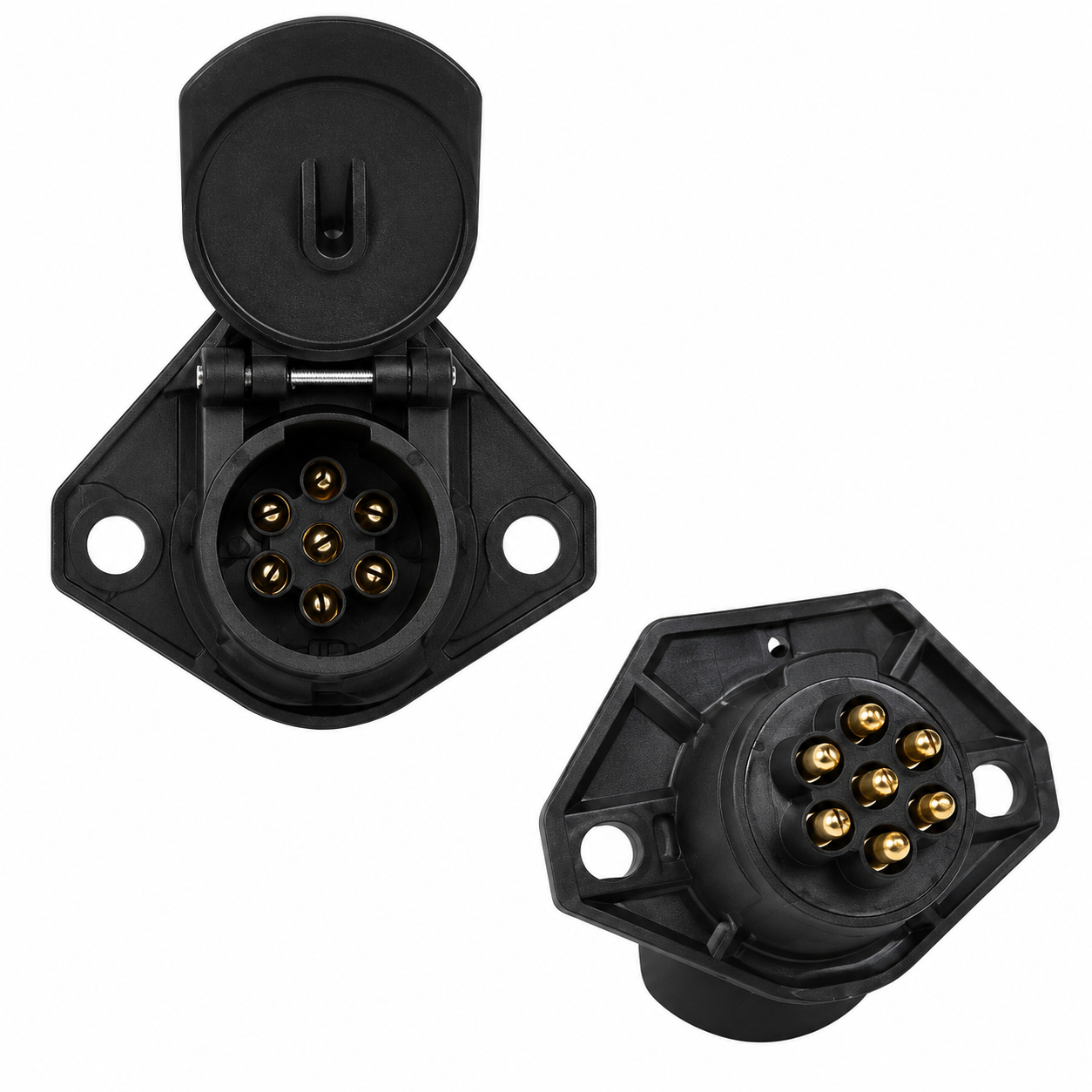

| Product Type | 7-Way Trailer Socket |
| Connector Type | Female Trailer Receptacle |
| Number of Pins | 7 |
| Pin Type | Split Pin |
| Terminal Type | Bullet Terminal |
| Bullet Connector Size | 0.180 in |
| Mounting Type | 2-Hole Mount |
| Housing Material | Nylon |
| Housing Type | Molded Heavy-Duty Housing |
| Flange | Integrated Sealing Flange |
| Hinge Pin | Stainless Steel |
| Spring | Stainless Steel |
| Lid | Protective Hinged Lid |
| Electrical Standard | SAE J560 |
| Wiring Application | Standard ABS Wiring System |
| Electrical Application | Trailer Lighting & Auxiliary Circuits |
| Connection Type | Bullet Terminal |
| Moisture Resistance | Yes |
| Corrosion Resistance | Yes |
| Weather Resistance | Yes |
| Socket Boot Compatibility | Phillips 15-740 |
| Quick-Change Harness Compatibility | Phillips QCS2 |
| Application | Trailer Electrical System |
| Vehicle Type | Heavy-Duty Truck & Trailer |
| Mounting Holes | 2 |
| Package Quantity | 1 |
| Unit of Measure | Each |
| Weight | Approx. 0.30 lb |
