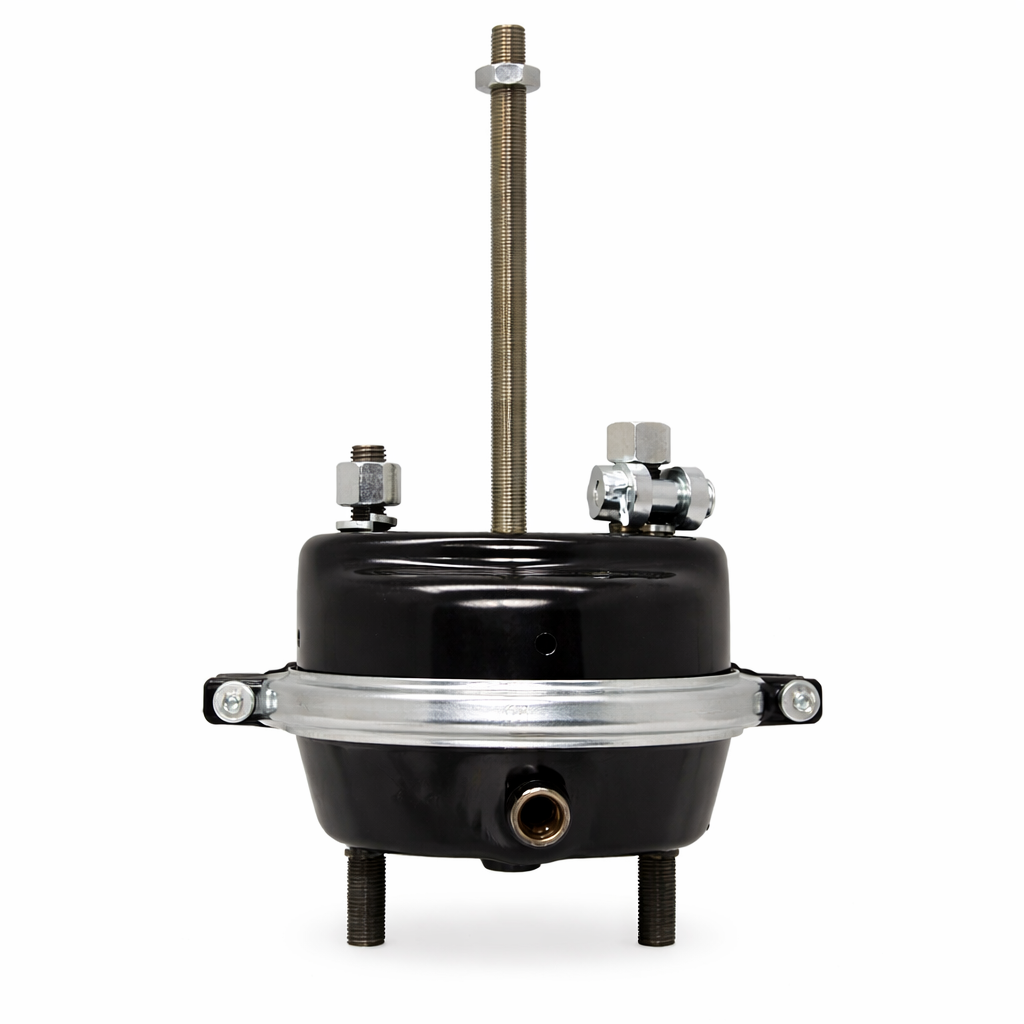

Description
| Name | Part Number |
|---|---|
| Bendix | SC24LS |
| Haldex | 2424LS |
| Midland | KN24000LS |
| TSE Brakes | SC24XL |
| Attribute | Value |
|---|---|
| Type | Air Brake Service Chamber |
| Chamber Size | Type 24 |
| Stroke Type | Long Stroke |
| Stroke Length | 2.25 Inches |
| Operation Type | Service Brake Chamber |
| Housing Material | Heavy-Duty Steel |
| Diaphragm Material | Reinforced Rubber |
| Clamp Type | Clamp Ring Assembly |
| Push Rod Type | Threaded Steel Rod |
| Mounting Type | Stud Mount |
| Port Size | 1/4″ NPT |
| Operating Pressure | Up to 150 PSI |
| Temperature Range | -40°F to 180°F |
| Finish | Corrosion-Resistant Coating |
| Application Environment | Heavy-Duty / Outdoor Use |
| Compatibility | Truck & Trailer Air Brake Systems |
| Compliance | SAE / DOT Standards |
| Pack Quantity | 1 Unit |
| Weight | 7.50 LB |
