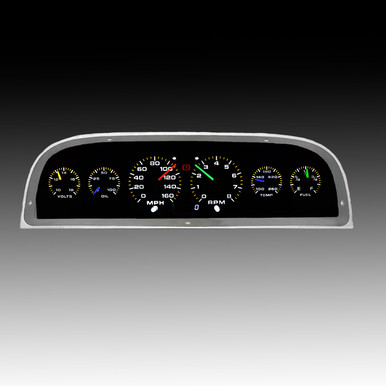

Description
Features:
Speedometer
- High speed recall
- 0-60 MPH time
- 1/4 mile elapsed time recall
- Reads up to 160 MPH
- Odometer and trip meter
- Calibrate to adjust for different tire sizes, wheel sizes, and gear ratios
- Electronic speed sensor included, please select option for your vehicle
Tachometer
-
Reads from 0 to 8000 RPM in 100 RPM increments
-
Selectable for 8-6-4-cylinder engines
*If using with an LS engine you may also need the Intellitronix LS swap kit (8014LS)
Fuel
- reads in percentage (empty-full) 0-100% range in 1% increments
- Ohm ranges include:
- 0-30 ohm
- 0-90 ohm
- 240-33 ohm
- 40-250 ohm
Water Temperature Gauge
-
Reads from 100 to 260°F
-
Sending unit included
Voltmeter
-
Reads 10.0 – 18.0 volts
-
No sender required
Oil Pressure Gauge
-
Reads from 0–100 psi
-
Includes sending unit
Indicators
-
Turn signal indicators
-
High beam indicator
-
Parking brake indicator
-
Check Engine Light
Other Features:
- Automatic night time dimming (50%)
BEZEL NOT INCLUDED
Optional add ons:
GPS Speedometer Sending Unit (S9020): Accurate readings with a simple 3-wire hookup. Works with 4000, 8000, or 16000 PPM speedometers. Use to bypass vehicle transmission or computer, picks up speed from satellite signal
Universal Gauge Harness (QCWH20): 8′ harness includes color-coded wires, quick-connects for easy removal, and all hardware needed for gauge wiring. Please note this does not plug into the factory harness
LS Swap Kit (8014LS): Required for GM LS engines, includes 12mm & 16mm bushings and a 10K-1/2 watt resistor to boost tach signal
