Description

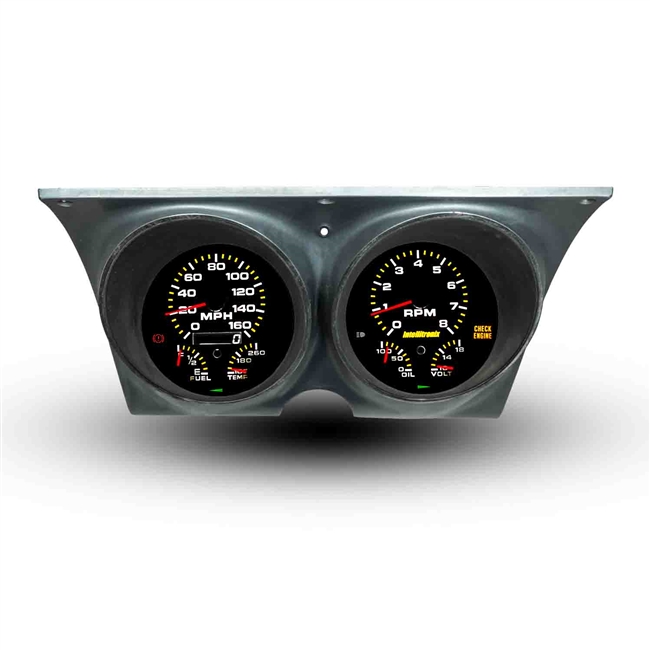

1967 – 1968 Camaro Analog Dash Instrument Cluster Gauges System, Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, Fuel.
***Outer Main Black Housing Bezel Is Not Included***
Enhance your classic 1967 – 1968 Chevy Camaro with the Analog Gauge Panel, featuring a sleek black polycarbonate subsurface with a brush stroke finish, creating a striking and unforgettable dash for your vehicle. Designed for easy installation, it’s a must-have for any Camaro enthusiast aiming to give their ride a contemporary touch.
The gauge panel includes essential features such as a speedometer, tachometer for 8-6-4 cylinder engines, fuel gauge, voltmeter, oil pressure gauge, and water temperature gauge. The speedometer can reach up to 160 MPH and offers convenient one-button calibration, accommodating different tire sizes, gear ratios, and transmissions. Additionally, it provides functions like odometer, trip meter, high-speed recall, 0-60 time, and ¼ mile elapsed time, all accessible with a simple push of a button.
The voltmeter displays voltage reads from 10.0 to 18.0 volts, while the oil pressure gauge measures from 0-100 psi. The tachometer covers a range from 0 to 8000 and the water temperature gauge reads from 100-260°F. The fuel gauge is customizable to work with GM 0-30 & 0-90 ohms ranges. The panel also includes turn signal indicators and a high beam indicator for added convenience.
For installation ease, all necessary sending units, clear plexiglass, hardware, and detailed instructions are provided. The gauge panel is compatible with both mechanical and electronic transmissions.
***Please note that installing the gauge cluster may disable the cruise control system.***
PART NUMBER: DAS-1149
