Description

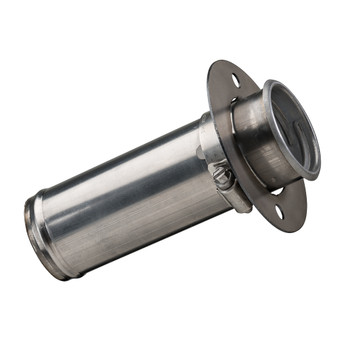

This is an all around good universal Diesel Filler Neck. these can be mounted in several different ways.
A) Use The FG001 Solid Flange For Use On = Adjustable Up To 15° Degrees = See Details.
B) Bezels /Housings 21°-42° Degrees.
C) Use The Rubber Quarter Panel Isolation Grommet = (Adjustable up to 40° Degrees).(Click See Photo Example W/ Different Neck)
Uses Regular Screw On Automotive Diesel Cap.
Main Pipe Diameter: 2″ or 51mm OD.
Length: 6″ (Also Custom Lengths Available).
Fuel Type: Diesel Only.
Flange Type: 3-7/8″ OD / Adjustable; Clamp or Weld On; (Includes Hose Clamp)
Flange Angle: Adjustable From 0 to 15 Degrees Any Direction.
Material: Crew .049 Steel.
Made In The U.S.A.
| RELATED ITEMS: | (Clicking Opens Up A New Web Page; also see bottom of this web page) |
| Mounting Grommet PN2000: | (For Quarter Panel Or Housing Mounting) PN 2000 (Click Here) |
| Mounting Flange: | Part FG001 (Click Here) |
| Weld On Steel Vent Bung: | AD39002 (For Adding a Fuel Injection Return Line Or Return/Vent Line)(Click Here) |
| Fuel Cap: | VentedDiesel Cap Pn 31835D (Click Here) |
| Locking Fuel Cap: | VentedDiesel Cap Pn 31778D (Click Here) |
| Non Vented Cap: | Billet Aluminum Non Vented Cap (Click Here) |
| Classic Chrome Vented Cap | Old School 30’s-70’s Style Chrome Vented & Non Vented Cap Options (Click Here) |
