Description

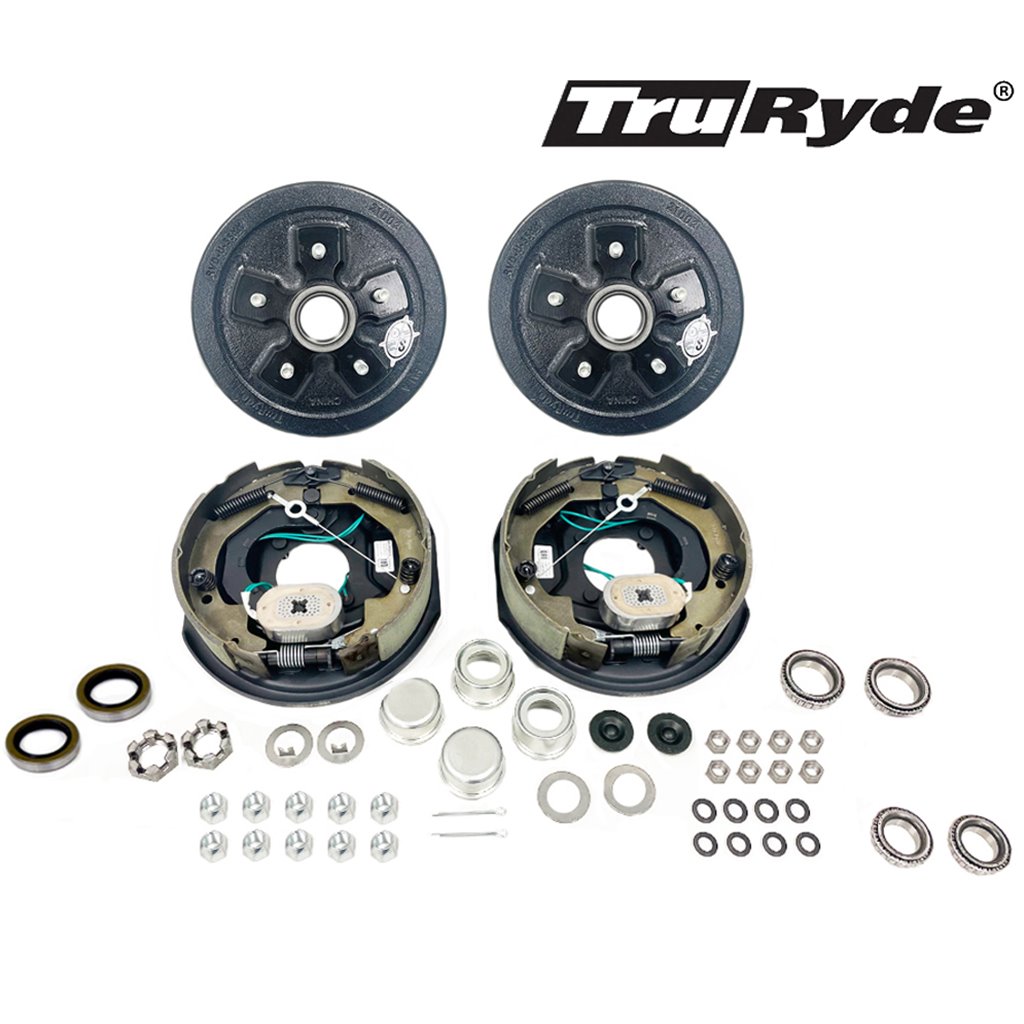

The 5-4.75″ Bolt Circle 3,500 lbs. TruRyde® Trailer Axle Self-Adjusting Electric Brake Kit (Part BK5475ELEAUTO-IPS) is a high-performance, self-adjusting electric brake kit designed for easy installation and reliable stopping power on 3,500 lb. trailer axles. This complete kit includes pre-assembled brake assemblies and all necessary hardware for both sides of the axle.
Key Features
- Part Number: BK5475ELEAUTO-IPS
- Capacity: 3,500 lbs. Trailer Axle
- Bolt Circle: 5 on 4.75″
- Brakes: 10″ x 2.25″ Self-Adjusting Electric Drum Brakes
- Hub/Drum: 10″ with 5 on 4.75″ Bolt Circle
- Spindle Type: 84 Spindle
- Adjustment: Automatic Self-Adjusting
- Brand: TruRyde®
Pair of 10″ hub/drum 5 studs 4.75″ bolt circle using L68149 inner and L44649 outer bearing. Contains inner bearings, outer bearings, grease seals, grease caps, ultra lube grease caps, spindle washers, spindle nuts, cotter pins, tang washers, and lug nuts. (84 Spindle)Pair of 10″ x 2.25″ self-adjusting electric trailer brake assemblies with parts. 4 Hole Mounting. For Alko, Dexter, Quality, or other popular trailer axle manufacturers. Only works on 3,500 lbs. trailer axles with four-hole brake flange. Includes mounting hardware. These are fully assembled backing plates with shoes, springs, and magnets attached and ready to be mounted. The pair includes one left hand and one right hand brake assembly.
This TruRyde® self-adjusting electric brake kit delivers consistent braking performance with minimal maintenance. The self-adjusting feature automatically compensates for brake shoe wear, while the pre-raced hubs and complete hardware make installation fast and professional.
Questions about this TruRyde brake kit or compatibility with your trailer axle? Call our trailer experts at 1-800-866-3336.
Browse more Electric Brake Kits.
| Part No | Quantity | Description |
| RVD-U-5475 | 2 | TruRyde® 5-4.75″ 10″ Hub and Drum |
| BK-10E-01SA | 1 | TruRyde® 10″x2.25″ Left Hand Self-Adjusting Electric Brake |
| BK-10E-02SA | 1 | TruRyde® 10″x2.25″ Right Hand Self-Adjusting Electric Brake |
| 716LW | 8 | 7/16″ Lock Washer |
| 716NFN | 8 | 7/16″ Fine Hex Nut |
| DC-198 | 2 | 1.98″ Dust Cap |
| FS622P | 2 | 1.98″ Lube Dust Cap with Rubber Plug |
| TW100 | 2 | 1″ Tang Washer |
| A1W | 2 | 1″ Spindle Washer |
| FA-SN100 | 2 | 1″-14 Spindle Nut |
| 18X134CP | 2 | Cotter Pin |
| L68149 | 2 | TruRyde® Inner Bearing |
| L44649 | 2 | TruRyde® Outer Bearing |
| GS-1719DL | 2 | 1.719″ ID Double Lip Grease Seal |
| X1023R | 10 | 1/2″-20 Lug Nut 60 Degree 13/16″ WAF |
QAI Certification Testing Standards for Trailer Brakes
QAI Laboratories is an independent, accredited third-party testing and certification organization. QAI certification provides assurance that trailer brakes have been rigorously tested to meet recognized safety and performance standards.
Primary Standards for Trailer Brakes
- CAN3-D313-M85 (R2012) — Canadian standard for Trailer Running Gear (axles, brakes, and suspension)
- CSA Z240 — Recreational Vehicles and Manufactured Housing standard
- FMVSS / CMVSS — Federal Motor Vehicle Safety Standards (U.S. and Canada) for braking performance
- UL Electrical Standards — Testing of brake magnets, wiring, and electrical components
What QAI Tests
- Braking performance and stopping power
- Electrical current draw and magnet strength
- Resistance to water, dust, heat, and corrosion
- Mechanical durability and long-term wear
- Self-adjusting mechanism performance (when applicable)
- Safety labeling and traceability
Trailer brakes that carry the QAI Certified mark (including many TruRyde® and Lippert® models) have been independently verified to meet these strict standards, giving you confidence in safety and reliability.
QAI Certified Trailer Brake Brands (Industry-Wide)
QAI Laboratories is a respected independent testing and certification organization. Below is the current status of major trailer brake brands regarding QAI certification:
| Brand | QAI Certified | Notes |
|---|---|---|
| TruRyde® | Yes | Most models are QAI Certified — Southwest Wheel’s primary brake line |
| Lippert® | Yes | Many electric and hydraulic brake assemblies are QAI Certified |
| UFP | Yes | Especially strong on hydraulic disc brake systems |
| Kodiak | Yes (Select Models) | Many disc brake kits carry QAI certification |
| Dexter® | Limited / Not Commonly Advertised | Focuses on internal testing and FMVSS compliance |
| Generic / Chinese Brands | Very Rarely | Most low-cost imported brakes sold on marketplaces do not carry QAI certification |
Note: QAI certification is a strong indicator of independent safety and performance testing. Always verify current certification status on specific part numbers when safety is critical.
How to Measure a Five Hole Trailer Bolt Circle
A bolt circle (also called bolt pattern) is an imaginary circle that passes through the center of all the wheel studs. The diameter of this imaginary circle determines your bolt circle size.
For a five-lug pattern, you can easily measure it by taking the distance from the center of one stud hole to the center of the next (adjacent) stud hole. This measurement is commonly referred to as dimension A.
Common 5-Lug Measurements:
- If A = 2 5/8″ → 5 on 4.5″ Bolt Circle
- If A = 2 3/4″ → 5 on 4.75″ Bolt Circle
- If A = 3″ → 5 on 5″ Bolt Circle
- If A = 3 1/4″ → 5 on 5.5″ Bolt Circle
Pro Tip: Use a tape measure or digital caliper for the most accurate reading. Measure directly from the center of one stud hole to the center of the neighboring stud hole. This simple method gives you the correct bolt circle every time.
