Description

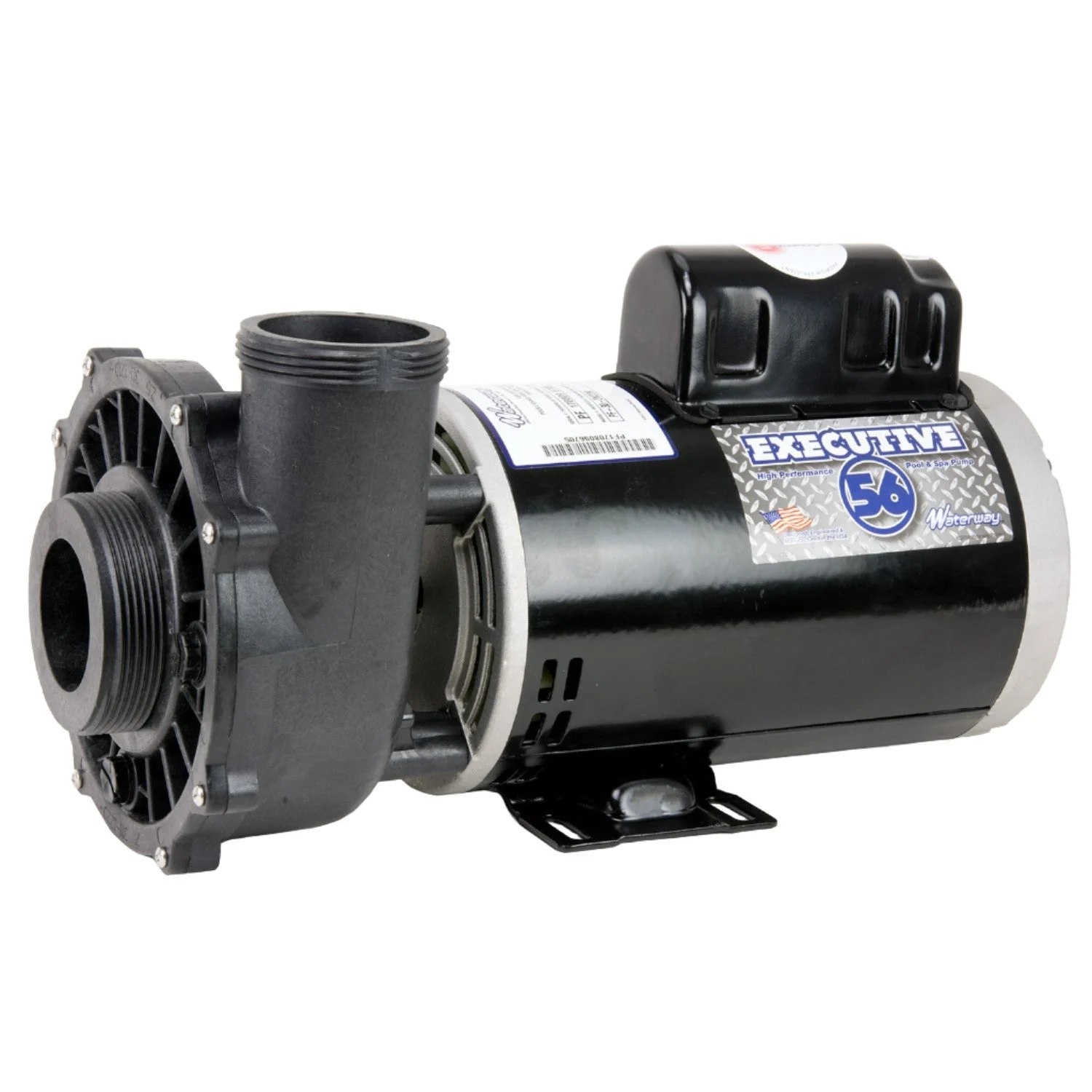

Durable Waterway Executive 56 Spa Pumps are simple to install and provide years of trouble-free use. Because of our huge buying power, you’ll pay less for a complete new hot tub pump (motor & wet end) than some others charge for just a replacement motor.
- 2″ Side discharge, 2½” suction
- 2-Speed
Product Notes: 220 – 240V. 2-speed; easily configured for 1-speed. Waterway uses various motor manufacturers, so capacitor location may be external or internal. Order new pump unions if needed. Some brands (such as Hayward, Jacuzzi or Sta-Rite) may use non-standard fittings with different dimensions.
Pump Selection & Installation Guide
Details
Voltage: 220-240V
Speed: 2-speed: 3450 RPM high/1725 RPM low
Horsepower: 5 HP
Amperage: 16.4A high/4.8A low
Gallons Per Minute: 260 GPM on high
Frame Size: 56 Frame
Intake: 2.5” plumbing (3⅝” O.D. pump threads)
Discharge: 2” plumbing (3” O.D. pump threads)
Discharge Type: Side
Wet End Discharge Orientation: Top (can easily be rotated)
Wet End Drain: Tapped & threaded for 3 plugs (included) – One open port, (2) knockouts
Overall Length: 17½”
Waterway Cross Reference: 3722021-13, 3722021-0T7GDY, PF-40-2N22M, PF-50-2N22C
Motor Cross Reference: RB818, B236, TT506, 5KCP49ZN9315X, MGT-60-5137, R63MWENB-4728
Certification: UL Recognized
Limited Manufacturer’s Warranty: 1-Year
