Description
| Name | Part Number |
|---|---|
| Detroit Diesel | A6809950202 |
| Freightliner | DDEA6809950202 |
| Donaldson | P238774 |
| Nelson | AC300010 |
| Dorman | 674-7006 |
| Alliance | N49CD001 |
| RG Ray | 0373002267 |
| Attribute | Value |
|---|---|

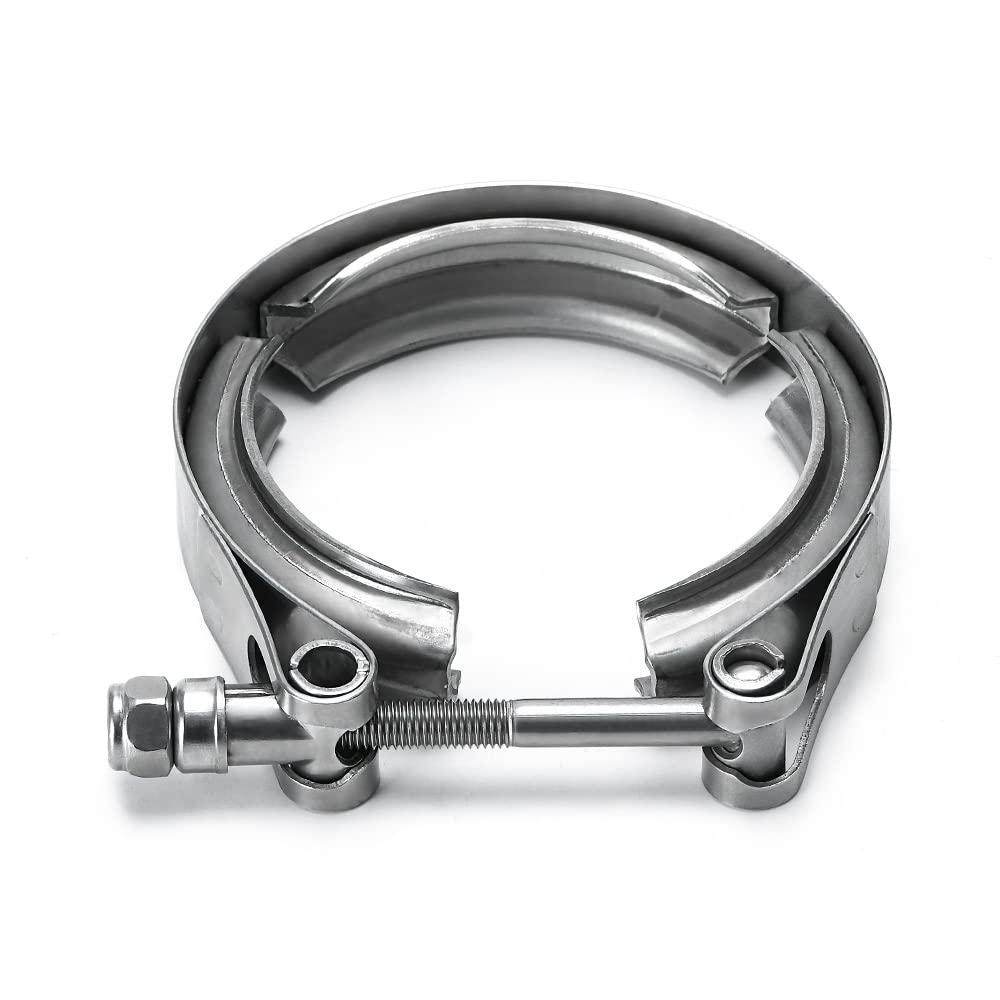

| Product Type | Exhaust System Clamp |
| Clamp Design | V-Band Style |
| Nominal Diameter | 10.5 inches |
| Material | Stainless Steel |
| Fastening Mechanism | T-Bolt with Nut |
| Bolt Size | 5/16 inch |
| Torque Range | 170–200 in-lbs (recommended) |
| Insert Angle | Approx. 40° |
| Band Width | Approx. 1.06 inches |
| Insert Thickness | Approx. 0.078 inches |
| Groove Width | Approx. 0.403 inches |
| Temperature Resistance | Suitable for high-temperature exhaust systems |
| Corrosion Resistance | High |
| Vibration Resistance | Excellent |
| Application | Securing exhaust or DPF flange connections |
| Vehicle Compatibility | Heavy-duty diesel trucks |
| Typical Applications | Freightliner Cascadia, M2 DPF exhaust systems |
| Package Contents | 1 V-Band Clamp |
| Weight | 0.75 LB (Approx.) |
