Description

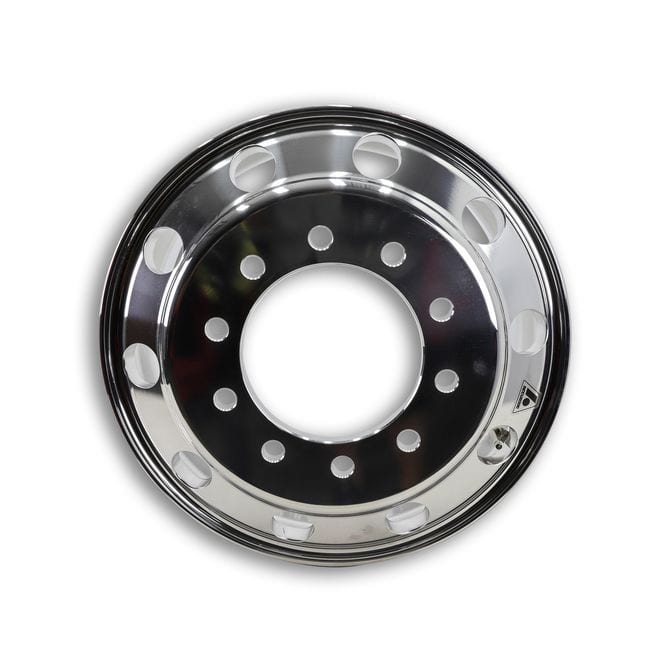

Accuride is the original equipment wheel supplier for most North American Class 8 truck and trailer builders. The 41730SP is a 22.5″ x 9.00″ 15° tubeless aluminum disc wheel in Standard Polish finish, built for hub-piloted dual mounting with two-piece flange nuts. It carries 10 bolt holes on a 285.75 mm circle, 10 hand holes, and a 10,000 lb rating at 130 psi — a standard all-position fitment for on-highway tractors, trailers, and transit buses.
Signs You Need a New Wheel
- Cracks radiating from the bolt holes or hand holes
- Elongated, wallowed, or worn bolt holes from running loose fasteners
- Slow air loss traced to bead seat corrosion or pitting
- Curb, pothole, or impact damage to the flange or bead seat
Specifications
| Manufacturer | Accuride |
|---|---|
| Part Number | 41730SP |
| Part Type | Aluminum Disc Wheel |
| Size | 22.5″ x 9.00″ |
| Wheel Type | 15° Tubeless Aluminum |
| Finish | Standard Polish (SP) |
| Mounting | Hub-Piloted Dual Mounting, Two-Piece Flange Nut |
| Bolt Holes | 10 |
| Bolt Circle | 285.75 mm |
| Center Bore | 220.00 mm |
| Hand Holes | 10 |
| Offset | 7.00 |
| Max Load Rating | 10,000 lb at 130 psi |
| Disc Thickness | 0.98 |
| Wheel Weight | 58 lb |
| Valve Stem | DV545D, installed |
Cross References
This part replaces or is equivalent to the following part numbers:
- Accuride: 41730 (base casting; the SP suffix denotes the Standard Polish finish)
Applications
This wheel fits hub-piloted 10-stud axles rated for a 22.5″ x 9.00″ dual or all-position fitment, including:
- On-highway Class 8 tractors — steer, drive, and tag positions
- Van, flatbed, tanker, and dump trailers
- Transit and motorcoach applications
Verify fitment with your VIN or engine serial number and configuration before ordering.
