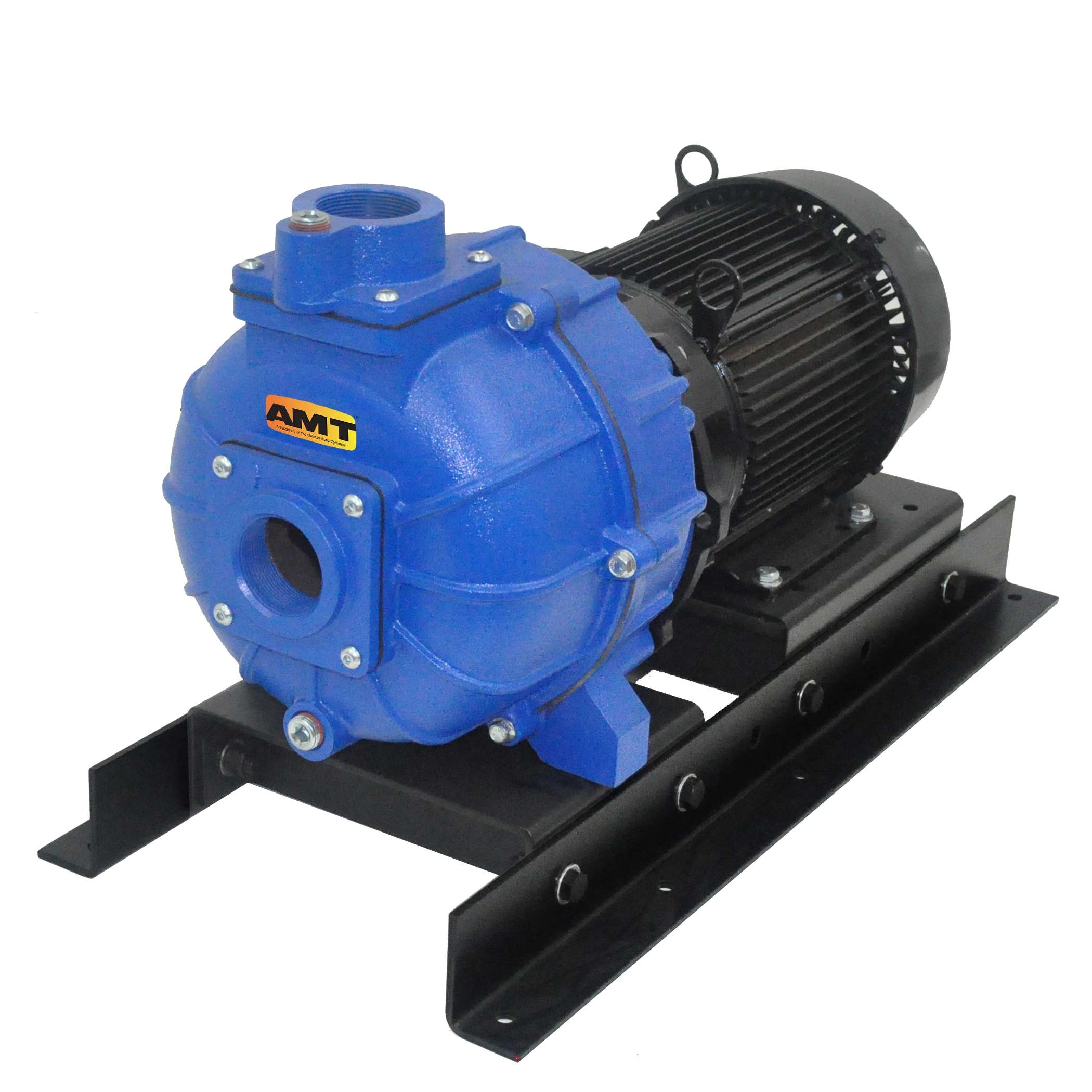

AMT – 4805-95 – 2 in Self Priming High Pressure Pump
Product Brochure
Owner’s Manual
AMT 2″ Self Priming High Pressure Pumps are self-priming high pressure booster pumps with a two stage impeller design to provide additional pressure. All models feature cast iron construction with aluminum impellers and Viton Mechanical Seals. Built-in EPR/EPDM check valve for fast priming are standard on all units. Fill and drain plugs for easy installation and servicing. These units are self-priming up to 20 feet and are suitable for high pressure applications such as dewatering, sprinkler/booster, irrigation, and fire protection. Units are close coupled and are available in 7-1/2″to 10 horsepower TEFC electric motors.
- Cast Iron Construction with Aluminum Impeller
- Viton Mechanical Seal with EPR/EPDM Check Valve and O-Rings
- 2″ NPT Suction and Discharge Ports
- Maximum Temperature 180° F
- Maximum Flow 122 GPM
- Max Head 270 Ft. (116 psi)
- Self-Priming to 20 Ft.
- Closed Vane Aluminum Impeller Designed for High Pressure Performancee
- 7-1/2″to 10 HP TEFC, Single and Three Phase Motors
- Optional Mounting Base Available (A200-90)
