Description

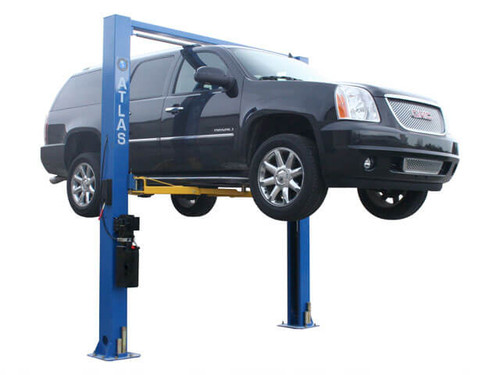

The Atlas® 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities or The Mr. Homeowner who demands the highest quality at the absolute best price.
The Atlas® 9OHSC is a TRUE 9,000 lb. capacity two post lift that offers a great value to the customer. The Atlas® 9OHSC is engineered and manufactured to lift vehicles ranging from Smart Cars ® to a Suburban ®.
The current model of 9OHSC now comes with 3-stage front arms instead of the old 2-stage, giving more flexibility to your lifting points.
The Atlas® 9OHSC has single piece columns and extra long carriages to ensure years of trouble free service. The single piece columns require the customer to have a ceiling of at least 12 feet to stand up the column.
A single piece column coupled with the longer carriage offers unparalleled structural support for your types of lifting requirements.
The Atlas® 9OHSC incorporates a single piece 11’ 10” formed column and an extra long carriage that provides maximum column and arm strength to lift and support a 9,000 lb. vehicle.
| Atlas® 9OHSC Specifications | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | 9,000 LB. | ||||||||||||||
| Lifting Time | Ask Your Salesperson | ||||||||||||||
| Overall Height | 142″ (11′ 10″) | ||||||||||||||
| Padded Bar Height | 135″ (11′ 3″) | ||||||||||||||
| Overall Width | 133 ½” (11′ 1 ½” ) | ||||||||||||||
| Outside Column to Outside Column | 125 ½” (10′ 5 ½”) | ||||||||||||||
| Maximum Lift Height (With Adapters) |
87″ (7′ 3″) | ||||||||||||||
| Maximum Lift Height (Without Adapters) |
76″ (6′ 3″) | ||||||||||||||
| Minimum Arm Height | 4″ | ||||||||||||||
| Inside Column | 109 ½” (9′ 1 ½”) | ||||||||||||||
| Column Size | 8″ x 9 ?” | ||||||||||||||
| Column Thickness of Steel | 5mm | ||||||||||||||
| Carriage Thickness of Steel | 5mm | ||||||||||||||
| Arms Thickness of Steel | 6mm | ||||||||||||||
| Carriage Height | 57 ½” | ||||||||||||||
| Drive Thru | 100 1/2″ (8′ 4 1/2″) | ||||||||||||||
| Base Of Lift | 16 ¾” x 17 ¾” | ||||||||||||||
| Cable Diameter | .375″ | ||||||||||||||
| Motor/Electrical Requirement | 2 HP, 220V single (1) phase. A 30 amp breaker is required. |
||||||||||||||
| Oil Requirement | 3-5 Gallons AW32/AW46 | ||||||||||||||
| Shipping Weight | 1,474 LBS | ||||||||||||||
