Description

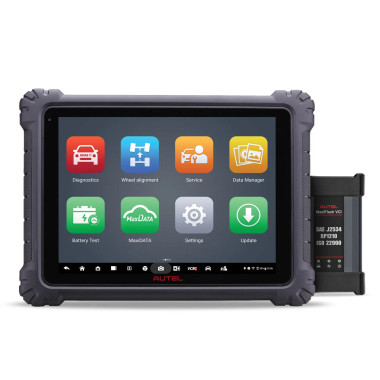

Autel MSULTRAADAS MaxiSYS Ultra ADAS Tablet
Features
- 12.7-inch touchscreen Android-based advanced diagnostics tablet.
- Includes ADAS calibration and wheel alignment software update.
- Compatible with IA900WA frame system (Not included).
- Advanced diagnostic functionality compatible with U.S., Asian and European vehicles, 1996 ad newer.
- Read and Erase codes, view Freeze Frame and view and graph Live Data.
- Perform Active Test and adaptations and coding.
- Includes MaxiFlash VCI and J2534 passthru programming device.
Specifications
| Operating System | Android 7.0 |
| Processor | Octa-core processor (4 x 2.3 GHz; 4 x 1.7 GHz) |
| Memory | 4GB RAM & 256GB On-board Memory |
| Display | 12.7 inch with 2732 x 2048 resolution & capacitive touchscreen |
| Connectivity | WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB) |
| Camera | Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 18000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
| Input Voltage | 12V/3A Adapter |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -10 to 60°C (14 to 140°F) |
| Dimensions (WxHxD) | 366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″) |
| Weight | 2.18 kg (4.81 lb.) |
