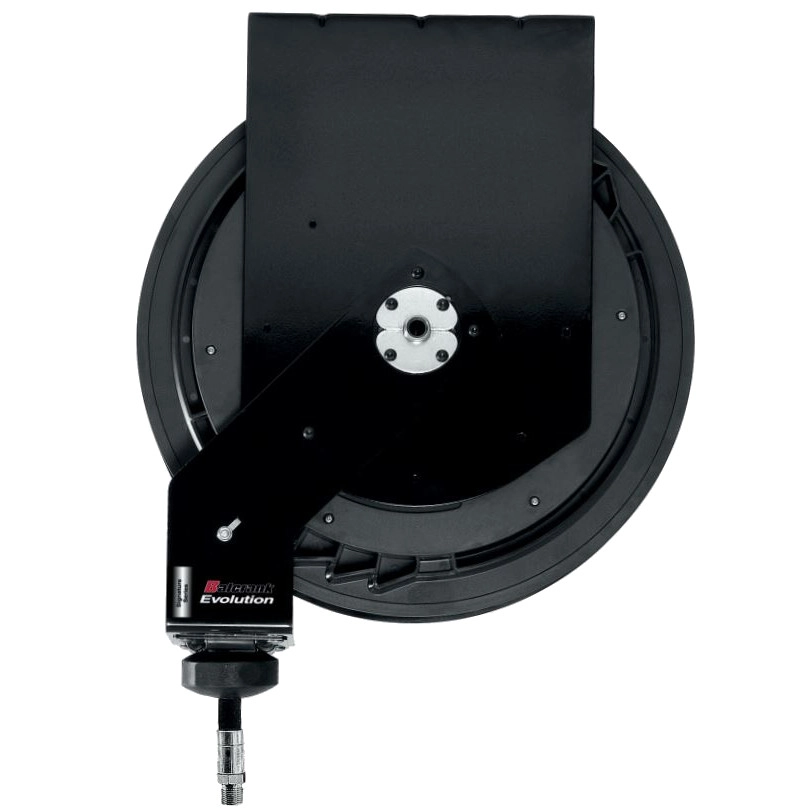

Balcrank – 2140-019 – High Pressure Grease Hose Reel
Balcrank’s Evolution Hose Reel are lightweight, but extremely rugged. These reels feature a steel pedestal and arm, and dual ball-bearings. The Evolution series reels combine design, performance, and reliability. All Evolution series reels have a narrow and lightweight design; includes hose, hose stop, and a 2.5′ connecting hose.
Features:
- Superb Corrosion Resistance
- Superior Structural Design and Stability
- Fully Ported Shaft and Pressure Balanced Swivel
- High Quality Long Life Power Spring
- Spool Mounted on Dual Ball-Bearings
- Rectangular Hose Guide Outlet with Rollers
- Multi-Positioning Outlet Arm
- Eight-Position Latching Mechanism
- Fluid Compatibility for Multiple Applications
- Easy Maintenance and Service
- Easy on-site Tension Adjustment
- Easy Installation Mounting and Accessories
High Pressure for delivery of Grease
- Fluid Inlet Port: 3/8 in. NPT (F) swivel
- Fluid Outlet Port: 3/8 in. NPT (F) swivel
- Outlet Thread: 1/4 in. NPT (M) for 3/8 in. ID hoses
- Wetted Materials: Nickle plated steel, hardened steel, and Polyethurethane
