Description

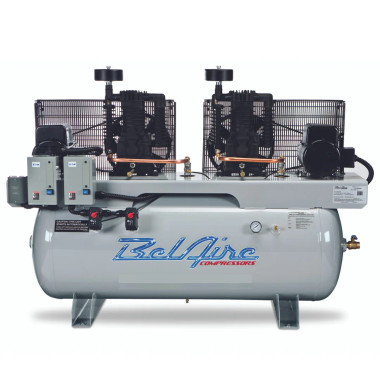

Belaire 3112DL – 15 hp 2-Stage 220 V 1-Phase 120 gal Horizontal Air Compressor
This compressor comes complete with everything you need to optimize your work and minimize down time. The BelAire duplex compressors are available up to 20 HP and can deliver up to 50.50 acfm on single phase power. BelAire duplex compressors feature two pumps and motors, along with an alternator which ensures optimal performance.
Features
- Solid Cast Iron Cylinder.
- Dual Pressure Switch Control.
- Tri-Voltage Motors (3 Phase).
- Magnetic Starters.
- Alternator.
- 100% Factory Tested at Full Pressure.
- ASME Tank and Safety Valves.
Specifications
| Model | 3112DL |
| Voltage | 208-230 |
| Phase | 1 |
| PH | 2 x 7.5 |
| CFM @ 100 PSI | 50.5 |
| CFM @ 175 PSI | 44.6 |
| Tank | 120H Gallon |
| Max pressure | 175 PSI |
| Weight | 886 Lbs |
| Dimensions L x W x H | 77 x 27 x 56 Inches |
Downloads
Brochure
