Description

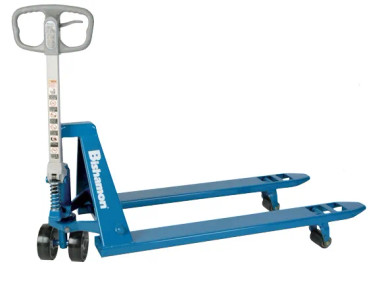

Bishamon BS-55G Blue Label Hand Pallet Truck
Bishamon BS Series Blue Label Pallet Trucks are easy to use and exceptionally durable. These premium pallet trucks have many features not found on most all competitive models and provide unsurpassed rollability.
They are designed and manufactured to easily move palletized loads. By utilizing top quality components and advanced manufacturing techniques, Bishamon’s BS Series pallet trucks can be expected to outlast competitive models that promise comparable quality.
Features
- Ergonomic three position hand lever controls lift, lower and neutral functions with the handle in any position.
- Handle swivels through 210 degrees.
- Steering head and hydraulic assembly use quality, low-friction thrust bearings.
- High quality polyurethane wheels and load rollers provide superior rollability and durability.
- Premium quality ball bearings in all wheels and load rollers.
- Rugged construction, with high strength steel and continuous welds.
- One piece formed forks add strength and durability.
- Durable formed steel entry slide guides truck into pallets and diverts debris.
- Solid steel, non-adjustable push rods increase durability.
- Hydraulic assembly and frame are completely rebuildable.
- Quality baked enamel finish.
| Hand Lever Control |
|
|
|
Three-Position Control Lever Provides Fingertip Control Of All Hydraulic System Functions With The Handle In Any Position |
| |
|
|
|
|
| Hydraulic System |
|
|
|
Self-Contained Rebuildable Hydraulic System |
| |
|
|
|
|
| Strength and Durability |
|
|
|
Formed Fork For Added Strength And Durability |
| |
|
|
|
|
| Debris Diversion |
|
|
|
Formed Steel Entry Slide Diverts Debris And Guides Pallet Truck Into Pallet |
Specifications
| Model |
Capacity (lbs.) |
Overall Fork Dimensions (in.) |
Fork Height (in.) |
Weight (lbs.) |
| A1 (Length) |
A2 (Width) |
B1 (Lowered) |
B2 (Raised) |
| BS-55G |
5,500 |
36 |
20.5 |
2.9 |
7.8 |
182 |
|
|
|
Other Models Available
| Model |
Capacity (lbs.) |
Overall Fork Dimensions (in.) |
Fork Height (in.) |
Weight (lbs.) |
| A1 (Length) |
A2 (Width) |
B1 (Lowered) |
B2 (Raised) |
| BS-55A |
5,500 |
48 |
27 |
2.9 |
7.8 |
224 |
| BS-55B |
5,500 |
42 |
27 |
2.9 |
7.8 |
215 |
| BS-55C |
5,500 |
36 |
27 |
2.9 |
7.8 |
205 |
| BS-55D |
5,500 |
32 |
27 |
2.9 |
7.8 |
198 |
| BS-55E |
5,500 |
48 |
20.5 |
2.9 |
7.8 |
198 |
| BS-55F |
5,500 |
42 |
20.5 |
2.9 |
7.8 |
190 |
| BS-55H |
5,500 |
32 |
20.5 |
2.9 |
7.8 |
174 |
| BS-25A |
2,500 |
48 |
27 |
2.0 |
5.5 |
203 |
| BS-65A |
6,500 |
48 |
27 |
3.3 |
8.0 |
281 |
