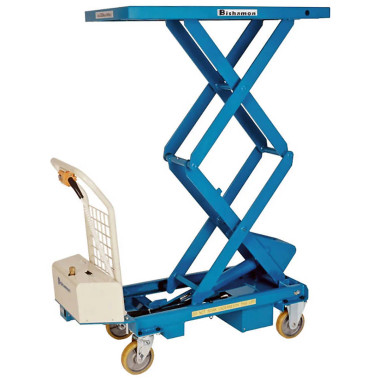

Bishamon BX-30SB Mobile Lift Table - Double Scissor Battery Operated Model

Bishamon BX-30SB Mobile Lift Table – Double Scissor Battery Operated Model

Original price was: $4,151.00.Current price is: $830.20.

SKU: BN-BX-30SB Category: Tag:

Description

Bishamon BX-30SB Mobile Lift Table – Double Scissor Battery Operated Model

Bishamon MobiLift scissor lift tables are rugged industrial lift tables with push-handles and casters. BX series lift tables provide improved ergonomics by placing the load at a convenient working height while providing the mobility to locate the lift where it is needed. By minimizing undesirable lifting, reaching and stretching, MobiLifts increase productivity and help decrease workplace injuries.

Features

  • Heavy-duty construction with captured scissor rollers for maximum stability.
  • High quality casters and wheels ensures exceptional rolling capabilities.
  • Foot actuated caster brake.
  • Heavy-duty maintenance, scissor lock pin.
  • Durable powder-coated finish.
  • Removable push-button control on cord with convenient handle mount.
  • Ergonomic handle with integrated safety guard.
  • Easily accessible On/Off switch with integrated circuit breaker.
  • Enclosed automatic charger with removable power cord.
  • Green-Yellow-Red indicator lights provide quick indication of battery charge.
  • Easily accessible, adjustable lowering speed control.
  • Upper travel limit switch.
Battery Compartment
with Charger		            Battery Operation

Removable, Pendant
Push Button Control		     Battery Operation

Specifications

 Model BX-30SB
 Travel  46.3v in.
 Capacity  660 lbs.
 Platform Height Min. (A) Max. (B)  17.5 x 63.8 in.
 Platform Size W (C) x L (D)  20.5 x 39.8 in.
 Overall Size W (E) x L (F) x H (G)   20.4 x 50.0 x 37.4 in.
 Pumps to Max. Height  12 sec.
 Approx. Ship Weight   450 lbs.

Click here to see BX-30S Mobile Lift Table Without Battery

Other Models Available

 Model  BX-15  BX-25 BX-50  BX-75
 Travel  20.4 in.  22.7 in.  22.1 in.  22.1 in.
 Capacity  330 lbs.  660 lbs.  1,100 lbs.  1,760 lbs.
 Platform Height Min. (A) Max. (B)  8.4 x 28.8 in.  11.3 x 34.1 in.  17.2 x 39.3 in.  17.2 x 39.3 in.
 Platform Size W (C) x L (D)  17.7 x 27.6 in.  19.7 x 32.0 in.  20.4 x 39.8 in.  20.4 x 39.8 in.
 Overall Size W (E) x L (F) x H (G)  17.7 x 33.6 x 31.3 in.  19.7 x 39.7 x 35.3 in.  20.5 x 46.9 x 37.8 in.  20.5 x 49.5 x 37.8 in.
 Pumps to Max. Height  15  25  50  67
 Approx. Ship Weight  75 lbs.  200 lbs.  300 lbs.  300 lbs.
 Double Scissor Models
 Model  BX-30S  BX-50S  BX-50W
 Travel  45.1 in.  23.0 in.  45.1 in.
 Capacity  660 lbs.  1,100 lbs.  1,100 lbs.
 Platform Height Min. (A) Max. (B)  17.0 x 62.1 in.  16.5 x 39.5 in.  17.0 x 62.1 in.
 Platform Size W (C) x L (D)  20.4 x 39.8 in.  18.1 x 25.6 in.  20.4 x 39.8 in.
 Overall Size W (E) x L (F) x H (G)  20.5 x 49.5 x 37.8 in.  18.1 x 37.2 x 37.0 in.  20.5 x 49.5 x 37.8 in.
 Pumps to Max. Height  64  66  90
 Approx. Ship Weight  340 lbs.  275 lbs.  380 lbs.
 Stainless Steel Models
 Model  BXS-10  BXS-20
 Travel  20.4 in.  22.7 in.
 Capacity  220 lbs.  440 lbs.
 Platform Height Min. (A) Max. (B)  8.4 x 28.8 in.  11.3 x 34.1 in.
 Platform Size W (C) x L (D)  17.7 x 27.6 in.  19.7 x 32.0 in.
 Overall Size W (E) x L (F) x H (G)  17.7 x 33.6 x 31.3 in.  19.7 x 39.7 x 35.3 in.
 Pumps to Max. Height  15  25
 Approx. Ship Weight  75 lbs.  200 lbs.
 Battery Operated Models
 Model   BX-30B  BX-50B  BX-80B
 Travel  23.5 in.  23.1 in.  21.1 in.
 Capacity  660 lbs.  1,100 lbs.  1,760 lbs.
 Platform Height Min. (A) Max. (B)  11.5 x 35.0 in.  17.2 x 40.4 in.  17.2 x 38.4 in.
 Platform Size W (C) x L (D)  19.7 x 32.1 in.  20.5 x 39.8 in.  20.5 x 39.8 in.
 Overall Size W (E) x L (F) x H (G)  19.7 x 41.7 x 34.6 in.  20.4 x 50.0 x 37.4 in.  20.5 x 49.4 x 37.4 in.
 Pumps to Max. Height  10 sec.  10 sec.  12 sec.
 Approx. Ship Weight  280 lbs.  390 lbs.  400 lbs
 Double Scissors Battery Operated Models
 Model  BX-15WB  BX-30SB  BX-50WB
 Travel  39.0 in.  46.3v in.  46.1 in.
 Capacity  330 lbs.  660 lbs.  1,100 lbs.
 Platform Height Min. (A) Max. (B)  15.2 x 54.1 in.  17.5 x 63.8 in.  17.1 x 63.2 in.
 Platform Size W (C) x L (D)  19.7 x 32.1 in.  20.5 x 39.8 in.  20.5 x 39.8 in.
 Overall Size W (E) x L (F) x H (G)  19.7 x 39.7 x 35.4 in.  20.4 x 50.0 x 37.4 in.  20.5 x 50.0 x 37.4 in.
 Pumps to Max. Height  10 sec.  12 sec.  17 sec.
 Approx. Ship Weight  330 lbs.  450 lbs.  490 lbs.

Downloads

Flyer
