Name: Bishamon BX-50S Mobile Lift Table - Double Scissor Model
Brand: Bishamon
SKU: BN-BX-50S
Price: 573.20 USD
Availability: InStock

Description

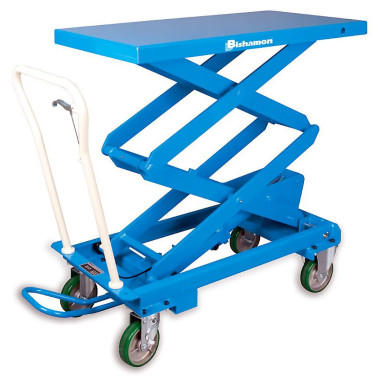

Bishamon BX-50S Mobile Lift Table – Double Scissor Model

Bishamon MobiLift scissor lift tables are rugged industrial lift tables with push-handles and casters. BX series lift tables provide improved ergonomics by placing the load at a convenient working height while providing the mobility to locate the lift where it is needed. By minimizing undesirable lifting, reaching and stretching, MobiLifts increase productivity and help decrease workplace injuries.

Features

Heavy-duty construction with captured scissor rollers for maximum stability.
High quality casters and wheels ensures exceptional rolling capabilities.
Foot actuated caster brake.
Heavy-duty maintenance, scissor lock pin.
Durable powder-coated finish.
Superior hydraulic systems feature an integrated pump-cylinder for maximum reliability.
Ergonomic push handle with convenient lever style lowering control.
Lowering control automatically stop.

Hand Lever Lowering Control				Manual Operation

Convenient Foot Lever Pump				Manual Operation

Specifications

Model	BX-50S
Travel	23.0 in.
Capacity	1,100 lbs.
Platform Height Min. (A) Max. (B)	16.5 x 39.5 in.
Platform Size W (C) x L (D)	18.1 x 25.6 in.
Overall Size W (E) x L (F) x H (G)	18.1 x 37.2 x 37.0 in.
Pumps to Max. Height	66
Approx. Ship Weight	275 lbs.

Other Models Available

Model	BX-15	BX-25	BX-50	BX-75
Travel	20.4 in.	22.7 in.	22.1 in.	22.1 in.
Capacity	330 lbs.	660 lbs.	1,100 lbs.	1,760 lbs.
Platform Height Min. (A) Max. (B)	8.4 x 28.8 in.	11.3 x 34.1 in.	17.2 x 39.3 in.	17.2 x 39.3 in.
Platform Size W (C) x L (D)	17.7 x 27.6 in.	19.7 x 32.0 in.	20.4 x 39.8 in.	20.4 x 39.8 in.
Overall Size W (E) x L (F) x H (G)	17.7 x 33.6 x 31.3 in.	19.7 x 39.7 x 35.3 in.	20.5 x 46.9 x 37.8 in.	20.5 x 49.5 x 37.8 in.
Pumps to Max. Height	15	25	50	67
Approx. Ship Weight	75 lbs.	200 lbs.	300 lbs.	300 lbs.

Double Scissor Models
Model	BX-30S	BX-50S	BX-50W
Travel	45.1 in.	23.0 in.	45.1 in.
Capacity	660 lbs.	1,100 lbs.	1,100 lbs.
Platform Height Min. (A) Max. (B)	17.0 x 62.1 in.	16.5 x 39.5 in.	17.0 x 62.1 in.
Platform Size W (C) x L (D)	20.4 x 39.8 in.	18.1 x 25.6 in.	20.4 x 39.8 in.
Overall Size W (E) x L (F) x H (G)	20.5 x 49.5 x 37.8 in.	18.1 x 37.2 x 37.0 in.	20.5 x 49.5 x 37.8 in.
Pumps to Max. Height	64	66	90
Approx. Ship Weight	340 lbs.	275 lbs.	380 lbs.

Stainless Steel Models
Model	BXS-10	BXS-20
Travel	20.4 in.	22.7 in.
Capacity	220 lbs.	440 lbs.
Platform Height Min. (A) Max. (B)	8.4 x 28.8 in.	11.3 x 34.1 in.
Platform Size W (C) x L (D)	17.7 x 27.6 in.	19.7 x 32.0 in.
Overall Size W (E) x L (F) x H (G)	17.7 x 33.6 x 31.3 in.	19.7 x 39.7 x 35.3 in.
Pumps to Max. Height	15	25
Approx. Ship Weight	75 lbs.	200 lbs.

Battery Operated Models
Model	BX-30B	BX-50B	BX-80B
Travel	23.5 in.	23.1 in.	21.1 in.
Capacity	660 lbs.	1,100 lbs.	1,760 lbs.
Platform Height Min. (A) Max. (B)	11.5 x 35.0 in.	17.2 x 40.4 in.	17.2 x 38.4 in.
Platform Size W (C) x L (D)	19.7 x 32.1 in.	20.5 x 39.8 in.	20.5 x 39.8 in.
Overall Size W (E) x L (F) x H (G)	19.7 x 41.7 x 34.6 in.	20.4 x 50.0 x 37.4 in.	20.5 x 49.4 x 37.4 in.
Pumps to Max. Height	10 sec.	10 sec.	12 sec.
Approx. Ship Weight	280 lbs.	390 lbs.	400 lbs

Double Scissors Battery Operated Models
Model	BX-15WB	BX-30SB	BX-50WB
Travel	39.0 in.	46.3v in.	46.1 in.
Capacity	330 lbs.	660 lbs.	1,100 lbs.
Platform Height Min. (A) Max. (B)	15.2 x 54.1 in.	17.5 x 63.8 in.	17.1 x 63.2 in.
Platform Size W (C) x L (D)	19.7 x 32.1 in.	20.5 x 39.8 in.	20.5 x 39.8 in.
Overall Size W (E) x L (F) x H (G)	19.7 x 39.7 x 35.4 in.	20.4 x 50.0 x 37.4 in.	20.5 x 50.0 x 37.4 in.
Pumps to Max. Height	10 sec.	12 sec.	17 sec.
Approx. Ship Weight	330 lbs.	450 lbs.	490 lbs.
