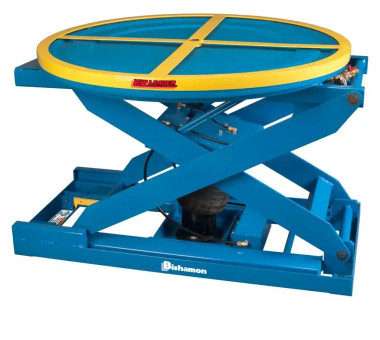

Bishamon EZ Loader Automatic Work Positioner

Bishamon EZ Loader Automatic Work Positioner

Original price was: $3,541.18.Current price is: $708.24.

SKU: BN-EZ Loader Category: Tag:

Description

Bishamon EZ Loader Automatic Work Positioner

One adjustable model will handle most of your pallet loading and unloading needs! Bishamon automatic work positioners are the modern way to manually load and unload pallets. They improve efficiency and reduce injury by bringing the level and location of the top of load closer to the worker. Pallet loading and unloading time can be reduced by 40%, thereby substantially increasing productivity.

Features

  • Self leveling design automatically keeps the top of the load at a convenient working height to help eliminate bending and improve productivity.
  • Integral rotator ring helps eliminate reaching and stretching.
  • Captive air operation eliminates cumbersome mechanical springs and gives more controlled (dampened) movement of the platform.
  • A three position EZ Adjust knob allows adjustment of the collapsed capacity without changing air pressure.
  • Secured ball bearing center pivot of the 43” diameter rotator ring provides smooth, even rotation.
  • Pressure relief valve prevents excess pressure build-up.
  • Surfaces are phosphatized and powder coated with a high quality polyester for a lasting, durable finish.
  • Rollers are entrapped in the base frame and platform for added stability.
  • A safety finger guard eliminates pinch points with the rotator ring spoke and bearings.
  • Integral maintenance blocks.
  • EZ Loaders arrive at your facility fully assembled – just add air!.
  • Easily transported with a fork truck or via optional portability packages.
  • The EZ Loader is CE marked under the Machinery Directive (2006/42/EC).
  • No mechanical springs, uses captive air to eliminate the need for a constant air supply.
  • Self-raising and lowering of the pallet as load weight changes.
  • No springs to change or estimating of weight.
  • Simple adjustments of weight capacities to work requirements.
  • Self-dampening eliminates the need for shock absorbers.
  • Rotator ring minimizes walking and reaching during the loading process.
  • Smooth, even rotator ring motion improves worker efficiency.
  • Work is always at the optimum level so worker does not have to bend, stretch or strain.
  • Requires very little maintenance.

*Note: Only Stainless Steel (SS) Models are approved for wash-down applications.

Self-Contained Pneumatic           Self-Contained Pneumatic System

Adjust Knob     EZ Adjust Knob Provides Up To 1200 Lbs Of Capacity Adjustment With The Turn Of A Knob

Maintenance Bars     Hinged Maintenance Bars For Added Safety

Entrapped Rollers     Rollers Are Entrapped In The Base Frame And Platform For Added Stability

Specifications

 Model  EZ Loader
 Travel  20 in.
 Capacity  4,000 lbs.
 Capacity Range Minimum  250 lbs.
 Capacity Range Maximum  3,500 lbs.
 Rotator Ring Height Lowered  10.5 in.
 Rotator Ring Height Raised  30.5 in.
 Approx. Ship Wt  466 lbs.


Additional Parts and Accessories (Sold Separately)

EZ-BRK        Rotator ring brake to prevent rotation

EZ-ABS     Accordion bellow skirting w/frame

EZ-CART(EZ)       Cart portability with 2-6″ dia. swivel and rigid wheels (adds 7” to lowered height) Not available for EZ Loader-SS

EZ-SLP     Semi live portability for moving unloaded lift 2 wheels and dolly handle

EZ-SRT     Solid 43″ diameter round top

EZ-4444     Oversize rectangular rotating platform (44” x 44”)

EZ-4448       Oversize rectangular rotating platform (44″ x 48″)

EZ-4848       Oversize rectangular rotating platform (48″ x 48”)

EZ-SRT-DNT     Solid 43″ diameter round top with 90 degree detents

EZ-4444-DNT     Oversize rectangular rotating platform (44” x 44”) with 90 degree detents

EZ-4448-DNT     Oversize rectangular rotating platform (44” x 48”) with 90 degree detents

EZ-4848-DNT     Oversize rectangular rotating

Floor TT        Floor mounted 4,500 lbs, capacity 43 in. dia. rotating turntable – (3.18″ height)

Other models available

Lift Table Specifications
 Model  EZ Loader-E  EZ Loader-SS
 Travel  20 in.  20 in.
 Capacity  4,000 lbs.  4,000 lbs.
 Capacity Range Minimum  250 lbs.  250 lbs.
 Capacity Range Maximum  3,500 lbs.  3,500 lbs.
 Rotator Ring Height Lowered  10.5 in.  10.5 in.
 Rotator Ring Height Raised  30.5 in.  30.5 in.
 Approx. Ship Wt  466 lbs.  506 lbs.
Non-Rotating Lift Table Specifications
 Model  EZ Loader-2848  EZ Loader-3648 EZ Loader-2848-SS  EZ Loader-3648-SS
 Travel  20 in.  20 in.  20 in.  20 in.
 Capacity  4,000 lbs.  4,000 lbs.  4,000 lbs.  4,000 lbs.
 Capacity Range Minimum  250 lbs.  250 lbs.  250 lbs.  250 lbs.
 Capacity Range Maximum  3,500 lbs.  3,500 lbs.  3,500 lbs.  3,500 lbs.
 Platform Height Lowered  9.63 in.  9.63 in.  9.63 in.  9.63 in.
 Platform Height Raised  29.63 in.  29.63 in.  29.63 in.  29.63 in.
 Approx. Ship Wt  488 lbs.  488 lbs.  524 lbs.  528 lbs.

Downloads

 Flyer
