Description

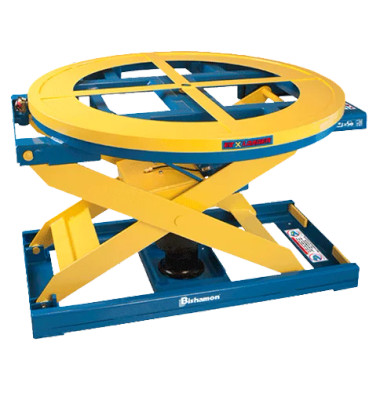

Bishamon EZ X Loader Economy Automatic Work Positioner
Bishamon automatic work positioners are the modern and economical way to manually load and unload pallets. They improve efficiency and reduce injury by bringing the level and location of the top of the load closer to the person doing the work. Pallet loading and unloading time can be reduced by 40%, thereby substantially increasing productivity.
Features
- Self leveling design automatically keeps the top of the load at a convenient working height to help eliminate bending and improve productivity.
- Rotator ring with integral finger guard eliminates reaching and stretching.
- Captive air operation eliminates cumbersome mechanical springs and gives more controlled (dampened) movement of the platform.
- Secured ball bearing center pivot of the 43” diameter rotator ring provides smooth, even rotation.
- Pressure relief valve prevents excess pressure build-up.
- Surfaces are phosphatized and powder coated with a high quality polyester for a lasting, durable finish.
- Rollers are entrapped in the base frame and platform for added stability.
- EZ X Loaders arrive at your facility fully assembled – just add air!.
- Easily transported with a fork truck.
- The EZ X Loader is CE Marked under the Machinery Directive (2006/42/EC).
- No mechanical springs, uses captive air to eliminate the need for a constant air supply
- Self-raising and lowering of the pallet as load weight changes
- Variable capacity – no springs to change or estimating of weight
- Self-dampening eliminates the need for shock absorbers
- Rotator ring minimizes walking and reaching during the loading process
- Smooth, even rotator ring motion improves worker efficiency
- Work is always at the optimum level so worker does not have to bend, stretch or strain
- Requires very little maintenance
| Valve and Gauge |
|
|
|
Manifold With Combo Tank Valve, Purge Valve And Pressure Gauge |
| |
|
|
|
|
| Safety |
|
|
|
Hinged Maintenance Bars |
| |
|
|
|
|
| Pneumatic |
|
|
|
Pneumatic System Reservoir |
Specifications
| Model |
EZ X Loader |
| Travel |
20 in. |
| Capacity |
4,000 lbs. |
| Capacity Range Minimum |
400 lbs. |
| Capacity Range Maximum |
2,600 lbs. |
| Rotator Ring Height Lowered |
9.8 in. |
| Rotator Ring Height Raised |
29.8 in. |
| Approx. Ship Wt |
500 lbs. |
|
|
|
|
|
|
|
Additional Parts and Accessories (Sold Separately)
EZ-ABS
|
|
|
|
Accordion bellow skirting w/frame |
| |
|
|
|
|
| EZ-SRT |
|
|
|
Solid 43″ diameter round top |
| |
|
|
|
|
| EZ-4444 |
|
|
|
Oversize rectangular rotating platform (44” x 44”) |
| |
|
|
|
|
| EZ-4448 |
|
|
|
Oversize rectangular rotating platform (44” x 48”) |
| |
|
|
|
|
| EZ-4848 |
|
|
|
Oversize rectangular rotating platform (48” x 48”) |
Downloads
Flyer
