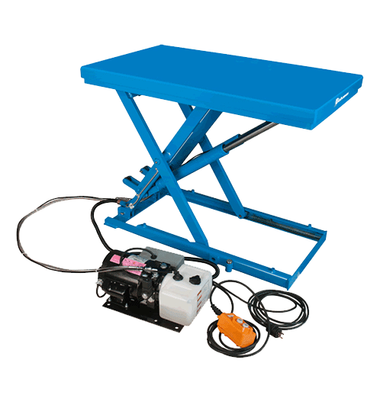

Bishamon LX-50S LX Series Scissor Lift Table

Bishamon LX-50S LX Series Scissor Lift Table

Original price was: $4,645.00.Current price is: $929.00.

SKU: BN-LX-50S Category: Tag:

Description

Bishamon LX-50S LX Series Scissor Lift Table

Overall Features of Lo-Profile LX Series Scissor Lift Tables

Bishamon LoProfile lift tables provide lifting power from a very low elevation. This low collapsed height provides easy access for pallet jacks, wheeled carts and other devices requiring low profile.

Features

  • Lowest collapsed heights in the industry.
  • Rugged construction, with heavy gauge steel and sturdy welds throughout.
  • Steel work platforms.
  • Compact design.
  • Superior hydraulic systems proven on a range of Bishamon lift products.
  • Steel braid hydraulic hose 8’ long.
  • Hand control on 8’ cord.
  • Four-sided electric perimeter toe guard for operator safety.
  • External power unit.
  • Quality baked enamel finish.

*Note: LX-25S, LX-25L, LX-50S, and LX-50L comes with a hand control standard.

Toe guard             Full perimeter Electric Toe guard

Power Unit     Remote Power Unit

Specific Features of LX-50S

 Model  LX-50S
 Capacity  1,100 lbs.
 Platform Size W (A) x L (B)  23.5 x 32.5 in.
 Platform Height Lowered (C)  2.9 in.
 Platform Height Raised (D)  20.9 in.
 Power Units  1/2 HP / 115V
 Approx. Time Up  13 sec.
 Approx. Time Down  8 sec.
 Approx. Ship Weight  228 lbs.


Additional parts and Accessories Sold Separately

** Parts and Accessories Sold Separately

BN-Foot Operated Control (Scissor Lift)

Foot Control
Approach Ramp     Bishamon Approach ramp for carts (approx. 23 in. length)
Pallet Truck Approach Ramp     Bishamon Approach ramp for pallet truck access (approx. 50 in. length)
Power Unit Option 1 PH     230 VAC, 1 Phase motor with 24V controls: no change in up time
Power Unit Option 3 PH     230 VAC, 3 Phase motor with 24V controls: decreases up time to 14 seconds

Other Models Available

 Model  LX-25S  LX-25L  LX-50S  LX-50L  LX-100W
 Capacity  550 lbs.  550 lbs.  1,100 lbs.  1,100 lbs.  2,200 lbs.
 Platform Size W (A) x L (B)  23.5 x 32.5 in.  23.5 x 40.0 in.  23.5 x 32.5 in.  23.5 x 40.0 in.  34.5 x 51.0 in.
 Platform Height Lowered (C)  2.9 in.  2.9 in.  2.9 in.  2.9 in.  3.3 in.
 Platform Height Raised (D)  20.9 in.  30.0 in.  20.9 in.  30.0 in.  38.6 in.
 Power Units  1/2 HP / 115V  1/2 HP / 115V  1/2 HP / 115V  1/2 HP / 115V  E / 1 / 3 / 3-480*
 Approx. Time Up  7 sec.  10 sec.  13 sec.  20 sec.  16 sec.
 Approx. Time Down  5 sec.  8 sec.  8 sec.  10 sec.  12 sec.
 Approx. Ship Weight  213 lbs.  257 lbs.  228 lbs.  356 lbs.  606 lbs.
 Model  LX-100N  LX-200WM  LX-200N  LX-200WL
 Capacity  2,200 lbs.  4,400 lbs.  4,400 lbs.  4,400 lbs.
 Platform Size W (A) x L (B)  24 x 51.0 in.  45.5 x 61.5 in.  33.5 x 55.5 in.  45.5 x 81.0 in.
 Platform Height Lowered (C)  3.3 in.  4.3 in.  4.3 in.  4.3 in.
 Platform Height Raised (D)  38.6 in.  39.4 in.  39.4 in.  39.4 in.
 Power Units  E / 1 / 3 / 3-480*  E / 1 / 3 / 3-480*  E / 1 / 3 / 3-480*  E / 1 / 3 / 3-480*
 Approx. Time Up  16 sec.  34 sec.  34 sec.  34 sec.
 Approx. Time Down  12 sec.  26 sec.  26 sec.  26 sec.
 Approx. Ship Weight  589 lbs.  1,110 lbs.  860 lbs.  1,435 lbs.

Downloads

Flyer
