Description

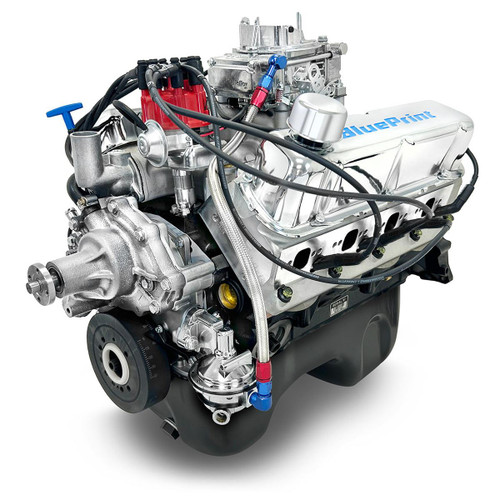

Ford Small Block Compatible 347 c.i. Engine – 415 Horsepower – Deluxe Dressed – Rear Sump – Carbureted
Horsepower & Torque: 415 Horsepower / 415 FT. LBS. Torque
Cylinder Heads: BluePrint Engines Aluminum Cylinder Heads
Compression Ratio: 10:1
Camshaft: Hydraulic Roller Cam – .543 Intake / .554 Exhaust Lift and 218 Intake / 226 Exhaust Duration @ .050 – 112° LSA
Pistons: Forged
Crankshaft: Cast Crank – 3.400″ Stroke and Forged 5.400″ Rods
Description:
Horsepower & Torque: 415 Horsepower / 415 FT. LBS. Torque
Compression Ratio: 10.0:1
Aluminum Heads
Cast Crankshaft
Hydraulic Roller Cam
Block:
BluePrint Engines High Strength Cast Iron Block
Increased Deck Thickness and Strength Webbing
Priority Main Oiling
4.000″ Bore
4-Bolt Main
1-Piece Rear Main Seal
Improved Water Jacket Design
Rotating Assembly:
Cast Crankshaft
3.400″ Stroke
Forged 5.400″ Connecting Rods
Forged Pistons
28oz Externally Balanced Front and Rear
Cylinder Heads:
BluePrint Aluminum Cylinder Heads – HP9009
60cc Chamber
2.02″ Intake / 1.60″ Exhaust Valves
190cc Intake / 60cc Exhaust Runners
Cam Specs:
Hydraulic Roller Cam
.543 Intake / .554 Exhaust Lift
218 Intake / 226 Exhaust Duration
@.050-112 Degree Lobe Separation
Ignition Timing:
10-16 Degrees Initial, 32-34 Total
Also Includes:
Holley Brawler 670cfm Vacuum Secondary Carburetor w/ Electric Choke
Thermostat and Thermostat Housing
Standard Rotation Water Pump
Dual/Rear Sump Oil Pan
Valve Covers
Timing Cover
Intake
Spark Plugs and Wires
Distributor
Harmonic Balancer
Notes:
Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
