Description
Specifications

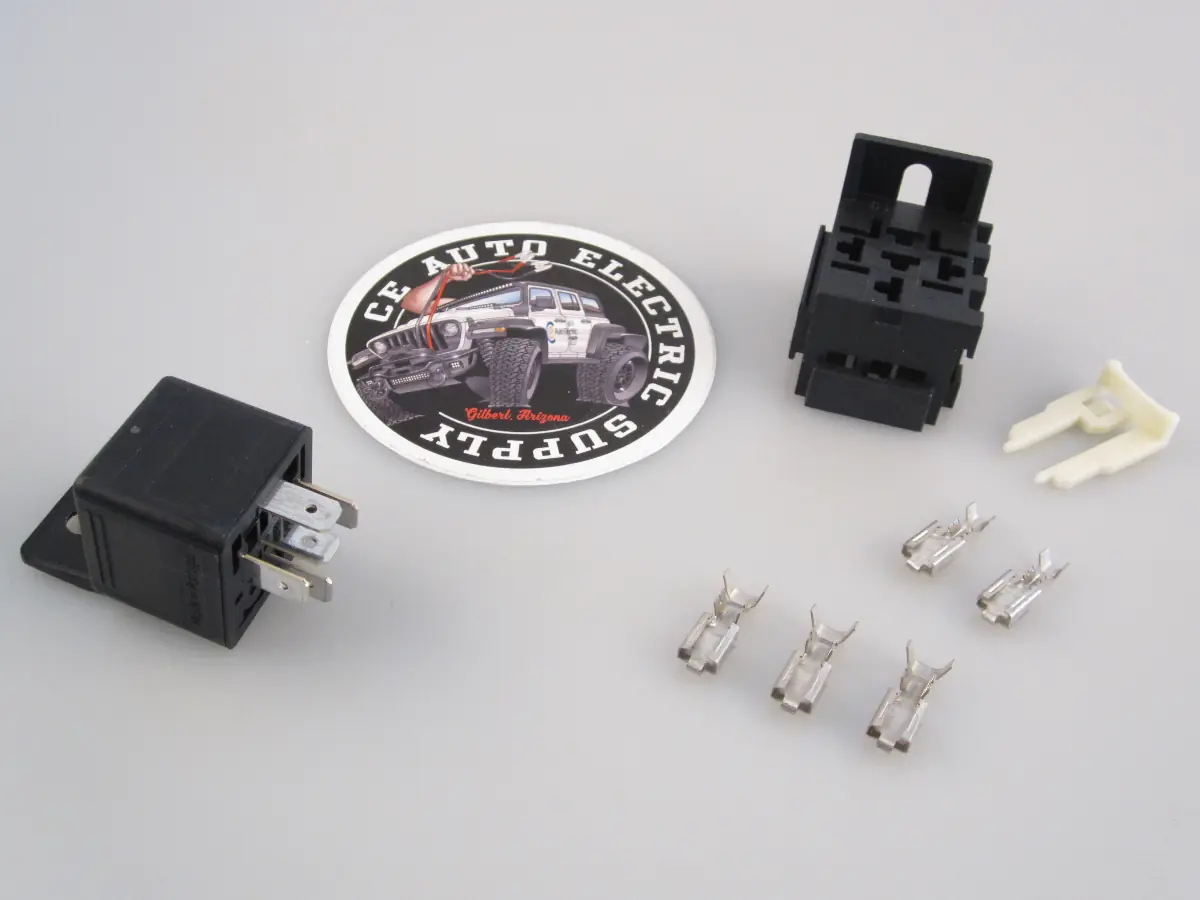

Relay Type: ISO* SPST with dual 87 Terminals
87 Terminals are connected internally, not isolated
Terminal Size: .250″ / 6.3mm
C to N.O.: 30 Amps continuous
Coil Voltage: 12 VDC
Coil Current: 160 mA @ 13.8VDC
Coil Suppression: None
*Note – ISO Relays are those with a terminal layout as this one with .250″ terminals.
As this relay is unique, power is connected to terminal 30 and the loads are connected to the 87 terminals – there are two and they are connected together internally as a convenience. As an example, you could run a 10 AWG feed to terminal 30, and then 14 AWG feeds from each of the 87 terminals to the respective lamps. If the lamps drew 15A each, the total load through the relay switch would be 30A.
