Description
The Cat 1G-8878 is a Caterpillar Genuine OEM Advanced Efficiency spin-on hydraulic and transmission oil filter for wheel loaders, dozers, excavators, and other Cat machines that specify the 1G-8878 element. Microglass media and acrylic-beaded pleating maintain filtration area through the service life and protect drivetrain and hydraulic components from contamination.
Specifications
| Manufacturer | Caterpillar (Genuine OEM) |
|---|---|
| Part Number | 1G-8878 |
| Part Type | Spin-on hydraulic / transmission oil filter (Advanced Efficiency) |
| Media | Microglass |
| Thread | 1 3/8-12 UN |
| Outer Diameter | 3.75 in (95.3 mm) |
| Overall Height | 9.59 in (243.5 mm) |
| Bypass Valve | None integral |
Cross References
This part replaces or is equivalent to the following part numbers:
- Caterpillar: 1G-8878, 191-9784, 1919784

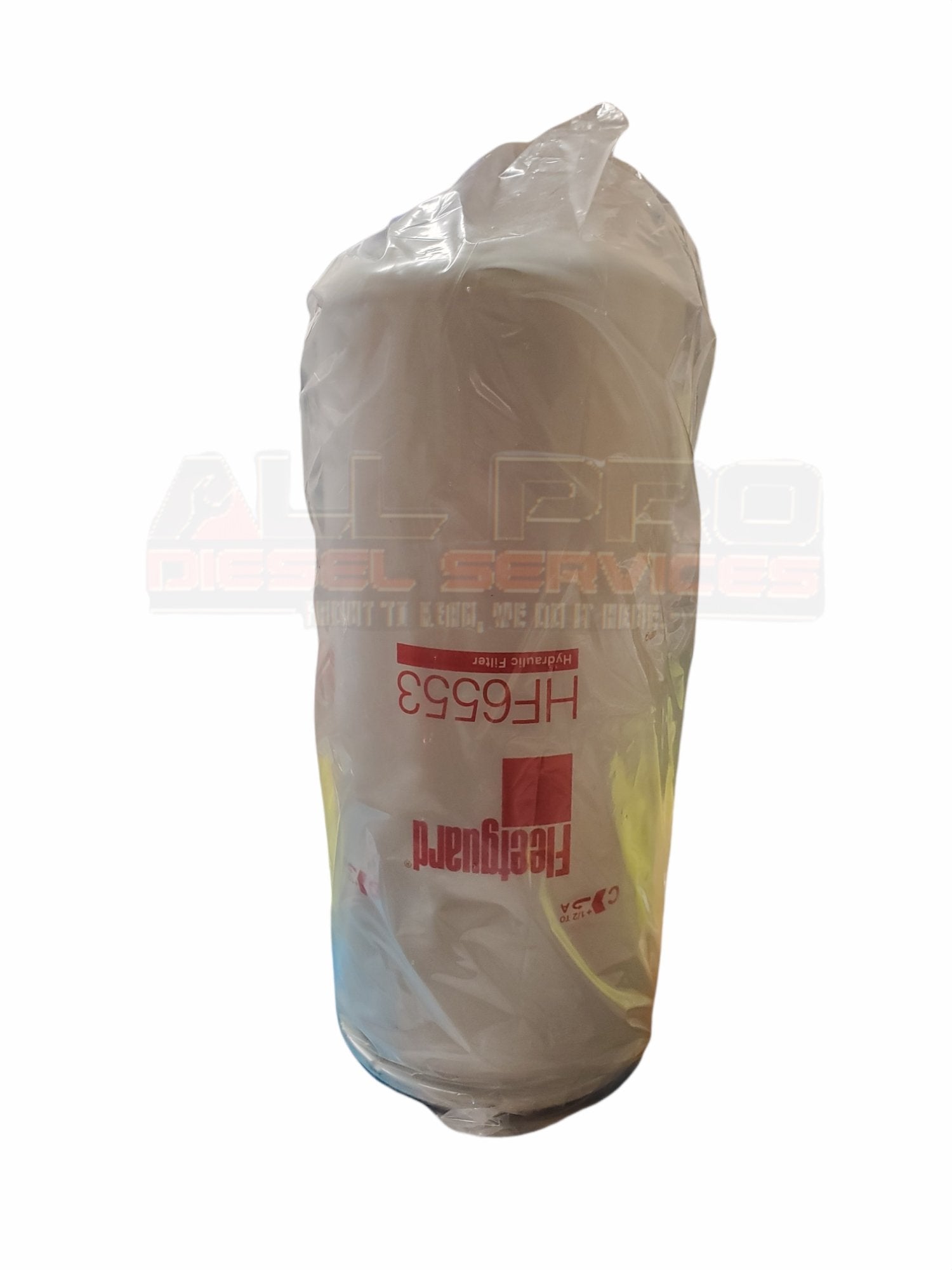

- Fleetguard: HF6553
- Donaldson: P164378, P763535
- Baldwin: BT8851-MPG
- WIX: 57247, 51494
- Hastings: HF861
- Mann: WH980/3
- Luber-finer: LFH4990
- Carquest: 85494
- Hengst: H18W11
Applications
The 1G-8878 fits Caterpillar machines that specify it as the hydraulic or transmission element. Representative platforms include:
- Cat wheel loaders 924F/G/H, 928F/G, 930G, 938F/G/H, 950G/G II/H, 962G
- Cat track-type tractors and integrated tool carriers using 1G-8878
- Cat skid steer loaders, telehandlers, and small excavators with the matching circuit
- Cat hydraulic excavators 320B L, 325B L, 345C in service positions specifying 1G-8878
Verify the filter callout in your machine’s parts manual or operator’s manual before ordering. Cat uses 1G-8878 in both hydraulic and transmission positions on different models — confirm by part number, not application name.
