Description

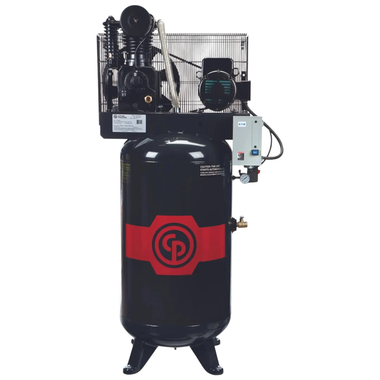

Chicago Pneumatic RCP-C7583VS4 Iron Series Two Stage Electric Simplex Compressor 7.5 HP
Chicago Pneumatic (CP) is dedicated to providing high quality, reliable equipment that has stood the test of time as one of the most rugged compressors in the market. Our compressors are 100% factory tested.
Features
- Start-Stop Pressure Switch Control.
- Tank: both CRN & ASME certified and National Board Registered w/ASME certified safety valve on tanks and pumps.
- Fully Enclosed Belt Guard, Discharge Valve, Magnetic Starter and Alternator.
Specifications
| Two Stage Electric Simplex | |||||||||||
| Model | Amp Draw | Rec. Breaker | hp | Tank gal | Voltage/Phase | cfm @ 100 psi | Max.psi | Weight(lb) | L(in) | W(in) | H(in) |
| RCP-C7583VS4 | 8.6 | 20 | 7.5 | 80V | 460/3 | 23 | 175 | 600 | 37 | 24 | 72 |
Downloads
Brochure (page 2)
