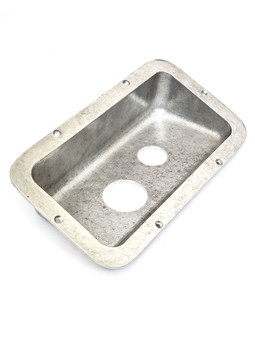

Description
| Diesel Fill Location: | Left Side. |
| DEF Fill Location: | Right Side. |
| Filler Neck Hole Opening Diameter: | 2-3/8” OD |
| Diesel Exhaust Fluid Hole Diameter: | 1.625″ OD |
| Offset Angle: | 21 Degrees. |
| Length From Back of Flange: | 2.55″ at Deepest Point. |
| Surface Flange Dimensions OUTER: | 12.71″ Wide X 7.05″ Tall. |
| Surface Flange Dimensions INNER: | 10.88″ Wide, 5.27 Tall. |
| Finish:. | Ball Burnished with exterior flange polished and lid face 120 grit ground |
| Material: | Cast Aluminum. |
| Notes: | Screw holes will need to be drilled to adapt to your application. |
