Description

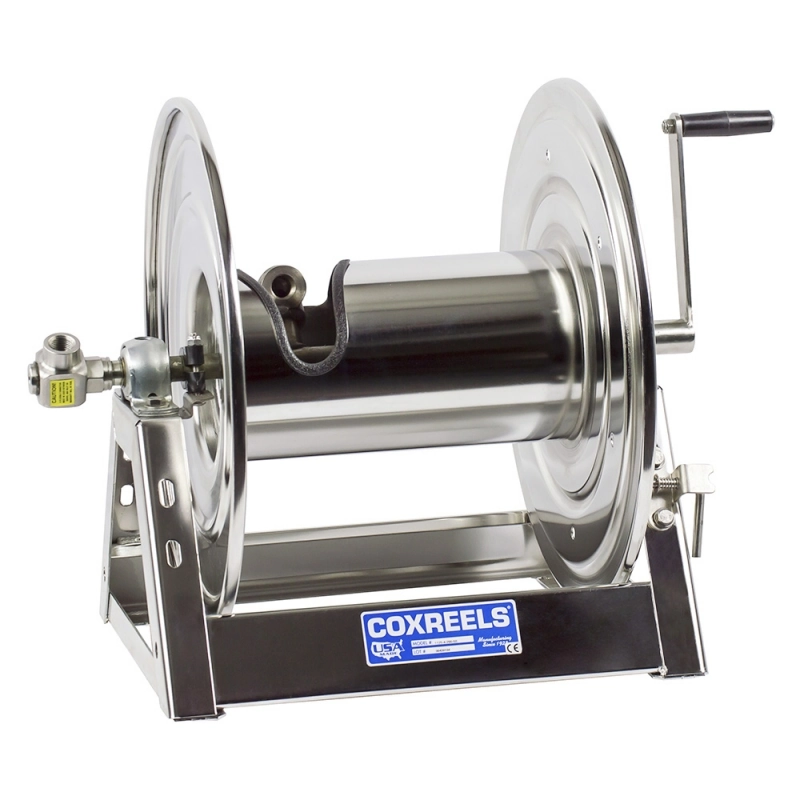

Coxreels – 1125-5-100-SP – Stainless Steel Hand Crank Oil Hose Reel
COXREELS SS Series “Stainless Steel” hand crank hose reels have similar features to their related series, but are constructed of high quality electro-polished stainless steel with stainless steel fluid paths. They offer clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas, and anywhere that rust, corrosion and contamination thrive. Model Shown: 1125-4-200-SS. Please refer to Overall Dimensions and Drum Width for the different reel sizes available.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer’s limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
- SWIVEL – Non-corrosive external fluid path with machined from high quality stainless steel 90° full-flow NPT swivel inlet.
- CNC SPUN DISCS – Heavy duty stainless steel CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- OUTLET RISER – Exclusive stainless steel low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- “A” FRAME – Sturdy one piece, all CNC robotically welded 1/4″ stainless steel “A” frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- PILLOW BLOCK BEARINGS – Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
- OTHER FEATURES INCLUDE – Electro-polished stainless steel finish, adjustable tension brake prevents free wheeling and bevel geared crank.
Design and Structure
- All welded steel A frame construction for superior reel structure
- Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap
- Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation
- Adjustable tension brake to prevent free-wheeling during operation
- Long-handled locking pin to secure reel from rotation during transport or storage
Swivel
- Non-corrosive external fluid path with machined from high quality stainless steel 90° full-flow NPT swivel inlet
- Swivel Seals: NITRILE Non-Toxic Food Grade Grease.
