Description

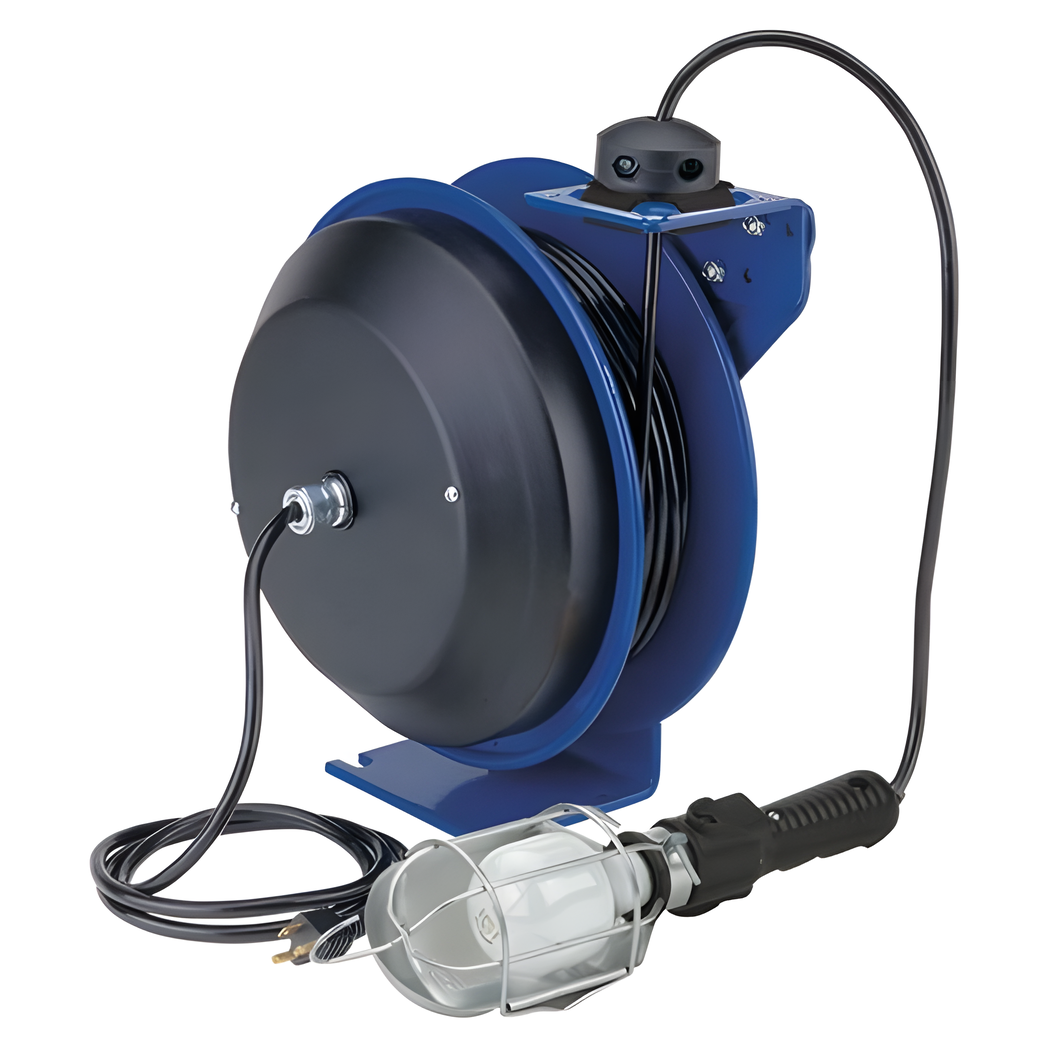

Coxreels – EZ-PC13-5016-E – EZ-Coil Safety Series Spring Rewind Cord Reel
Coxreels PC Series spring driven “Power Cord” reels are heavy duty, industrial grade power sources. They replace tangled extension cords and self-retract to increase safety, productivity and efficiency. Modeled after the P and SH Series, the PC Series are designed for long-lasting, trouble-free performance even under the most demanding conditions.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer’s limited warranty.
- Made in the U.S.A. – Sold & Supported Worldwide.
- COMPONENT COVER – External, easily accesible, heavy gauge CPC powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
- EZ-COIL EQUIPPED – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- MULTI-POSITION GUIDE ARM – Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber cord stop, 5′ lead cable and grounding plug, sturdy permanently lubricated precision bearings.
Design and Structure
- Selection of electrical accessories.
- Single pedestal cord reel with space saving design facilitates workplace organization.
- Guide arm adjusts to wall, floor & overhead positions.
Swivel
- Electrical current runs through a 25AMP / 600V rated slip ring (35AMP on select models).
