Description

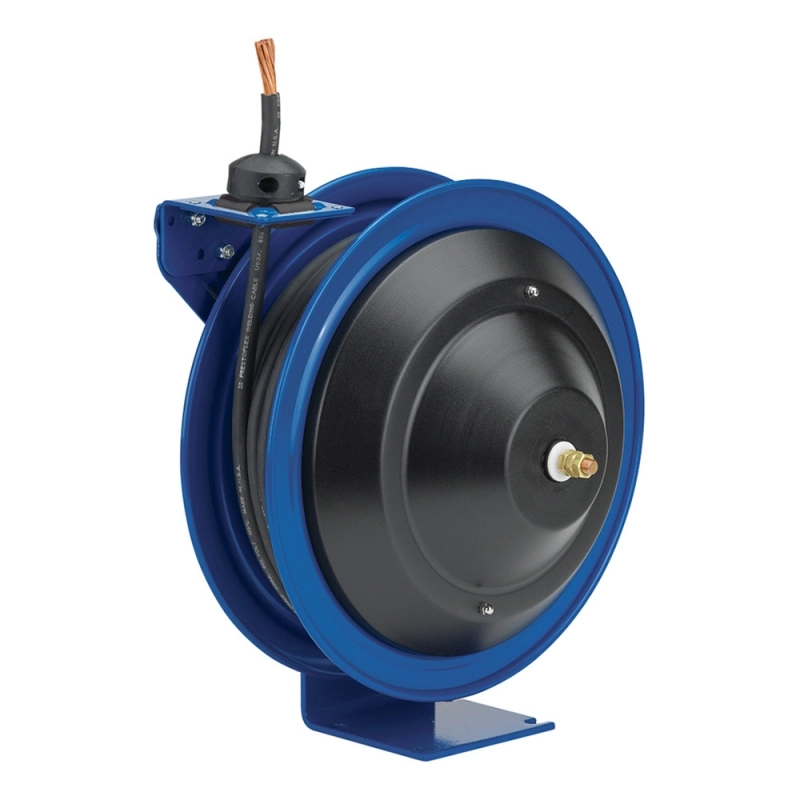

Coxreels – P-WC17L-5020 – Spring Rewind Welding Cable Reel
COXREELS P-WC Series spring driven “Welding Cable” reels protect and extend the life of your welding cable by neatly and conveniently storing it on a 25, 35 or 50 foot self-retracting welding cable reel. They are the solution for keeping your work area safe, organized and efficient.Model Shown: P-WC13-5004. Please refer to Overall Dimensions for the different reel sizes available.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer’s limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
- COMPONENT COVER – External, easily accesible, heavy gauge CPC powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
- CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4″ STEEL BASE – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability and professional grade strenght without the weight.Exclusive Super Hubdual axle support system.
- MULTI-POSITION GUIDE ARM – Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber cable stop, welding cable, cable clamp available, and sturdy permanently lubricated precision bearings.
Design and Structure
- Designed for electrode & grounding lead applications (each lead requires an individual reel)
- Single pedestal reel with space saving design facilitates workplace organization
- Welding cable clamp available (see below)
- Guide arm adjusts to wall, floor, vehicle &noverhead positions
- Solid one piece, heavy gauge 1/4″ steel base & support post for maximum stability
- 1″ solid steel axle & lubricated precision bearings for smooth rotation
Swivel
- Electrical current runs through a 450 AMP rated slip ring
