Description

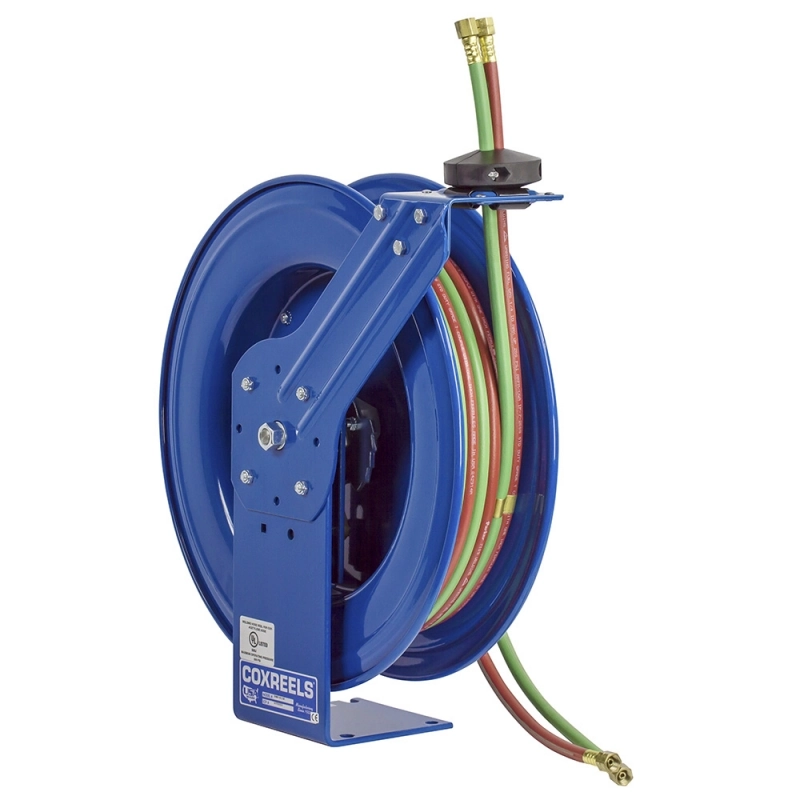

Coxreels – SHWL-N-150 – Dual Hose Spring Rewind Welding Hose Reel
COXREELS SHW Series spring driven “Welding” hose reels is the ideal solution for managing bulky twin line welding hose The SHW Series has a larger chassis and framethan P-W Series to accommodate longer lengths of welding hose and Coxreels original Super Hub dual axle support system for increased stability during operation, less vibration and greater structural integrity. Model Shown: SHW-N-150. Please refer to Overall Dimensions for the different reel sizes available.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer’s limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
- WELDING GAS SWIVEL – External 90° full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
- CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4″ STEEL BASE – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub dual axle support
- MULTI-POSITION GUIDE ARM – Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, oxy-acetylene or “T” grade welding hose, and sturdy permanently lubricated precision bearings.
Design and Structure
- Single pedestal reel with space saving design facilitates workplace organization
- Guide arm adjusts to wall, floor & overhead positions
- Solid one piece, heavy gauge 1/4″ steel base & support post for maximum stability
- 1″ solid steel axle & lubricated precision bearings for smooth rotation
Swivel
- External fluid path with 90° full-flow dual ported brass swivel offering both connections from the same side of the reel.
- Swivel seals: VITON
