Description
The DeeMaxx Components DeeMaxx® 3,500 lbs. Disc Brake Kit for One Wheel with Maxx Caliper (Part DM35KMAX) is a high-performance hydraulic disc brake kit designed for 3,500 lb. single axle trailers. Featuring the premium Maxx Caliper, this kit delivers superior stopping power, excellent heat dissipation, and outstanding durability.
Key Features
- Part Number: DM35KMAX
- Capacity: 3,500 lb. Axles (One Wheel)
- Brake Type: Hydraulic Disc Brake Kit
- Caliper: Maxx Caliper
- Rotor: 10″ Integral Vented Rotor with 5 on 4.5″ bolt circle 1/2″ Studs
- Installation: Bolt-On Design
- Brand: DeeMaxx Components
3,500 lbs. DeeMaxx Maxx Finish disc brake. 5 lug 1/2″ studs. 10″ Integral vented rotor. Unique rotor cross section design actively draws cooling air from the rotor interior! Exclusive 120º bleeder design means better bleeding, balanced system, and no more damaged bleeders! Exclusive laser writing on caliper means instructions are always there! Every caliper is tested to 2000 psi. Robust ductile iron casting eliminates flexing resulting in more brake torque. Exclusive bolt design means no more mishandling or incorrect shipping of bolts. Compatible with every surge and electric over hydraulic actuators! Ceramic brake pads are slotted, chamfered, & feature a stainless steel clip. Unique bracket design provides twice as many mounting options for caliper position. Produced in ISO Quality certified factories! Passed the SAE J2681 Brake test!

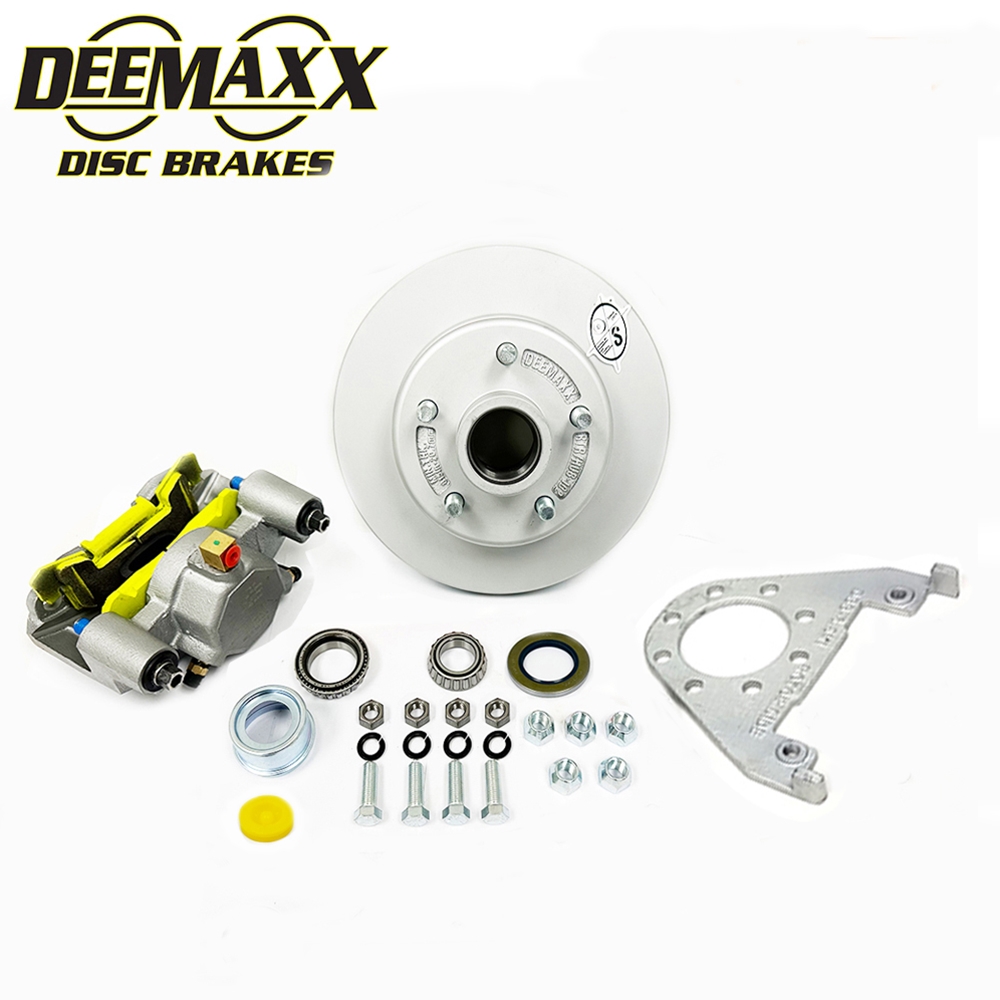

This Kit includes:
- 1 x 10″ 5 Lug Maxx Integral Vented Rotor w/ 1/2″ Studs
- 1 x Maxx Caliper w/brake pads
- 1 x 3,500 lb. axle Maxx mounting bracket
- 1 x L44649 Outer Bearing
- 1 x L68149 Inner Bearing
- 1 x 1.98″ Yellow Grease Dust Cap w/Plug
- 1 x 171255TB 1.719″ x 2.561″ Double Lip Seal
- 4 x 7/16″ x 1-1/4 Bolts
- 4 x 7/16″ Lock Washers
- 4 x 7/16″ Fine Hex Nuts
- 5 x 1/2″-20 60º Lug Nuts
This DeeMaxx Maxx Caliper disc brake kit offers outstanding braking performance and durability, making it an excellent choice for boat trailers, utility trailers, and other single-axle applications where maximum stopping power is required.
Questions about this disc brake kit or compatibility with your trailer axle? Call our trailer experts at 1-800-866-3336.
