Description

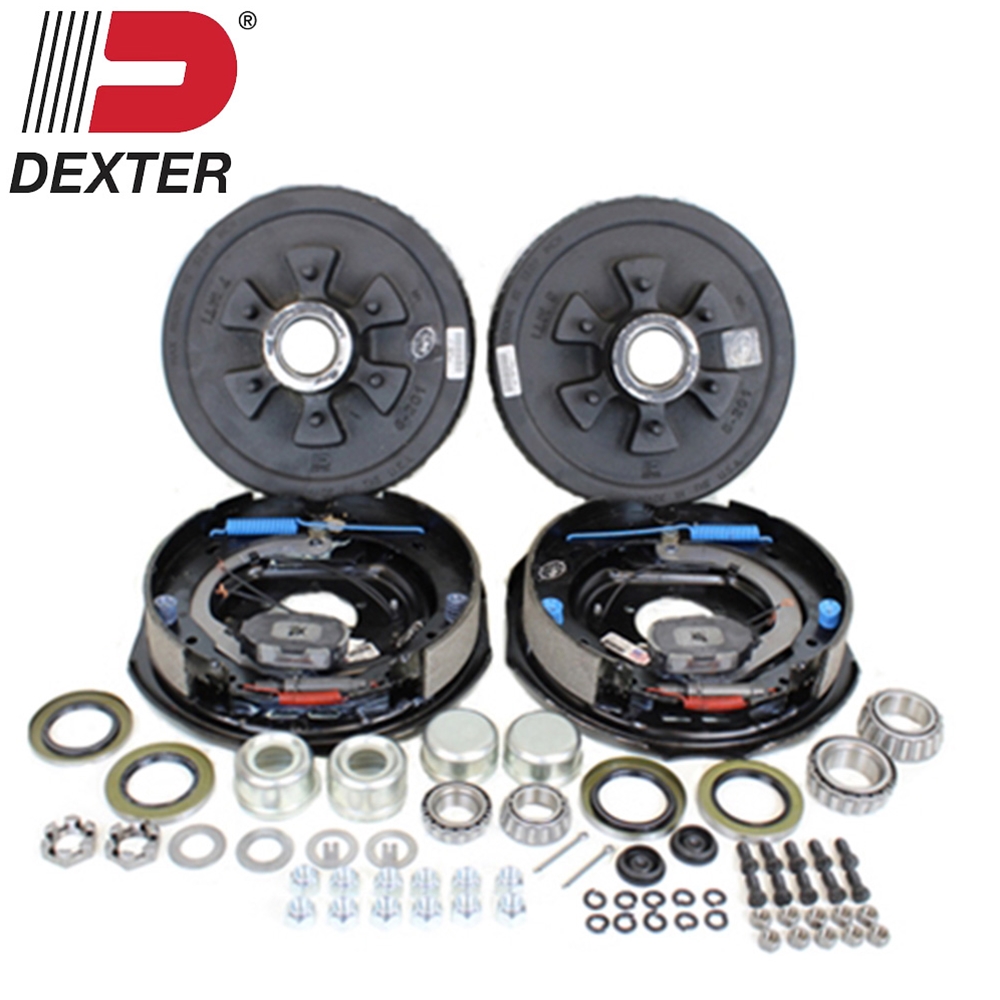

Pair of 12″ Genuine Dexter hub/drum 6 studs 5.5″ bolt circle using L25580 inner and 15123 outer bearing. Contains inner bearings, outer bearings, grease seals, grease caps, ultra lube grease caps, spindle washers, spindle nuts, cotter pins, tang washers, and lug nuts. (42 Spindle)
Pair of 12″ x 2″ Genuine Dexter electric trailer brake assemblies with parts. 5 Hole Mounting. For Alko, Dexter, Quality, or other popular trailer axle manufacturers. Only works on 5,200 lbs. trailer axles with five-hole brake flange. Includes mounting hardware. These are fully assembled backing plates with shoes, springs, and magnets attached and ready to be mounted. The pair includes one left hand and one right hand brake assembly.
| Part No | Quantity | Description |
| 008-201-09 | 2 | Dexter® 6-5.5″ 12″ Hub and Drum |
| 023-180-00 | 1 | Dexter® 12″x2″ Left Hand Electric Brake |
| 023-181-00 | 1 | Dexter® 12″x2″ Right Hand Electric Brake |
| 363989 | 10 | 3/8″ Mounting Stud for Electric Brake |
| 38LW | 10 | 3/8″ Lock Washer |
| 38NFN | 10 | 3/8″ Fine Hex Nut |
| DC-250 | 2 | 2.44″ Dust Cap |
| FS623P | 2 | 2.44″ Lube Dust Cap with Rubber Plug |
| TW100 | 2 | 1″ Tang Washer |
| A1W | 2 | 1″ Spindle Washer |
| FA-SN100 | 2 | 1″-14 Spindle Nut |
| 18X134CP | 2 | Cotter Pin |
| 25580 | 2 | TruRyde® Inner Bearing |
| 15123 | 2 | TruRyde® Outer Bearing |
| GS-2125DL | 2 | 2.125″ ID Double Lip Grease Seal |
| GS-2225DL | 2 | 2.225″ ID Double Lip Grease Seal |
| X1023R | 12 | 1/2″-20 Lug Nut 60 Degree 13/16″ WAF |
