Description

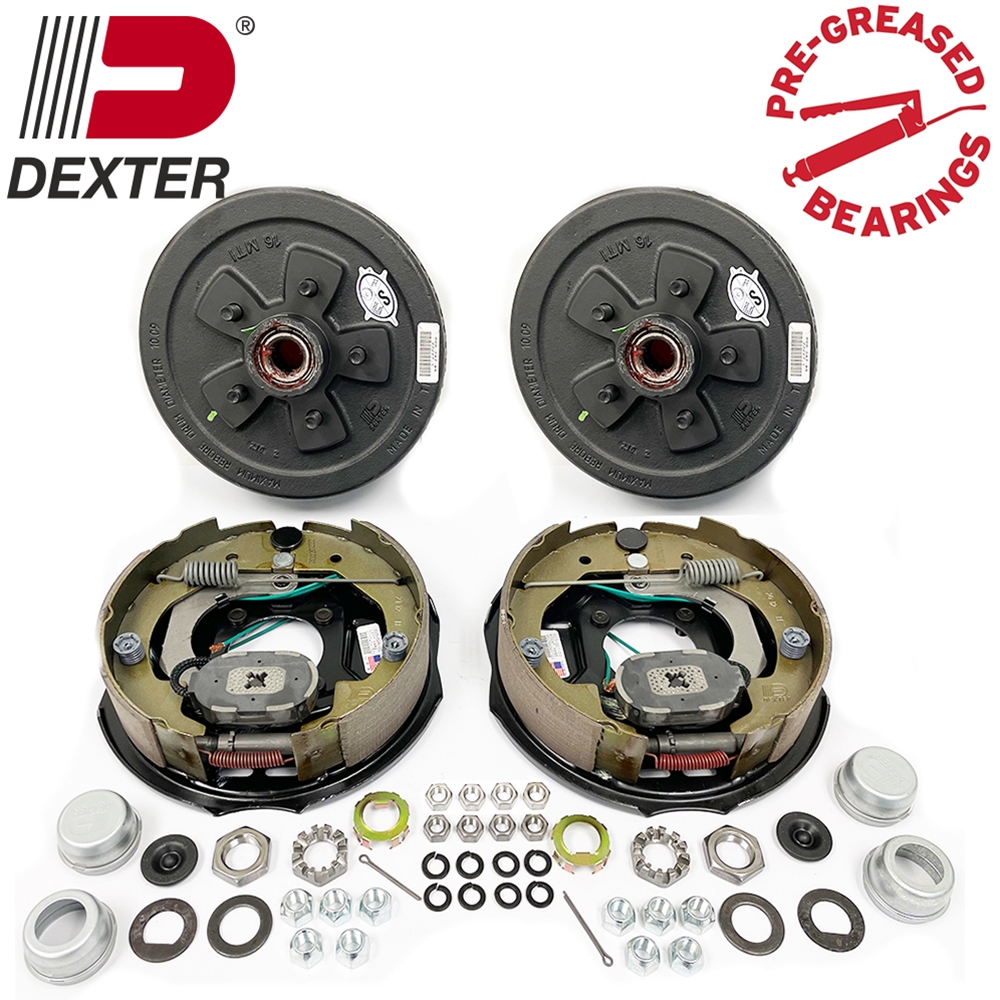

The Dexter® Pre-Greased Easy Assemble 5 on 4-1/2″ Hub and Drum Electric Brake Kit (Part PGBK545ELE) is a genuine Dexter factory-assembled kit designed for quick and hassle-free installation on 3,500 lb. trailer axles. From novice to expert, this pre-greased kit makes brake and hub replacement simple and reliable.
Key Features
- Part Number: PGBK545ELE
- Brand: Dexter®
- Axle Capacity: 3,500 lbs.
- Bolt Circle: 5 on 4-1/2″
- Brake Size: 10″ x 2.25″ Electric Drum Brakes
- Spindle: 84 Spindle
- Feature: Pre-Greased Easy Assemble Hub & Drum
- Mounting: 4 Hole Brake Flange
Technical Specifications
- Pre-Greased Dexter 5 on 4-1/2″ Hub-Drum with 10″ x 2.25″ Dexter electric trailer brakes
- For 3.5K axle, 5-4.5″ BC, studded with 1/2″-20 studs, 1.718″ seal
- Includes Dexter K23-026-00 & K23-027-00 Electric trailer brakes
- Bearings and seal come installed & pre-greased
- Includes E-Z Lube® & standard grease caps, spindle attachment hardware & lug nuts
- Fully assembled backing plates with shoes, springs, and magnets attached (one left hand + one right hand)
- Includes full mounting hardware
The experts at Dexter® have already prepared the hub and drum with the exact amount of grease needed. Easy-to-read instructions are included, making installation smooth regardless of your experience level. Only works on 3,500 lbs. trailer axles with four-hole brake flange.
Questions about this Dexter pre-greased brake kit or compatibility? Call our trailer experts at 1-800-866-3336.
Browse more Trailer Electric Brake Kits.
| Dx Part No | Quantity | Description |
| 008-247-05 | 2 | Hub & Drum,3.5K, Cupped & Studded |
| 031-031-02 | 2 | Bearing Cone L44649 |
| 031-033-02 | 2 | Bearing Cone L68149 |
| 010-019-00 | 2 | Seal, 1.72″ |
| 006-080-00 | 10 | Nut, Cone 60-Deg |
| 021-003-00 | 2 | Grease Cap |
| 021-041-01 | 2 | Grease Cap |
| 085-001-00 | 2 | Rubber Plug |
| 006-190-00 | 2 | Nut, Retainer |
| 006-191-00 | 2 | Nut, Hex |
| 005-023-00 | 2 | Washer, “D” |
| 005-027-00 | 2 | Washer |
| 019-002-00 | 2 | Cotter Pin |
| 059-831-00 | 2 | Instruction Sheet |
| 006-176-00 | 2 | Nut, Slotted |
| 023-026-00 | 1 | 10″ x 2 1/4″ 3.5K Electric LH |
| 023-027-00 | 1 | 10″ x 2 1/4″ 3.5K Electric RH |
| 716LW | 8 | 7/16″ Lock Washer |
| 716NFN | 8 | 7/16″ Fine Nut |
