Description

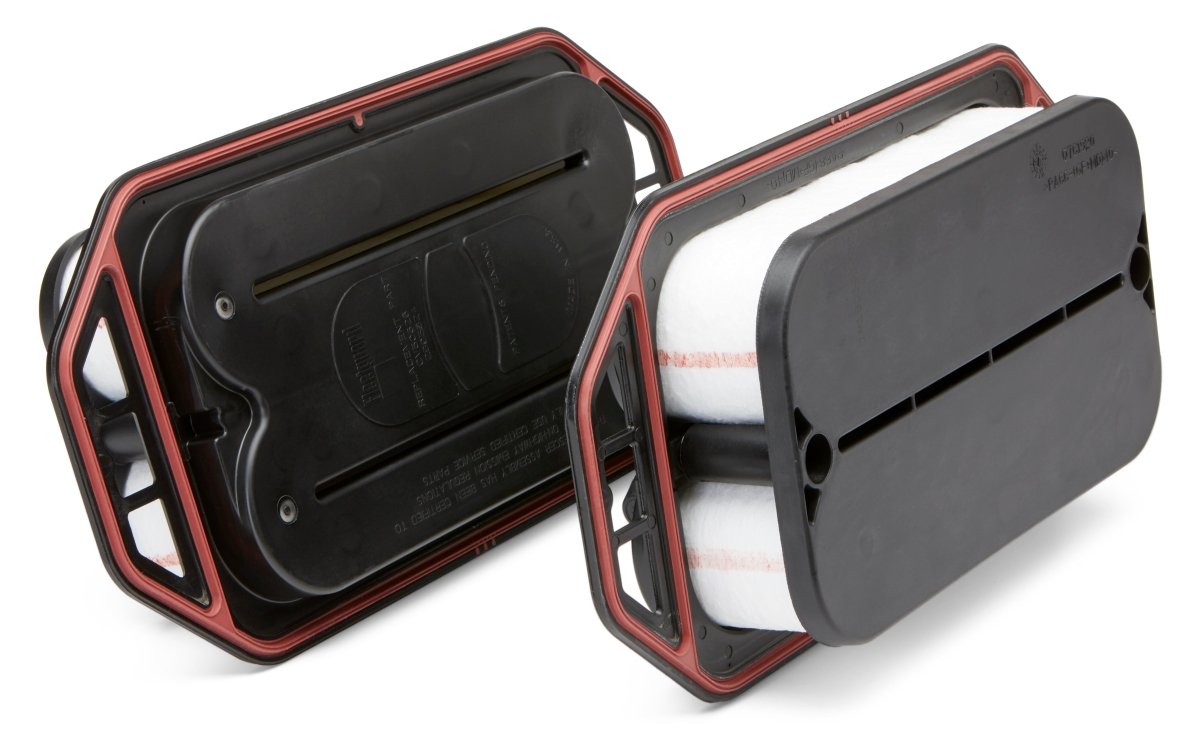

Fleetguard CV50626 is the OE-spec crankcase ventilation cartridge for Cummins ISX11.9, ISX12, ISX12N, and X12 engines (2010+ EPA-emissions), replacing Cummins 2869874 and 2895324. The polypropylene coalescer element with centrifugal flow guides captures 98%+ of oil-mist particles 5 µm and larger before blow-by gases re-enter the intake, protecting the turbocharger, charge-air cooler, and EGR/aftertreatment hardware while reducing oil consumption.
Signs You Need a New Crankcase Ventilation Filter
- Increased oil consumption requiring more frequent top-offs
- Oil film or residue inside the turbo inlet pipe or charge-air cooler
- Oil leaks at valve cover gaskets or rear main due to elevated crankcase pressure
- Rough idle, decreased fuel economy, or reduced engine performance
- Blue or white smoke on cold start indicating oil entering the intake
- Service interval reached (1,000 hours)
Specifications
| Manufacturer | Fleetguard (Cummins Filtration) |
|---|---|
| Part Number | CV50626 |
| Part Type | Crankcase Ventilation Filter (CCV / Coalescer Element) |
| Filter Media | Polypropylene coalescer with centrifugal flow guides |
| Capture Efficiency | 98%+ on oil-mist particles ≥5 µm |
| Mounting Style | Cartridge |
| Dimensions | 13.30 in L x 6.50 in W x 2.70 in H |
| Service Interval | 1,000 hours (on-highway, transit, refuse, stationary) |
| Engine Compatibility | Cummins ISX11.9, ISX12, ISX12N, X12 (2010+ emissions-compliant) |
Cross References
This filter replaces or is equivalent to the following part numbers:
- Cummins: 2869874, 2895324, 5579272
- Fleetguard family: CV50625 (predecessor)
- Dorman: 904-7903
Applications
This crankcase ventilation filter fits the following engines:
- Cummins ISX11.9 / ISX12 / ISX12N (2010–2016)
- Cummins X12 (2017–current)
Representative trucks using these engines:
- Freightliner Cascadia, Cascadia 113/116, 108SD, 114SD, M2 112
- Kenworth T680, T880, T800, W900, W900L, C500, T660
- Peterbilt 579, 567, 365, 367, 384, 389, 320, 520
- International ProStar, LT, RH, HX (with Cummins option)
The CV50626 is for ISX11.9 / ISX12 / X12 only. The ISX15 / X15 uses a different cartridge (Fleetguard CV52001). Verify your engine before ordering.
