Description

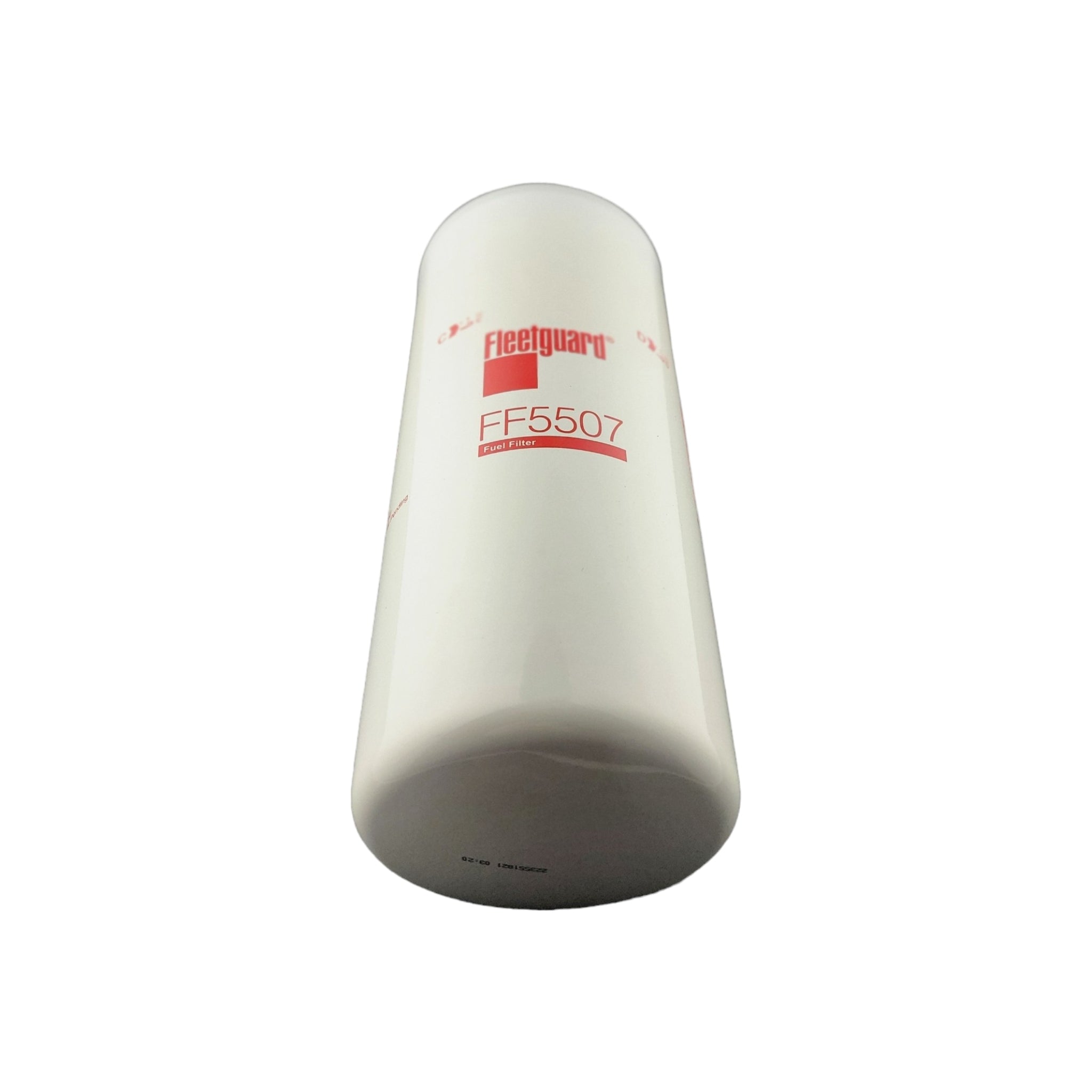

Fleetguard FF5507 spin-on secondary fuel filter for Volvo D11, D13, D16 and Mack MP7 / MP8 diesel engines. ~4-micron rating sized to protect high-pressure unit-injector and common-rail fuel systems on EPA07/EPA10 Volvo and Mack power. Replaces Volvo / Mack 20430751, Baldwin BF7814, and Donaldson P550529 — the standard service element for Volvo VNL/VNM/VHD and Mack Pinnacle/Granite trucks running these engine families.
Specifications
| Manufacturer | Fleetguard (Cummins Filtration) |
|---|---|
| Part Number | FF5507 |
| Part Type | Fuel Filter (Secondary, Spin-On) |
| Engine Compatibility | Volvo D11, D13, D16; Mack MP7, MP8 |
| Micron Rating | ~4 micron |
| Thread Size | M32 × 1.5-6H |
| Outer Diameter | 4.45 in (113 mm) |
| Height | 10.0 in (254 mm) |
| Gasket OD / ID | 104 mm / 93 mm |
Cross References
This part replaces or is equivalent to the following part numbers:
- Volvo: 20430751
- Mack: 20430751, 20539582, 20972295, 20976005
- Baldwin: BF7814
- Donaldson: P550529
- WIX: 33721
- Luber-Finer: LFF8059
- FRAM: P9626
- Carquest: 86721
Applications
This fuel filter fits the following engines:
- Volvo D11 (EPA07/EPA10)
- Volvo D13 (EPA07/EPA10)
- Volvo D16 (EPA07/EPA10)
- Mack MP7 (EPA07/EPA10)
- Mack MP8 (EPA07/EPA10)
Representative vehicles using these engines:
- Volvo VNL, VNM, VHD (2007-present with D11/D13/D16)
- Mack Pinnacle CHU/CXU (2007-present with MP7/MP8)
- Mack Granite GU (2007-present with MP7/MP8)
Verify engine emissions level and OEM filter callout before ordering — early MP7/MP8 may spec a different secondary element.
