Description

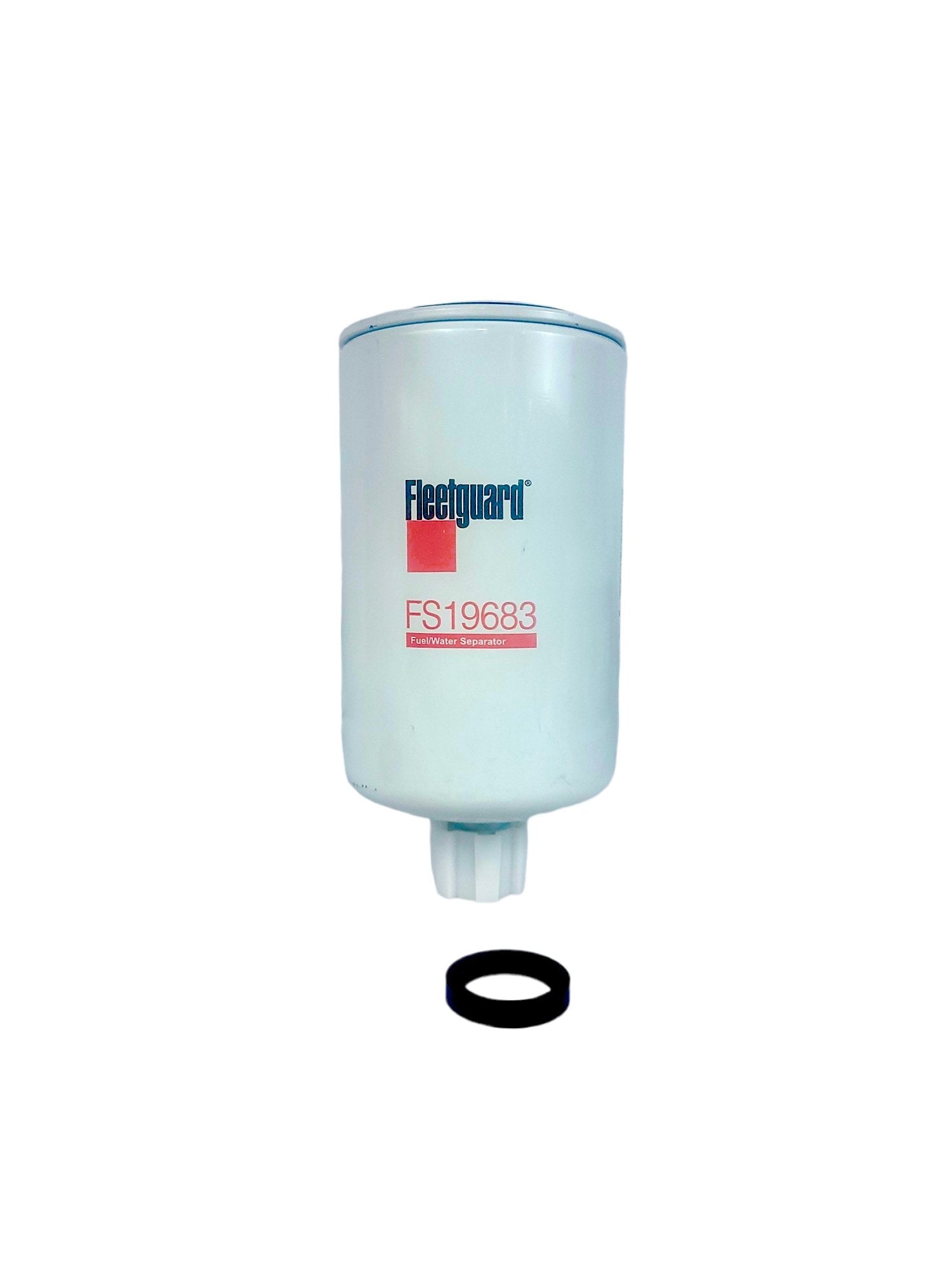

The Fleetguard FS19683 is a 10-micron spin-on fuel/water separator that replaces Caterpillar 175-2949 and Baldwin BF1268 on a wide range of Cat 3100, 3300, 3400, 3500, and C-series engines. Stratapore media delivers up to 95% free water separation and a built-in drain makes routine service quick — fits the standard 1-14 UNS-2B Cat fuel head.
Specifications
| Manufacturer | Fleetguard |
|---|---|
| Part Number | FS19683 |
| Part Type | Spin-on fuel/water separator |
| Micron Rating (SAE J1985) | 10 µm |
| Free Water Separation | 95% |
| Thread | 1-14 UNS-2B |
| Outer Diameter | 3.69 in |
| Length | 7.37 in |
| Gasket OD | 2.83 in |
| Drain | Yes |
Cross References
This part replaces or is equivalent to the following part numbers:
- Caterpillar: 175-2949
- Baldwin: BF1268
- Donaldson: P550847
- WIX: 33005
- NAPA Gold: 3005
- Fram: PS9330
- Luber-finer: LFF8030
- Mack: 3076-PS9330
Applications
This fuel/water separator fits Caterpillar engines that specify the 175-2949 element, including:
- Cat 3116, 3126, 3176, 3176B
- Cat 3304, 3306, 3306B
- Cat 3406B, 3406C, 3406E, 3408, 3412
- Cat 3508, 3512, 3516 industrial
- Cat C7, C9, C10, C12, C13, C15, C16, C18
Representative platforms with these engines:
- Cat on-highway trucks with 3406E / C13 / C15 power
- Cat off-highway and industrial machines using 3300 / 3400 / 3500-series engines
- Cat marine and genset packages with C-series engines
Verify the filter callout in your engine parts manual before ordering — Cat uses several similar spin-on separators with different micron ratings on the same fuel head.
