Description

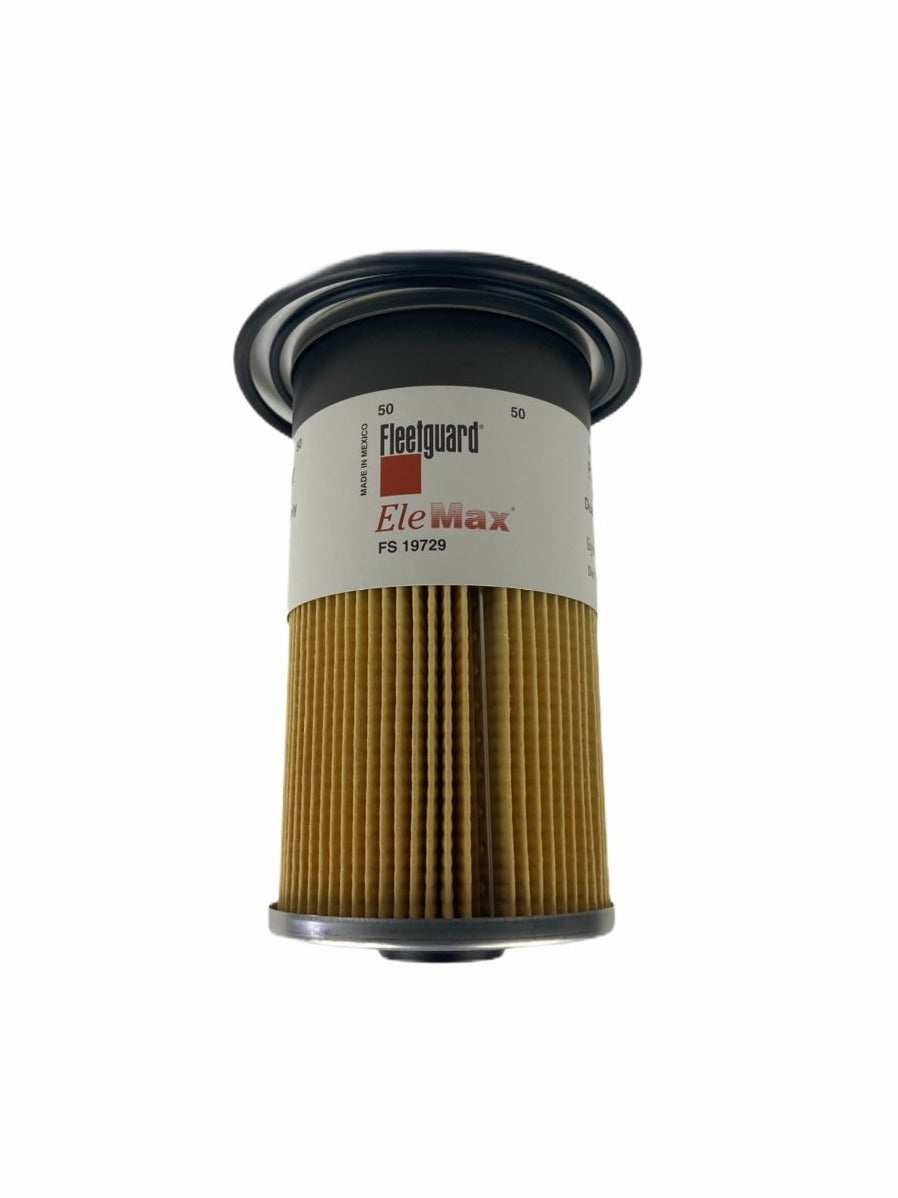

The Fleetguard FS19729 is a fuel water separator cartridge element for Davco 382-series fuel filtration housings – including Fuel Pro FH230 and Diesel Pro FH233 modules with the standard pre-2008 cover. It uses StrataPore EleMax media rated at 50 microns absolute (SAE J1985) with 98.7% efficiency at 150 GPH and 95% free-water separation. Replaces Volvo 85114063 and is found on Class 8 trucks running Cummins ISX, Volvo D13, and Mack MP8 engines.
Specifications
| Manufacturer | Fleetguard (Cummins Filtration) |
|---|---|
| Part Number | FS19729 |
| Part Type | Fuel Water Separator Element |
| Filter Media | StrataPore / EleMax |
| Micron Rating | 50 micron absolute (SAE J1985) |
| Efficiency | 98.7% at 150 GPH |
| Free Water Separation | 95% |
| Outer Diameter | 3.82 in (97.0 mm) |
| Overall Height | 7.04 in (178.8 mm) |
| Cover Size | Standard (pre-2008) |
| Gasket Part Number | 3901456 |
Cross References
This filter replaces or is equivalent to the following part numbers:
- Volvo: 85114063, 21737499
- Mack: 21P550737
- International: 2586814C1
- Baldwin: PF7755
- Donaldson: P550737
- Wix: 33657
- NAPA: 3657
- Luber-Finer: L9729F, L9729FXL
- Hastings: FF1156
- Carquest: 86657
- Purolator: F65982
Applications
This fuel water separator fits the following engines:
- Cummins ISX, 15L (2002-2017, with Davco 382 standard-cover housing)
- Cummins ISM, 11L (2002-2010)
- Volvo D11, D13, D16 (2007-2018)
- Mack MP7, MP8 (2007-2018)
Representative vehicles using these engines:
- Volvo VNL, VNM, VNX, VHD (2002-2018 with Davco standard cover)
- Mack Pinnacle, Granite, Anthem (2007-2018)
- International ProStar, LoneStar, WorkStar with Davco (2008-2017)
- Freightliner Cascadia, Century, Columbia with Davco (2002-2017)
- Kenworth T680, T880, W900 with Davco (2002-2017)
- Peterbilt 579, 389, 567 with Davco (2002-2017)
Note: For 2008-and-newer trucks with plus-size Davco covers (4.21 in diameter filter), use Fleetguard FS19765 or FS19766 instead.
Verify your Davco housing model and cover size before ordering to confirm fitment.
