Description

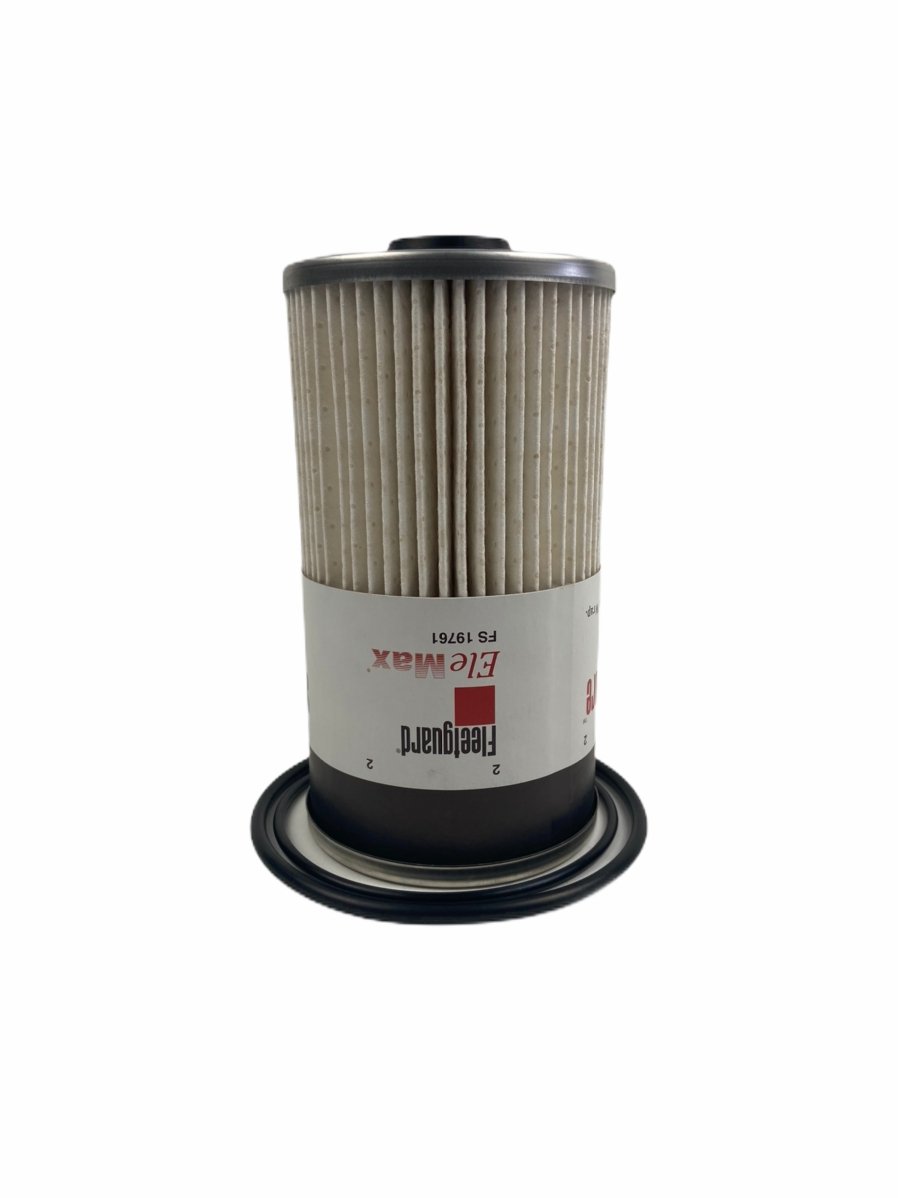

Fleetguard FS19761 cartridge fuel/water separator for Davco Fuel Pro FH230, Diesel Pro FH233, and Davco 382/233 series housings. StrataPore media at 5 micron / 98.7% efficiency (SAE J1985) with 95% emulsified and free water separation. Replaces Baldwin PF7894, Davco 102529 / 382127, Hastings FF1163, and Wix WF10311 — biodiesel compatible.
Signs You Need a New Fuel/Water Separator
- Hard starting or extended cranking
- Power loss or hesitation under load
- Excessive water accumulating in the housing drain
- Fuel-system or injector-related diagnostic codes
- Service interval reached
Specifications
| Manufacturer | Fleetguard (Cummins Filtration) |
|---|---|
| Part Number | FS19761 |
| Part Type | Cartridge Fuel/Water Separator |
| Media | StrataPore |
| Micron Rating | 5 micron (SAE J1985) |
| Efficiency | 98.7% at rated micron |
| Water Separation | 95% emulsified / 95% free |
| Overall Height | 7.04 in (178.79 mm) |
| Outer Diameter | 3.82 in (97.03 mm) |
| Inner Diameter | 0.66 in (16.76 mm) |
| Housing Compatibility | Davco Fuel Pro FH230, Diesel Pro FH233, Davco 382, Davco 233 |
Cross References
This filter replaces or is equivalent to the following part numbers:
- Baldwin: PF7894
- Davco: 102529, 382127
- Hastings: FF1163
- FRAM: CS8744A
- WIX: WF10311
- Luber-Finer: L9721F, L9721FXL
- Carquest: 96512
- HiFi-Filter: SN40650
- Hino: 23304-E0020
Applications
This cartridge fits any chassis equipped with a Davco Fuel Pro FH230, Diesel Pro FH233, or Davco 382/233 series fuel/water separator housing, including:
- Caterpillar C12 and C13 (ACERT and pre-ACERT) on-highway engines
- Hino J08E powered medium-duty trucks (238, 258, 268, 268A, 338, XL7, XL8)
- International / Navistar 7600, WorkStar 7600 (DT 466 / DT 530)
- Freightliner, Kenworth, Peterbilt, and Volvo Class 7–8 trucks specced with Davco fuel filtration
Verify your fuel filter housing model number stamped on the cover before ordering. For extended service intervals on the same housing, see FS19766 (plus-size element).
