Description

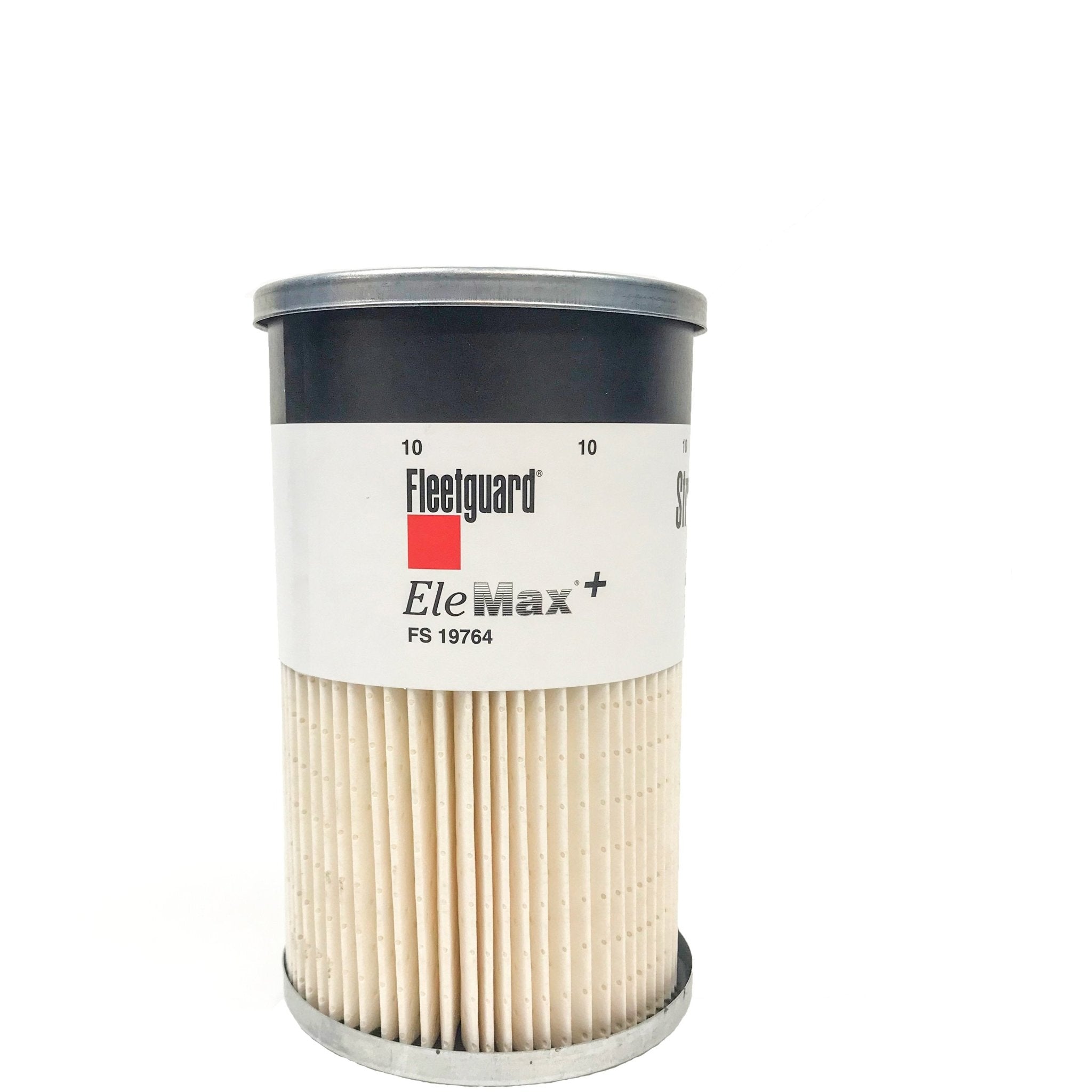

The Fleetguard FS19764 is a 10-micron fuel/water separator cartridge for Davco Fuel Pro 230 and Industrial Pro 234 housings, the plus-size companion to the FS19727. StrataPore coalescing media delivers approximately 95% free-water and emulsified-water separation with 98.7% TWA particulate efficiency, protecting injectors on Cummins, Volvo, Mack, and International heavy-duty diesels.
Specifications
| Manufacturer | Fleetguard (Cummins Filtration) |
|---|---|
| Part Number | FS19764 |
| Part Type | Fuel/Water Separator Cartridge |
| Housing Compatibility | Davco Fuel Pro 230 series; Industrial Pro 234 |
| Filtration Media | StrataPore |
| Micron Rating | 10 micron (SAE J1985) |
| Particulate Efficiency (TWA) | ~98.7% |
| Free Water Separation | ~95% |
| Emulsified Water Separation | ~95% |
| Overall Height | 178.79 mm (7.04 in) |
| Outside Diameter | 106.93 mm (4.21 in) |
Cross References
This cartridge replaces or is equivalent to the following part numbers:
- Baldwin: PF7928, PF9814
- Donaldson: P550850, P179960, P550849
- Wix: 33763, 33964
- NAPA: 3763, 3964
- Davco: 102526, 102527
- Luber-Finer: L9763FXL
- Carquest: 86964
- Fram: CS11023
Applications
This fuel/water separator fits Davco Fuel Pro 230 series and Industrial Pro 234 housings used on:
- Cummins ISX, ISM, ISL heavy-duty engines
- Volvo D11, D13, D16 on-highway engines
- Mack MP7, MP8 engines
- Detroit Series 60 and DD13/DD15 with Davco Fuel Pro retrofits
- International / Navistar heavy-duty engines
Representative vehicles using Davco Fuel Pro 230 / 234 systems:
- Class 8 tractors and vocational trucks with Davco-equipped fuel systems
- Off-highway and industrial equipment with Davco Industrial Pro 234 housings
Confirm your Davco housing model and dimensions before ordering — Fuel Pro 230 and Industrial Pro 234 take FS19764, while smaller Fuel Pro housings take FS19727.
