Description

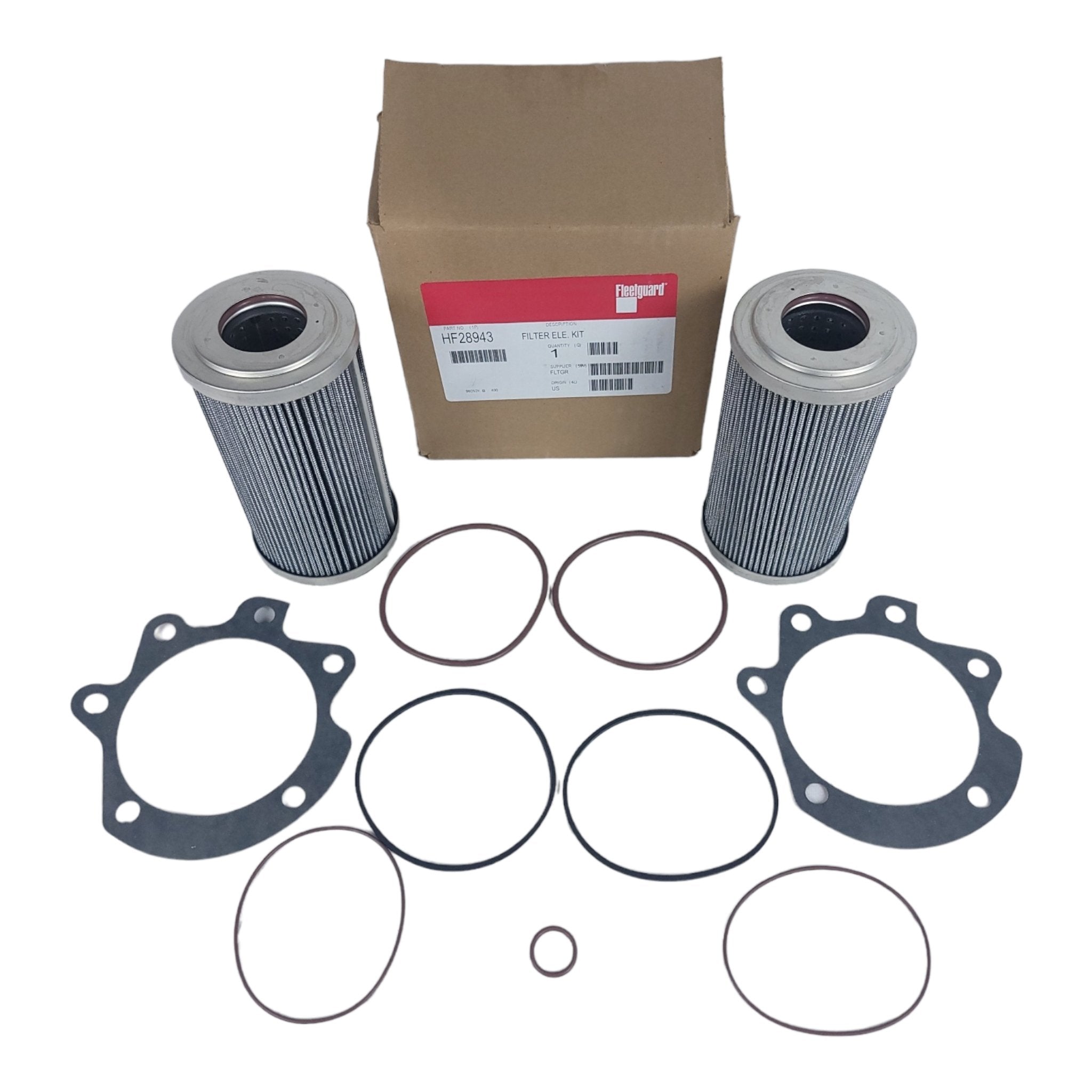

The Fleetguard HF28943 is a transmission filter element kit for Allison 3000 and 4000 series transmissions, replacing Allison 29526898 / 29558329, Baldwin PT9415-MPG, and Donaldson P560971. Genuine Fleetguard OEM kit ships with two filter elements and the gaskets needed to service one transmission, and is approved as a TES 295 / TES 668 service replacement.
Specifications
| Manufacturer | Fleetguard (Cummins Filtration) |
|---|---|
| Part Number | HF28943 |
| Part Type | Transmission Filter Element Kit |
| Application | Allison 3000 / 4000 series |
| Outside Diameter | 3.0 in (76.2 mm) |
| Overall Height | 5.94 in (150.88 mm) |
| End 1 Inside Diameter | 1.53 in (38.86 mm) |
| End 2 Inside Diameter | 1.65 in (41.91 mm) |
| Bypass Valve | None |
| Services | One transmission (kit ships 2 elements + gaskets) |
Kit Includes
- Filter element — main filter (qty 1)
- Filter element — lube filter (qty 1)
- Filter housing gaskets / O-rings (qty as required for one transmission service)
Cross References
This part replaces or is equivalent to the following part numbers:
- Allison: 29526898, 29558329, 29548988, 29506337, 29545779, 29540494, 29558118, 29558295, 29509723
- Donaldson: P560971
- Baldwin: PT9415-MPG, PT9415-KIT
Applications
This filter kit fits the following Allison transmission series:
- Allison 3000 series — 3000 HS / RDS / EVS / SP / TRV / MH (1999–present)
- Allison 4000 series — 4000 HS / RDS / EVS / SP / TRV / MH (1999–present)
Representative vehicles using these transmissions:
- Freightliner M2 106, 108SD, 114SD, Cascadia (medium and heavy duty)
- Kenworth T270, T370, T440, T880 with Allison automatic
- Peterbilt 220, 337, 348, 567 with Allison automatic
- International DuraStar, WorkStar, HX, MV with Allison automatic
- Mack Granite with Allison automatic, refuse and vocational applications
- School and transit buses (Blue Bird, IC Bus, Thomas) with Allison 3000-series
- Motor homes, fire/emergency apparatus, and off-highway equipment
Verify your transmission model and serial range, and confirm that the existing service number is on the cross-reference list above before ordering.
