Description

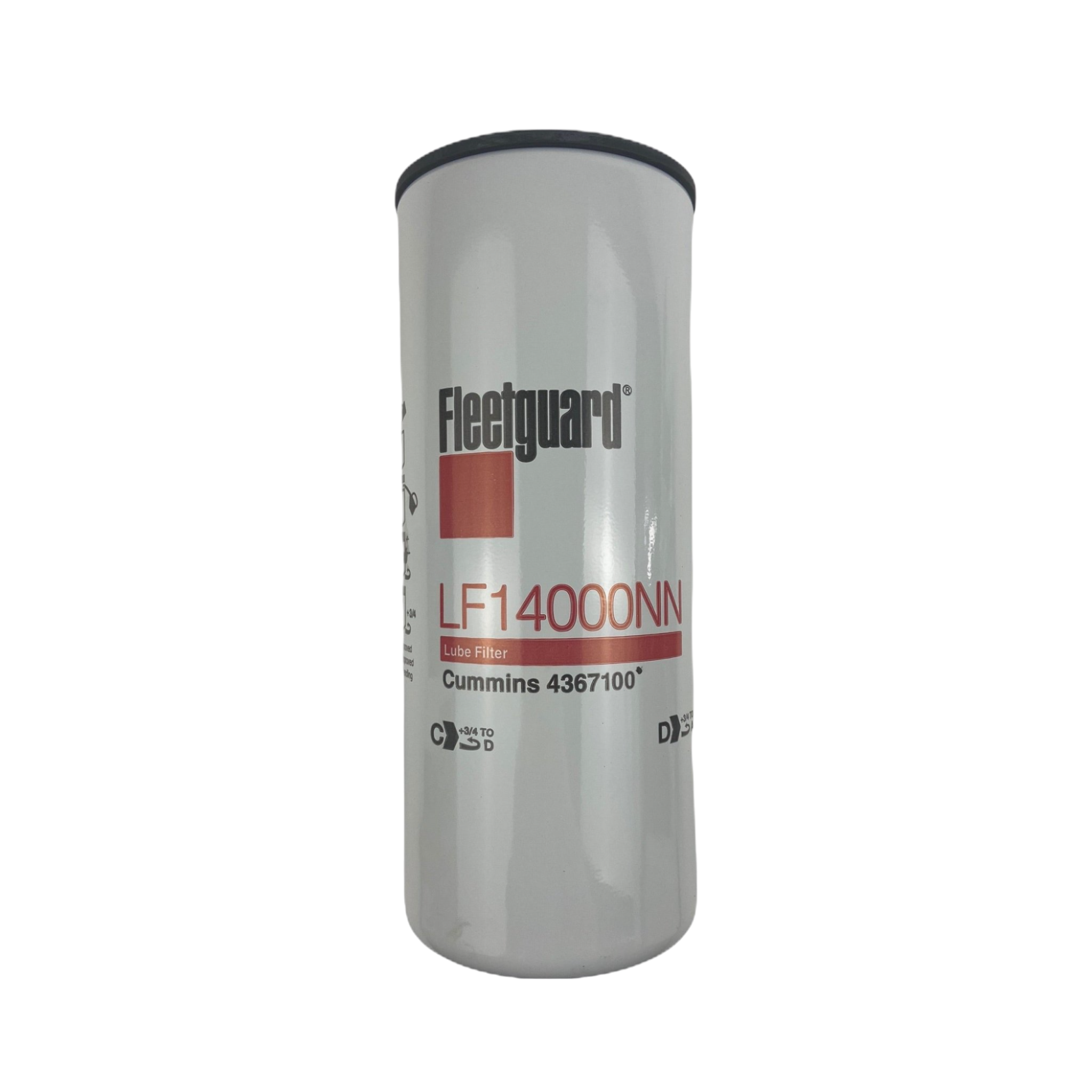

The Fleetguard LF14000NN is the OEM-spec spin-on lube filter for current Cummins X15, ISX15, ISX12, ISM11, M11, QSX15, QSM11, and QST30 engines, supplied by Cummins Filtration. It replaces the legacy LF9080 across the Cummins on-highway and industrial lineup, and uses combined NanoNet® and StrataPore® media to deliver high cold-flow performance, low restriction at startup, and service intervals up to 100,000 miles. Cummins OEM number 4367100.
Specifications
| Manufacturer | Fleetguard (Cummins Filtration) |
|---|---|
| Part Number | LF14000NN |
| Part Type | Spin-On Full-Flow Lube Filter |
| Filter Media | NanoNet® + StrataPore® (dual media) |
| 30 Micron Efficiency | 98.9% |
| 10 Micron Efficiency | 72.3% |
| Rated Flow | 27.74 gal/min (105.0 L/min) |
| Length | 11.60 in (294.69 mm) |
| Largest Outside Diameter | 4.74 in (120.3 mm) |
| Gasket OD | 4.74 in (120.3 mm) |
| Thread Size | M95 × 2.5 |
| Service Interval | Up to 100,000 miles |
Cross References
This part replaces or is equivalent to the following part numbers:
- Cummins: 4367100, 2874490, 2882674, 3101869, 3406809, 4331005
- Fleetguard (legacy): LF9080, LF9001
- Donaldson: P559000, P550949, P559655, P903233, P903234, ELF7900, DBL7900
- Baldwin: BD7154, BK6440, BD50000
- WIX: WL10107, 57746XD
- NAPA: 7746XD, 400107
- Hastings: LF499
- Mahle: OC516
- Mann-Filter: WP12120
- Fram: PH8691, PH8691A
- Luber-finer: LFP9001, LFP9008, LFP9001XL
- Purolator: L65329
- Carquest: 84746, 84746XD
- Case: 87408494, 76612210
- Komatsu: 6216-54-5110
- Hyundai: 11NB7-0110
- Doosan / Daewoo: 474-00034P, 97400034
- Atlas Copco: 5789-9346
- Liebherr: 1033-2314
- Hyster: 1415822
- Hitachi: E1297-9663
Applications
This oil filter fits the following Cummins engine families:
- Cummins X15 (2017+) — Performance and Efficiency Series
- Cummins ISX15 (EPA 2013–2016)
- Cummins ISX12 / ISX12G natural gas (2013–2016)
- Cummins ISM11 (late 1990s–2010)
- Cummins M11 (1990s–early 2000s)
- Cummins QSX15 (industrial / off-highway)
- Cummins QSM11 (industrial)
- Cummins QST30 (industrial)
- Cummins ISZ13 (select markets)
Representative on-highway trucks specified with these engines:
- Freightliner Cascadia, Columbia, Century, Coronado
- Kenworth T680, T880, T800, W900
- Peterbilt 579, 567, 389, 388
- International LT, ProStar, LoneStar, 9900i
- Western Star 4700, 4900, 5700
- Volvo VNL, VNR, VNX (when spec’d with Cummins ISX/X15)
- Mack Pinnacle, Anthem (when spec’d with Cummins ISX/X15)
The LF14000NN is the standard oil filter for current-production Cummins ISX15 and X15 engines and is the direct service replacement wherever the older LF9080 was previously specified.
Verify your engine serial number and configuration before ordering to confirm fitment.
