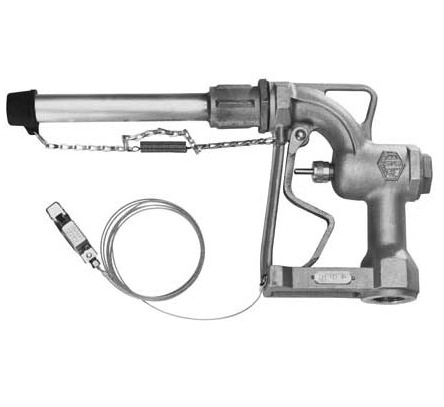

495 Aircraft Nozzles
Standard features include a 100 mesh tube strainer, a dust cap assembly and a 6-1/2″ static discharge ground wire. 1-1/4″quot; and 1-1/2″quot; models have an aluminum discharge tube with a knurled area for hand assembly; the 1″ model has a brass tube standard. Dashpot construction ensures smooth opening, shockproof closure and maximum flow.
Nozzle can be built to military specifications, consult factory for details.
- Patent number 3,285,564.
- WARNING: This is a non-automatic nozzle with a manually operated latch which will not shut-off automatically. Use should be limited to applications sanctioned by OSHA, State Fire Marshal Codes, and other appropriate regulating bodies and/or safety codes.
NOTICE:
This nozzle is for aviation fuel ONLY, and is NOT intended for gasoline or diesel fuels. Use such fuels will void the manufacturer’s warranty.
This nozzle is NOT intended to be used with Teflon tape. Use of Teflon tape will void manufacturer’s warranty. Instead, we recommend using thread sealant.
| Model | Inlet Size | Outlet Size | Weight | |||
|---|---|---|---|---|---|---|
| In. | mm | In. | mm | Lbs. | Kg | |
| 495-400-01 | 1.5 | 38.3 | 1.50 NPT | 38.3 | 6.5 | 3 |
| 495-401-01 | 1.25 | 31.9 | 1.25 NPT | 31.9 | 5.3 | 2.4 |
| 495-402-01 | 1 | 25.5 | 1.25 NPT | 31.9 | 4.15 | 1.9 |
495 Replacement Parts
| Part | 495-400-01 | 495-401-01 | 495-402-01 | 495-404-01 |
|---|---|---|---|---|
| Model | Model | Model | Model | |
| Spout | 495-210-01 | 495-211-01 | 495-112-01 | 495-210-01 |
| Strainer | 495-208-01 | 495-125-01 | 495-204-01 | |
| Dust cap assembly | 495-105-01 | 495-106-01 | 495-111-01 | 495-105-01 |
| Ground wire assembly | 495-107-01 | 495-107-01 | 495-107-01 | 497-107-01 |
| Model | Description |
|---|---|
| 495-120-01 | 1-1/2″quot; aluminum tube and brass strainer assembly |
| 495-120-02 | 1-1/2″quot; tube and strainer assembly, brass |
| 495-122-01 | 1-1/4″quot; aluminum tube and brass strainer assembly |
