Description

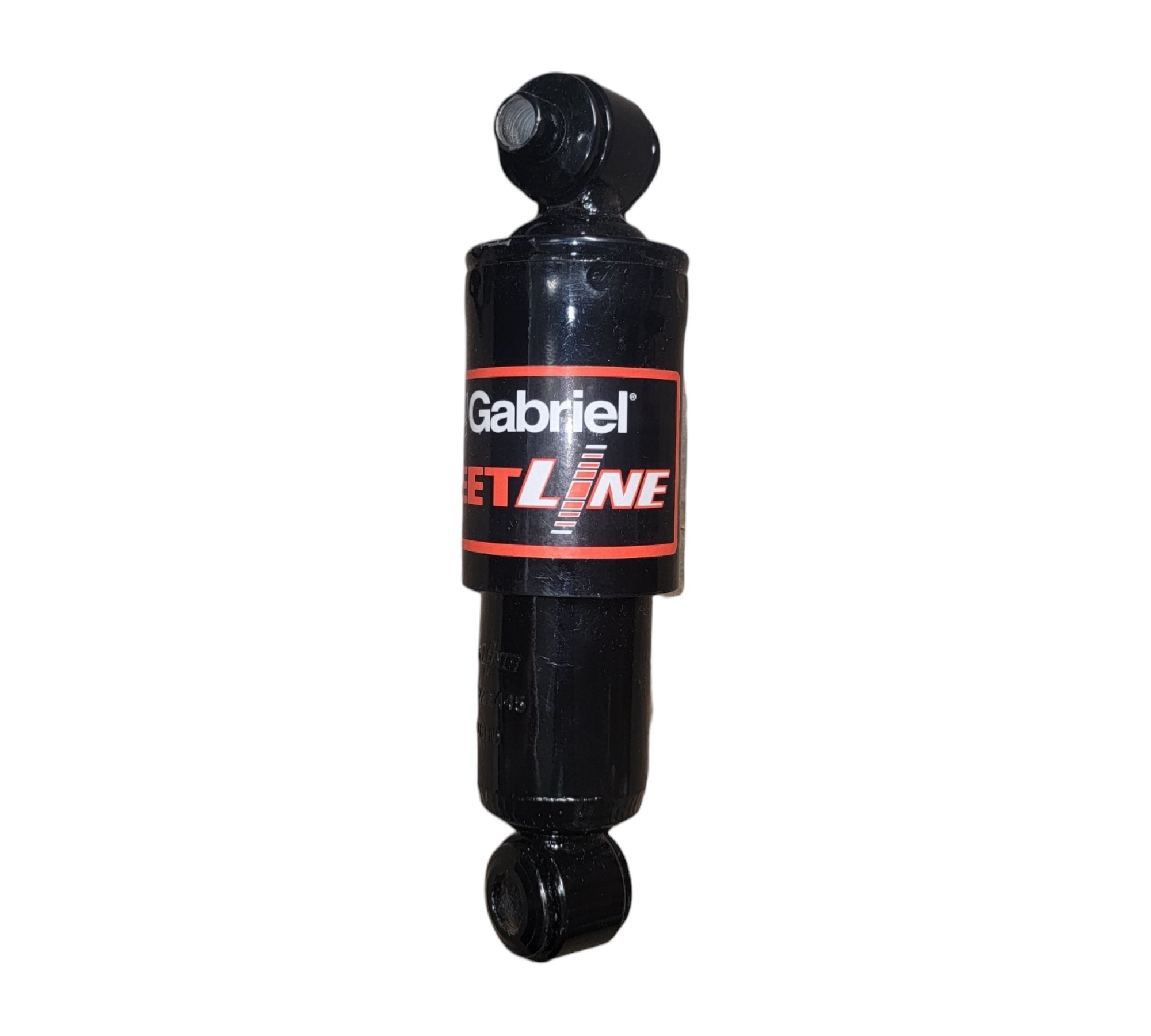

Gabriel 83906 Fleetline heavy-duty cab shock absorber for Freightliner Cascadia, Columbia, Coronado, and 122SD. Direct replacement for Freightliner 18-69674-000 and 18-67845-000 at the cab-mount damper position — controls cab pitch and isolates the sleeper from chassis impulse on air-cab Freightliner conventionals. 10.45 in extended, 8.41 in compressed, 0.59 in rod, 12 mm upper mounting bolt.
Signs You Need a New Cab Shock
- Cab pitches or porpoises after expansion joints and bumps
- Driver-seat shake at highway speed disproportionate to the road
- Visible oil weep on the shock body or dust shield
- Audible knock on cold starts as the cab settles
- Cab corner sits low or noticeably crooked at rest
Specifications
| Manufacturer | Gabriel |
|---|---|
| Part Number | 83906 |
| Part Type | Cab Shock Absorber |
| Product Line | Gabriel Fleetline 83 Heavy-Duty |
| Extended Length | 10.45 in |
| Compressed Length | 8.41 in |
| Body Diameter | 2 in |
| Rod Diameter | 0.59 in |
| Upper Mounting Bolt | 12 mm |
| Compression / Rebound | 1423.4 N / 2606.7 N (max) |
Cross References
This cab shock replaces or is equivalent to the following part numbers:
- Freightliner: 18-69674-000, 18-67845-000, 814903012666, 814903015188
- Gabriel / Automann: 83906, A83906
- FCS: F347344
- PRT: 925093
Applications
This cab shock fits the cab-mount damper on the following Freightliner platforms:
- Freightliner Cascadia (2017–2021, day cab and sleeper)
- Freightliner Cascadia 113 (cab shock with 12 mm top mounting bolt)
- Freightliner Columbia (2017–2020)
- Freightliner Coronado (2017–2020)
- Freightliner 122SD (2017–2023)
Replace cab shocks in pairs (left + right) to keep the cab tracking square. Confirm 12 mm upper mounting bolt and 8.41/10.45 in compressed/extended length before ordering — earlier and later Freightliner cab dampers use different mount geometry.
