Description
Specifications
Dimensions – 97.9mm L x 28.2mm W x 27.2mm H (base), base and input busbar is 48.3mm wide
Maximum Amperage: 500A
Maximum Voltage: 32VDC

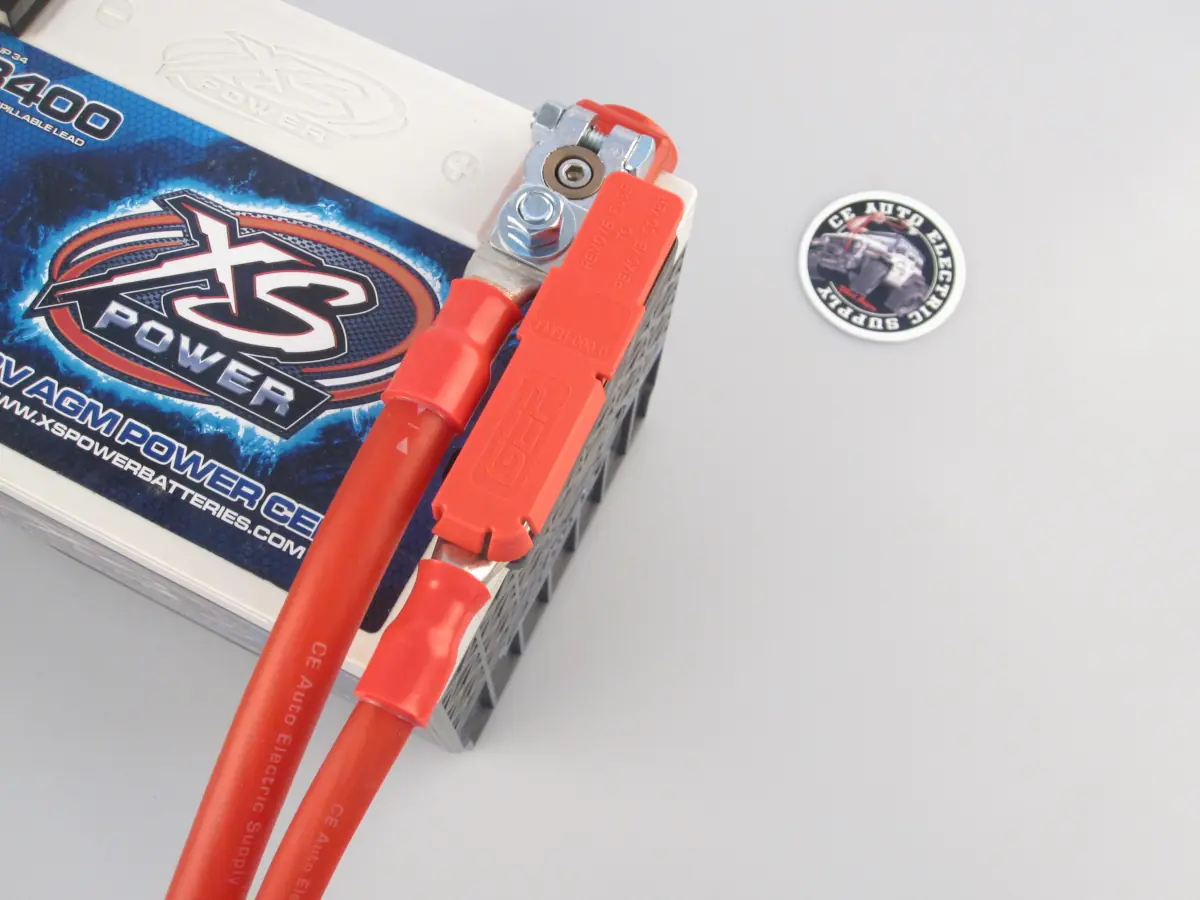

Hole Size for Battery Terminal Attachment: 3/8″ / M10
Stud Size for Cable Attachment: 5/16″ / M8
Recommended Stud Torque: 15 Nm Max
Stud & Nut Material: Stainless Steel
Busbar Material: Tin Plated Copper
Base Material: 40% Glass Filled PPS rated up to 250 degC
Cover Material: PVC, rated up to 105 degC
RoHs and Reach compliant
