Description

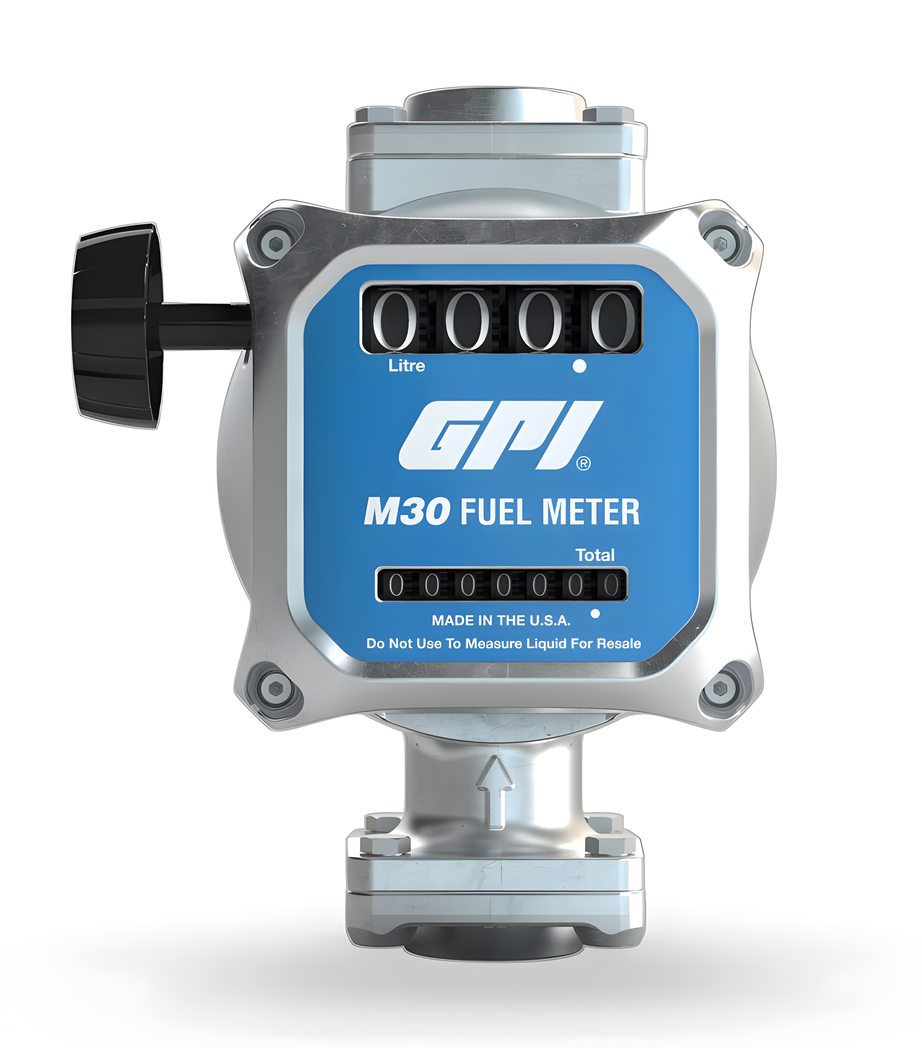

GPI M30 Mechanical Fuel Meter
Manuals and Information:
M30 Data Sheet
M30 Owner’s Manual
This fuel meter is designed, tested and approved for use with thinviscosity petroleum fuels such as gasoline blends (up to E15), dieselfuel blends (up to B20) and kerosene.Please take all due precautions when handling these flammable liquids.
The M30 Mechanical Fuel Meter is designed for the field measurementof thin viscosity petroleum fuels only and intended for use with pumpsystems in the 5 to 30 GPM or 19 to 114 L/m flow range (not intendedfor gravity flow systems). Using mechanical gears, these meterstranslate flow data from a nutating disk into calibrated units which areindicated on the face of the meter. This meter is factory calibrated fordiesel fuel. A field calibration feature is available for other fluids.
Do not use this meter for measuring any fluids other than those forwhich it was designed. To do so may damage the meters componentsand will void the warranty
