Description

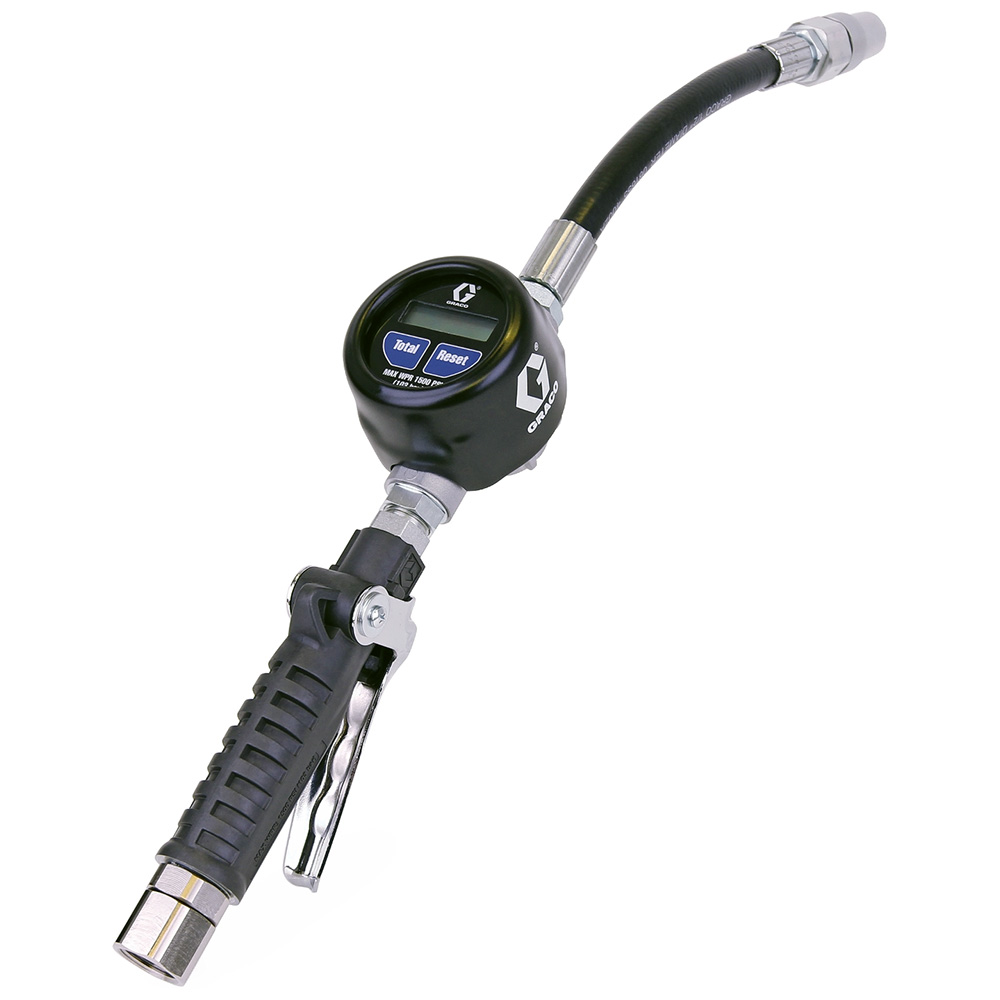

The Graco 25C918 EM20 Valve Meter with flexible extension delivers high-accuracy fluid dispensing up to 20 GPM (75.7 L/min). Designed for technicians and shops handling oil or antifreeze, it’s ideal for fast-paced service bays and heavy-duty fleets.
Its sealed, IP69K-rated electronics withstand pressure washing and dust. The twist-close nozzle prevents drips, while the lock-off trigger adds safety. Oval gear technology ensures reliable metering with ±0.5% accuracy. Backed by Graco’s 5-year warranty, this meter stands up to tough daily use.
Features & Specifications
- Flow rate: up to 20 GPM (75.7 L/min)
- Oval gear metering with ±0.5% accuracy
- Factory calibrated and CE approved
- Flexible extension with twist-close nozzle
- Locking trigger for secure operation
- Measures in quarts, gallons, pints, and liters
- Sealed IP69K electronics resist dust and washdown
- Maximum pressure: 1500 PSI (102 bar)
- Temperature range: -22°F to 180°F (-30°C to 82°C)
- LCD display with max totalizer: 19,999 units
- Long-lasting AAA battery power
- Inlet: 3/4″ NPT Female | Outlet: 7/8″ Female
- Includes: nozzle and flexible extension
- Meter weight: 3.1 lb (1.39 kg)
- Warranty: 5 years
- Part Number: 25C918
